Pneumatic Festo Push-In L-Fitting QSL-G1/4-10 186122 GTIN4052568039295

Price Negotiable
Price: EXW USD3-4
MOQ: 1 PCS
Delivery Time: 7-10 working days
Brand: FESTO
Product Description

Festo Push-in L-fitting QSL-G1/4-10 186122 GTIN4052568039295

About product

Type of seal on screw-in stud:Sealing ring

Nominal size:8 mm

Mounting position:optional

Design:Push-pull principle

Pneumatic connection, port 1:Male thread G1/4

Pneumatic connection, port 2:For tubing outside diameter of 10 mm



 Product Technical Data

Size Standard
Nominal size 8 mm
Type of seal on screw-in stud Sealing ring
Mounting position optional
Size of pack 10
Design Push-pull principle
Note on operating and pilot medium Lubricated operation possible
Corrosion resistance class CRC 1 - Low corrosion stress
LABS (PWIS) conformity VDMA24364-B1/B2-L
Ambient temperature -10°C-80°C
Nominal torque 9 Nm
Product weight 26 g
Pneumatic connection, port 1 Male thread G1/4
Pneumatic connection, port 2 For tubing outside diameter of 10 mm
Colour of release ring Blue
Note on materials RoHS-compliant
Material housing PBT
Material release ring POM
Material tubing seal NBR
Material tubing clamp component High-alloy stainless steel

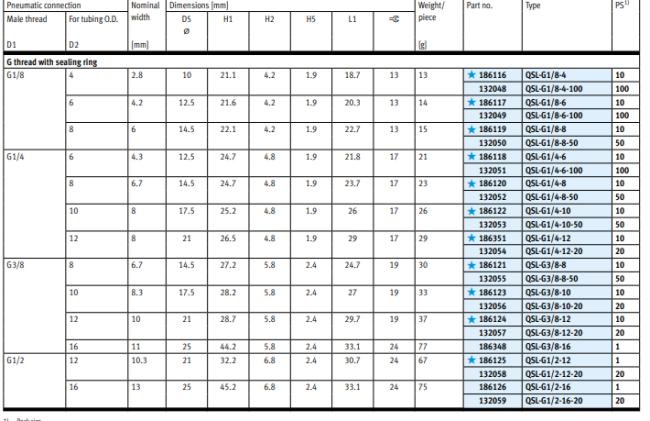

Dimensions and ordering data

There are so many models.Welcome to enquiry and contact with me.Wait for you!



Competitive Advantage
Our product features: Our Services Guarantee:
1) Competitive price 1) Prompt respond (Reply with 24 hours)
2) Good quality 2) Free Samples (Customer pay for the delivery cost)
3) Professional Packaging, 3) Registration support.
4) Produce according to Customers’ instruction 4) Photos/videos are available during production.
5) None delay shipment
5) Loading inspection, and send loading photos before shipment.
