Festo Proximity Sensor SME-8-K-7 5-LED-24 530491 GTIN4052568085797
Price:
EXW USD50-60
MOQ:
1pc
Delivery Time:
7-10working days
Brand:
FESTO
Product Description
FESTO Proximity sensor SME-8-K-7,5-LED-24 530491 GTIN4052568085797
About product
Conforms to standard:EN 60947-5-2
Ambient temperature: -40°C-70°C
Max. switching frequency:800 Hz
Max. output current:500 mA
Cable length:7.5 m
Cable sheath colour:Grey
Technical Data
| Design | For T-slot |
| Conforms to standard | EN 60947-5-2 |
| Symbol | 00991620 |
| Approval | RCM trademark |
| Note on materials | RoHS-compliant |
| Measured variable | Position |
| Measuring principle | Magnetic reed |
| Ambient temperature | -40°C-70°C |
| Switching element function | N/O contact |
| Max. switching frequency | 800 Hz |
| Max. output current | 500 mA |
| Overload protection | Not available |
| Cable length | 7.5 m |
| Cable sheath colour | grey |
| Material cable sheath | TPE-U(PUR) |
| Type of mounting | Clamped in T-slot Insertable in the slot lengthwise |
| Product weight | 85 g |
| Housing colour | Black |
| Material housing | Epoxy resin PC PET High-alloy stainless steel |
| Switching status indication | Yellow LED |
| Ambient temperature with moving cable | -5°C-70°C |
| Degree of protection | IP65 IP67 |
| Insulation voltage | 50 V |
| LABS (PWIS) conformity | VDMA24364-B2-L |

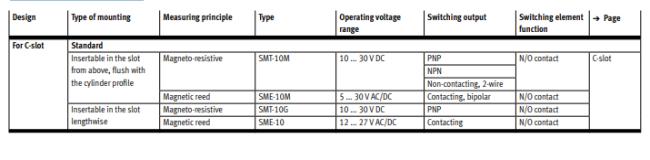

Product range overview
There are many models . Please contact me!
