FESTO On / Off Valve MS6-EM1-1/2-S 541268 Pneumatic Manual Valve
FESTO On/off valve MS6-EM1-1/2-S 541268 Pneumatic Manual Valve
About product
application-specific combinations or complete turnkey solutions.
The five sizes in the MS series achieve maximum flow rates with low space requirements.
Many of the components are also UL and ATEX certified.
With its large product range, highly effective components and a wide choice of functions, the MS series from Festo offers a complete concept for compressed air preparation.
It is suitable for simple standard applications as well as application-specific solutions with very high quality requirements.
Convenient tools for planning and selecting application-specific individual devices and combinations.
Technical Data
| Design | Rotary gate valve |
| Type of actuation | Manual |
| Exhaust-air function | Without flow control option |
| Type of piloting | Direct |
| Symbol | 00991670 |
| Valve function | 3/2 double solenoid |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| Note on materials | RoHS-compliant |
| Product weight | 655 g |
| Pneumatic connection, port 1 | G1/2 |
| Pneumatic connection, port 2 | G1/2 |
| Material seals | TPE-U(PU) |
| Material housing | Die-cast aluminium |

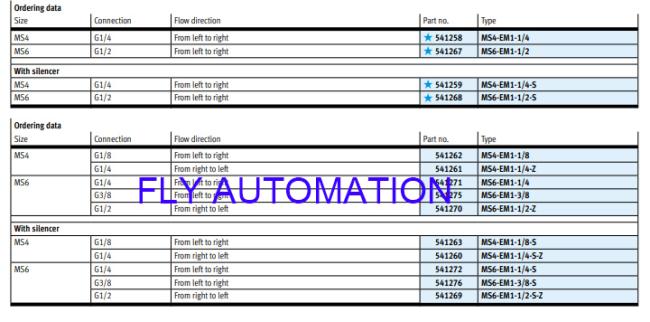

Ordering data
There are many specifications and models, welcome to enquire!
