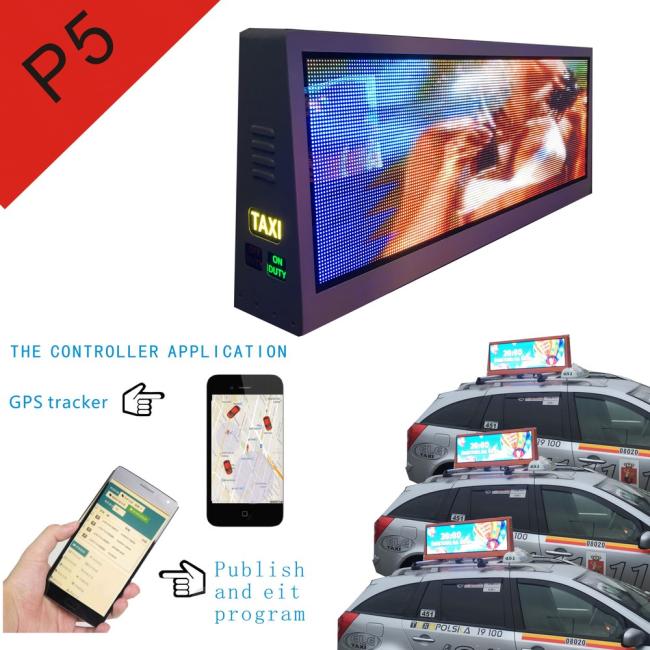

RGB p5mm taxi cab roof signs , 1/8 scanning taxi top advertising signs 400w / m2
RGB p5mm taxi cab roof signs , 1/8 scanning taxi top advertising signs 400w / m2
| Numbers | Technical indexes | P5 Car roof LED Video Screen |
| 1 | Pixel pitch | 5mm |
| 2 | Module size | 160mm× 160mm |
| 3 | Module resolution | 32× 32 |
| 4 | Module density | 40, 000dots/sqm |
| 5 | Pixel configuration | RGB ( SMD 3 in 1 ) |
| 6 | Red wavelength | 625± 2nm |
| 7 | Green wavelength | 525± 2nm |
| 8 | Blue wavelength | 470± 2nm |
| 9 | Colors | 16777216 |
| 10 | Best viewing distance | more than 5 m |
| 11 | Horizontal viewing angle | 140° |
| 12 | Vertical viewing angle | 90° |
| 13 | Maximum power consumption | ≤ 1200W/m2 |
| 14 | Brightness | ≥ 3000cd/m2 |
| 15 | Gray scale | 16bits of per color |
| 16 | Color temperature | 6500K |
| 17 | Control method | Asynchronization with 3G |
| 18 | Driving method | 1/8 scanning |
| 19 | Frame frequency | 60Hz |
| 20 | Refresh frequency | ≥ 2000 Hz |
| 21 | Working voltage | AC220V/110V± 10% |
| 22 | IP grade | IP65 |
| 23 | Working temperature | -20° C~80° C |
| 24 | MTBF | More than 10, 000 hours |
| 25 | Life span | More than 100, 000hours |
Competitive Advantage:
Warranty:
We guarantee all our displays, modules, parts for two full years. During this time, we will replace or amend all our goods for free if there is something wrong with them. We provide lifetime maintenance and charge only for the raw materials. We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory. We also provide the operation manual, software, test report and so on. Any associated CAD drawing on how to fix up the display and some other expert suggestion will be provided.
Technology Training:
1. We provide the technology training for free, which contains the operation training and maintenance training in the factory.
2. We will send our engineers to your country by negotiation.
Documents and Certification:
1. We provide the operation manual, software, test report and so on.
2. We can also provide all kinds of certification such as CE, UL and so on.
CAD Drawing and Fixing:
1. We provide CAD drawing on how to fix up the display for free and some other expert suggestion.
2. We will send our engineers to your place if we are expected after our negotiation.
Additional service:
We provide you the forwarding information, and some other information ,such as flight box, structure information for your reference for free.
