16~50mm Orifice 2/2 Brass Pneumatic Solenoid Valve G1/2"~G2" With Viton Seal
16~50mm Orifice 2/2 Brass Pneumatic Solenoid Valve G1/2"~G2" With Viton Seal
Orifice size 16mm,20mm 25mm,35mm,40mm,50mm 2W Large Aperture body series solenoid valve direct acting body material brass
Quick Detail:
* 2W Series solenoid valve flow aperture size 16mm, 20mm,25mm, 35mm,40mm,50mm
* Two position two way directly acting
* Body material Brass
* Port Size G3/8”,G1/2”,G3/4”,G1”,G1-1/4”,G1-1/2”,G2”
* Seal with NBR,EPDM,VITON For Option
* IP65 Class Coil for option
* Water-Proof coil or explosion-proof available
* Fast respond,low noise,low consumption
* Stable design,long serive life
Applications:
2W series two position two way solenoid acting as on and off switch function automatically for its working system by the involving of power electricity magnetic.
2W series widely use in the Pneumatic,water and oil circuit system to connect through or turn off the serving system.
Specifications:
|
ORDERING CODE |
||||||
|
2W |
160 |
15 |
NC |
S |
E |
AC220V |
|
Type |
Aperture Flow Rate |
Port size |
Initial State |
Coil type |
Seal Material |
Voltage |
|
2W:2W Series Two Position Two Way Solenoid valve |
160:16mm |
10:G3/8" |
NC:Normal Close |
Blank:Round Coil |
Blank:NBR |
DC12V |
|
15:G1/2" |
A:Water-Proof |
|||||
|
200:20mm |
20:G3/4" |
DC24V |
||||
|
250:25mm |
25:G1" |
H:Manual Operator |
E:EPDM(For Steam) |
AC110V |
||
|
350:35mm |
35:G1-1/4" |
NO:Normal Open |
S:Square Coil |
AC220V |
||
|
400:40mm |
40:G1-1/2" |
Z:Explosion-Proof |
V:VITON (For High Temperature and Vacuum) |
AC380V |
||
|
500:50mm |
50:G2" |
AC24V |
||||
|
Model |
2W160-10 |
2W160-15 |
2W200-20 |
2W250-25 |
2W350-35 |
2W400-40 |
2W500-50 |
|
|
Working Medium |
Air,Water,Oil,Gas |
|||||||
|
Motion Pattern |
Direct Drive Type |
|||||||
|
Type |
Normal Close Type |
|||||||
|
Aperture of Flow Rate(mm) |
16 |
20 |
25 |
35 |
40 |
50 |
||
|
CV Value |
4.8 |
7.6 |
12 |
24 |
29 |
48 |
||
|
Joint Pipe Bore |
3/8″ |
1/2″ |
3/4″ |
1″ |
1 1/4″ |
1 1/2″ |
2″ |
|
|
Operation Fluid Viscosity |
20 CST(Below) |
|||||||
|
Working-pressure MPa |
Air:0~0.7MPa; Water:0~0.5MPa; Oil:0~0.5MPa |
|||||||
|
Max. Pressure Resistance MPa |
1 |
|||||||
|
Operating Temperature ℃ |
-5 ~ 80℃ |
|||||||
|
Voltage Range |
±10% |
|||||||
|
Material of Body |
Brass (Material of stainless steel need special explain) |
|||||||
|
Material of Oil Seal |
NBR,EPDM or VITON |
|||||||
|

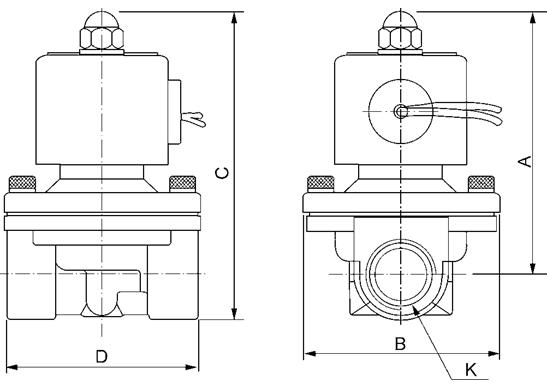

Model No |
A |
B |
C |
D |
K |
|
2W160-10 |
93 |
56 |
106 |
69 |
ZG3/8″ |
|
2W160-15 |
93 |
56 |
106 |
69 |
ZG1/2″ |
|
2W160-20 |
100 |
55 |
117 |
73 |
ZG3/4″ |
|
2W160-25 |
104 |
78 |
125 |
99 |
ZG1″ |
|
2W160-35 |
141 |
93 |
172 |
124 |
ZG1/4″ |
|
2W160-40 |
141 |
93 |
172 |
124 |
ZG1/2″ |
|
2W160-50 |
157 |
124 |
195 |
172 |
ZG2″ |
