AP series Air pump for air over hydraulic jack,air supply pressure 2~6Mpa,bore size 70mm,80m.Port size 1/4”,3/8”,1/2” G,PT,NPT thread,e.g AP1001.
Quick Detail:
* AP Series air pump for air over hydraulic jack
* Aluminum alloy body material
* Bore size 70mm,80mm
* Stroke according to requirement
* Mickey mouse barrel,round barrel with tie-rod for option
* Air supply pressure 2~6Mpa
* Port size 1/4”,3/8”,1/2” G,NPT for option
* Working termperature:0~60℃
Applications:
AP series air pump designed for application in the air over hydraulic jack
Specifications:
1,Body material:Aluminum alloy
2,Bore size:70mm,80mm
3,Port size: 1/4”,3/8”,1/2”
4,Working temperature:0~60℃
5,Air supply pressure range:2~6Mpa

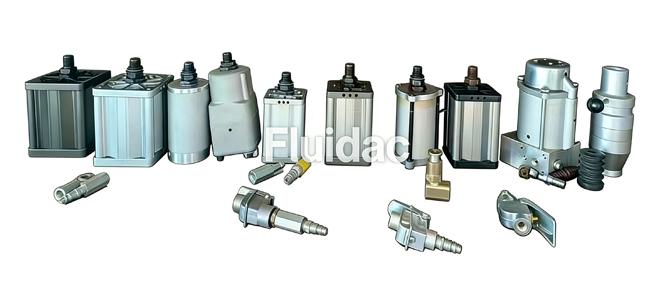

AP1001 Bore size 70mm,Mickey mouse barrel air pump
AP1002 Bore size 70mm,Round barrel with tie-rod air pump
AP1003 Bore size 70mm air change pump
AP1004 Bore size 80mm round barrel air pump
| S.r. | Parts Code | Parts Name | S.r. | Parts Code | Parts Name | ||
| 1 | AP1003-1 | Plunger Sleeve | 15 | AP1003-13 | Muffler | ||
| 2 | AP1003-2 | Thread Sealing | 16 | AP1003-14 | Muffler Element | ||
| 3 | AP1003-3 | Gland | 17 | GB70-85 | Hexagon socket bolt M5*16 | ||
| 4 | AP1003-4 | Adjusting Nut | 18 | GB859-87 | Spring Gasket ￠5 | ||
| 5 | AP1003-5 | Lower Cover | 19 | AP1003-15 | Air Cylinder Seal | ||
| 6 | AP1003-6 | Pump Body | 20 | GB3452.1-82 | O-Ring 24*5.75 | ||
| 7 | D2 6*12*5 | Shaft Y Sealing | 21 | AP1003-16 | Air Bleed Piston | ||
| 8 | AP1003-7 | Circlip | 22 | AP1003-17 | Air Valve Cover | ||
| 9 | AP1003-8 | Guide Ring | 23 | AP1003-18 | Guide PTFE Ring | ||
| 10 | AP1003-9 | Outer liner nut | 24 | GB3452.1-82 | O-Ring 60*3.55 | ||
| 11 | AP1003-10 | Spring | 25 | AP1003-19 | Piston | ||
| 12 | AP1003-11 | Plunger | 26 | GB70-85 | Hexagon socket bolt M6*16 | ||
| 13 | AP1003-12 | Baffle Plate | 27 | GB859-87 | Spring Gasket ￠6 | ||
| 14 | GB308-84 | Steel Ball ￠3.5 | |||||
