TN Double Shaft Pneumatic Gas Cylinder 10mm - 32mm For Pneumatic Automation System
TN Double Shaft Pneumatic Gas Cylinder 10mm - 32mm For Pneumatic Automation System
Airtac type TN double shaft double acting Pneumatic air cylinder Bore size 10mm-32mm e.g. TN20-50-S with magnet and Guided rod plate
Quick Detail:
* TN Double rod air cylinder with Guided rod plate airtac interchange.
* High precision make sure linear moving excellently
* Good performance in distortion-resistance, twisting-resistance
* With slot on cylinder for mounting sensors
* Design to bear side load performance
* Multi-position mounting hole easily for installation.
* With magnet and rubber cushion
* Piston rod #45(ASTM-1045) steel chrome-plated
* Stainless steel piston rod is available
* With self-lubricating bearing,lubrication free
* Bore size 10mm,16mm,20mm,25mm,32mm,40mm
Specifications:
|
ORDERING CODE |
|||
|
TN |
20 |
50 |
S |
|
TN:Double shaft standard |
Bore Size |
Stroke |
S:With Magnet |
|
10:10mm |
|||
|
16:16mm |
|||
|
20:20mm |
|||
|
25:25mm |
|||
|
32:32mm |
|||
|
SPECIFICATION |
|||||
|
Bore size(mm) |
10 |
16 |
20 |
25 |
32 |
|
working Medium |
Filtered compressed air |
||||
|
Motion Pattern |
Double action |
||||
|
Pressure Endurance |
1.5MPa |
||||
|
Operating pressure range |
0.1~1.0MPa |
||||
|
Ambient Temperature |
-5~70ºC |
||||
|
Buffer cushioning |
NONE |
Rubber buffer |
|||
|
Operating Speed |
100~500mm/s |
||||
|
Adjustable stroke |
-10~0mm |
||||
|
None-Rotation Precision |
0.4º |
0.3º |
|||
|
Port size |
M5X0.8 |
G1/8 |
|||
|

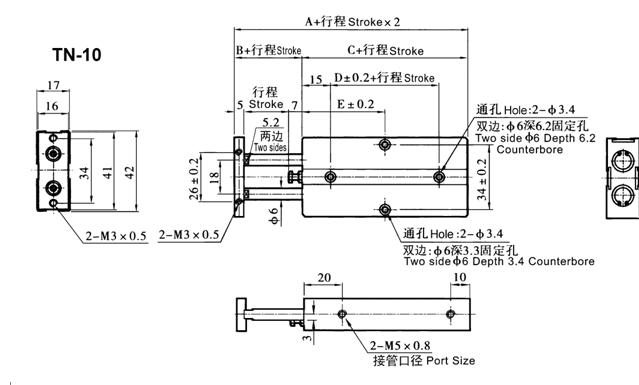

Bore size |
A |
B |
C |
D |
E |
|
|||||||||||
|
10 |
20 |
30 |
40 |
50 |
60 |
70 |
|
||||||||||
|
10 |
63 |
12 |
51 |
10 |
30 |
30 |
35 |
40 |
45 |
50 |
55 |
|
|||||
|
Bore size |
A |
B |
C |
D |
E |
F |
|||||||||||
|
10 |
20 |
30 |
40 |
50 |
60 |
70 |
80 |
90 |
100 |
125 |
150 |
||||||
|
16 |
68 |
15 |
53 |
20 |
30 |
35 |
40 |
45 |
50 |
55 |
60 |
65 |
70 |
75 |
87.5 |
100 |
8 |
|
20 |
78 |
20 |
58 |
20 |
35 |
35 |
40 |
45 |
50 |
55 |
60 |
65 |
70 |
75 |
87.5 |
100 |
10 |
|
25 |
81 |
19 |
62 |
30 |
40 |
40 |
45 |
50 |
55 |
60 |
65 |
70 |
75 |
80 |
92.5 |
105 |
10 |
|

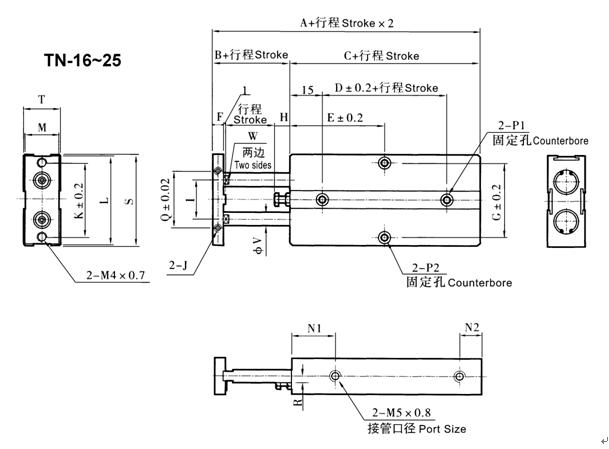

Bore size |
J |
K |
L |
M |
N1 |
N2 |
P1 |
P2 |
Q |
R |
S |
T |
V |
W |
G |
H |
I |
|
16 |
M4×0.7dp 5 |
47 |
53 |
20 |
22 |
11 |
(Both sides):φ7.5(dp) 7.2mm |
(Both sides):φ8(dp) 4.4mm |
34 |
3 |
54 |
21 |
8 |
6.1 |
47 |
6 |
24 |
|
(Thru.hole): φ4.5 |
(Thru.hole): φ4.5 |
||||||||||||||||
|
20 |
M4×0.7/dp 5 |
55 |
61 |
24 |
25 |
12 |
(Both sides):φ7.5(dp) 7.2mm |
(Both sides):φ8(dp) 4.4mm |
44 |
3.5 |
62 |
25 |
10 |
8.1 |
55
|
9 |
28 |
|
(Thru.hole): φ4.5 |
(Thru.hole): φ4.5 |
||||||||||||||||
|
25 |
M4×0.7/dp 6 |
66 |
72 |
29 |
27 |
12 |
(Both sides):φ7.5(dp) 7.2mm |
(Both sides):φ8(dp) 4.4mm |
56 |
7 |
73 |
30 |
12 |
10.2 |
66 |
8 |
34 |
|
(Thru.hole): φ4.5 |
(Thru.hole): φ4.5 |
||||||||||||||||
|
Bore size |
A |
B |
C |
D |
E
|
||||||||||||
|
10 |
10 |
30 |
40 |
50 |
60 |
70 |
80 |
90 |
100 |
125 |
150
|
||||||
|
32 |
108 |
30 |
78 |
35 |
45 |
10 |
55 |
60 |
65 |
70 |
75 |
80 |
85 |
90 |
103 |
115
|
|
