2/2 and 3/2 Direct Acting Brass Solenoid Valve 1.5mm G1/8" For Coffee Maker

Orifice size 0.9mm,1mm,1.2mm,1.3mm,1.5mm,1.8mm,2mm,2.5mm,3mm, 3.5mm, 4mm two position three way or two position two way solenoid valve direct acting for coffee maker machine Electric Steam Iron,Steam Generator port size G1/8” or hosebib connecting e.g CMV-3

Quick Detail:

* CMV series Italy type solenoid valve for coffee maker machine and electric iron

 * DN0.9mm,1mm,1.2mm,1.5mm,1.8mm,2mm,2.5mm,3mm,4mm

* Two position three way or two position two way direct acting type

* Body material brass or Reinforce plastic

* Port Size G1/8” or hosebib connection

* Miniature body design,small volume,easy for operating

* Seal NBR,EPDM,VITON for option

* Fast respond,low noise,low consumption

* Stable design,long serive life

Applications:

CMV seires solenoid valve used as directional control component to change the direction of working medium to drive a executor component normally a cylinder to realize a cycle motion

CMV series solenoid valve use especially for Steam generator,Steam iron,Coffee maker machine, Steam cleaner for controlling water inlet,outlet and pressure exhausting for easily system control

Specifications:

1. Installation to prevent small particles into the interface
2. Installation location does not recommend coil downward position

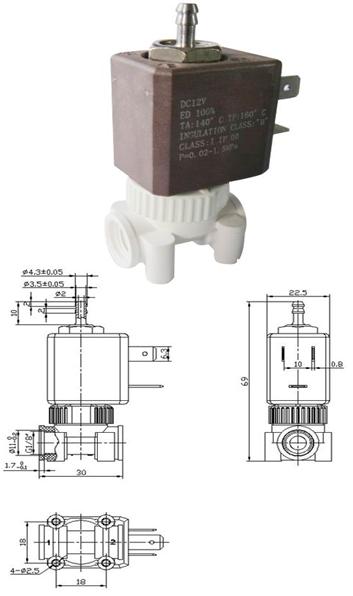

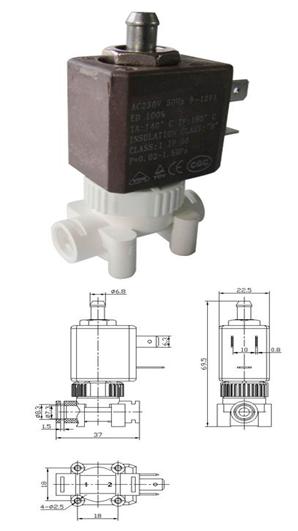

CMV-3F

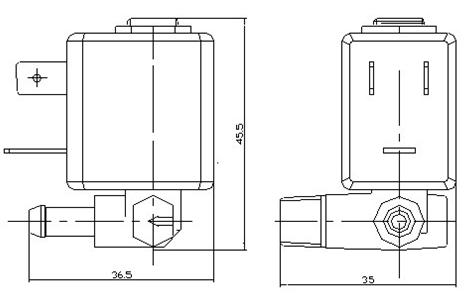

CMV-3F4

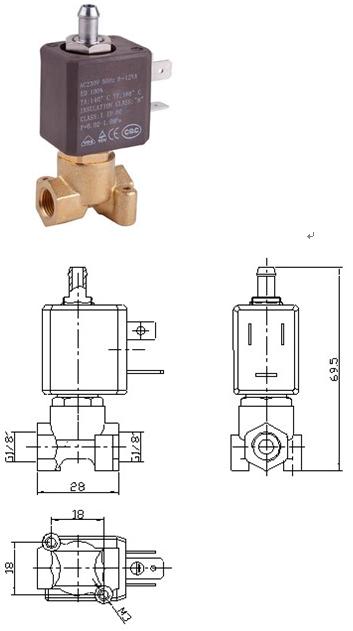

CMV-3F1

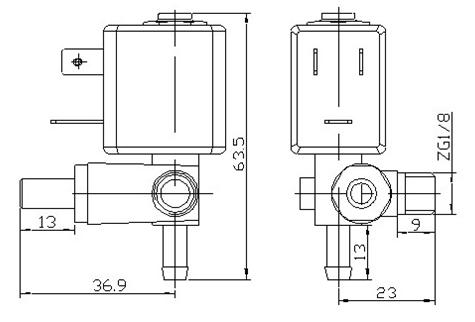

CMV-F2

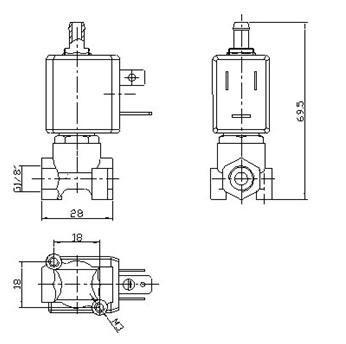

CMV-F3

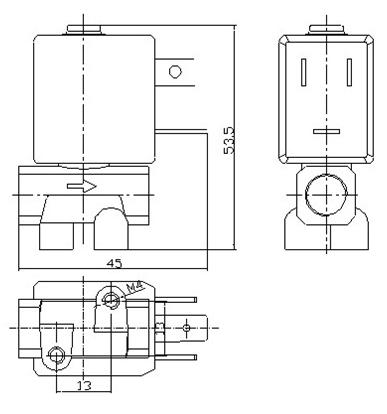

CMV-3

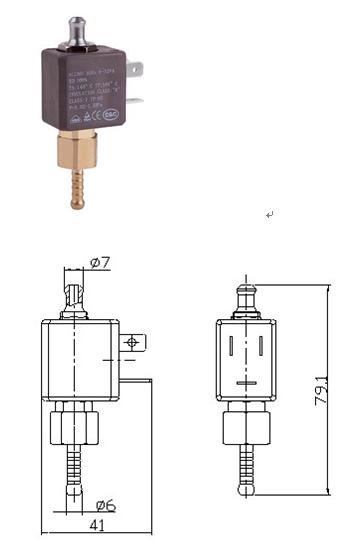

CM-3C1

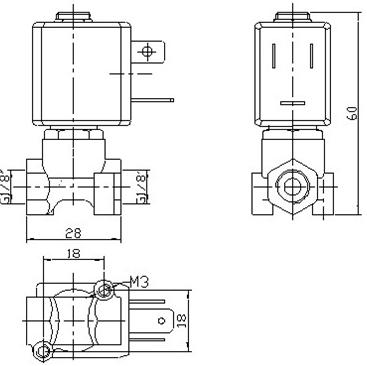

CMV-3E

CM-3M
