Aluminum 5-Way Solenoid Operated Directional Control Valve G1/8" - G1/2"
Aluminum 5-Way Solenoid Operated Directional Control Valve G1/8" - G1/2"
25mm,30mm,35mm body width Herion type solenoid valve 3/2,4/2,5/2 Port size G1/8~G1/2 e.g 2636000,2630600,2637050,8020750,8020850
Quick Detail:
* 2630,263,802 series solenoid valve Herion Interchangeable
* Aluminum material Body width 25mm,30mm,35mm
* Pilot Operated,Inner Pilot type
* Two Position Three Way,Two Position Five Way,Two Position Four way available
* Pipe joint and Namur joint type for option
* Din connector and outlead wire electricity connecting for selectable
* High quality pilot armature ensure rapid and sensitive feedback when connect eletricity
* IP65 class Electromagnetic Induction Coil,low consumption,long service life
* Mature products,cost effectively
Applications:
263,2630,802 series Herion type solenoid valve used as directional control component to change the direction of working medium to drive a executor component normally a cylinder to realize a cycle motion
Specifications:
|
ORDERING CODE |
|||||
|
802 |
0 |
750 |
B |
||
|
Type |
Action type and Initial State |
Aperture Flow |
Joint Pipe Form |
||
|
802:Herion Type Two position Three Way Solenoid Valve |
0:Single Coil Normal Closed |
750:6mm |
Blank:Pipe Joint type |
||
|
1:Double Coil Normal Closed |
850:12mm |
B:Namur Type |
|||
|
2:Normal Open |
|||||
|
2630 |
60 |
0 |
B |
||
|
Type |
Action type |
Exhuasting Form |
Blank:Pipe Joint type |
||
|
2630:Herion type Two Position Four Way Solenoid valve |
60:Single Coil |
0:Direct exhausting |
B:Namur Type |
||
|
70:Double Coil |
1:Underplate Guide exhausting |
||||
|
263 |
6000 |
B |
|
|
|
|
Type |
Action type and Aperture flow |
Joint Pipe Form |
|
||
|
263:Herion type Two Position Five Way Solenoid valve |
6000:Single Coil and 6mm Aperture |
B:Namur Type |
|||
|
6200:Double coil and 6mm Aperture |
|||||
|
7050:Single Coil and 12mm Aperture |
B:Namur Type |
||||
|
7250:Double Coil and 12mm Aperture |
|||||
|

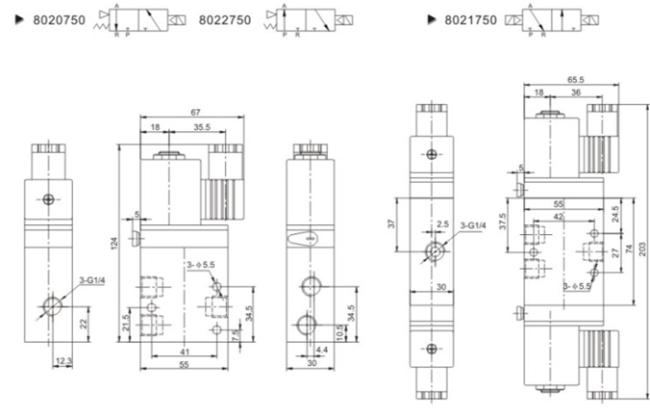

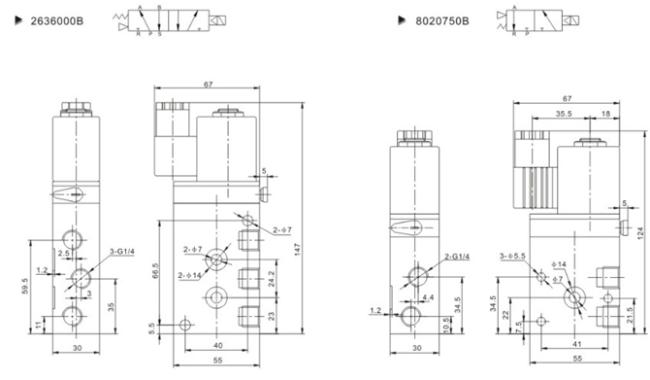

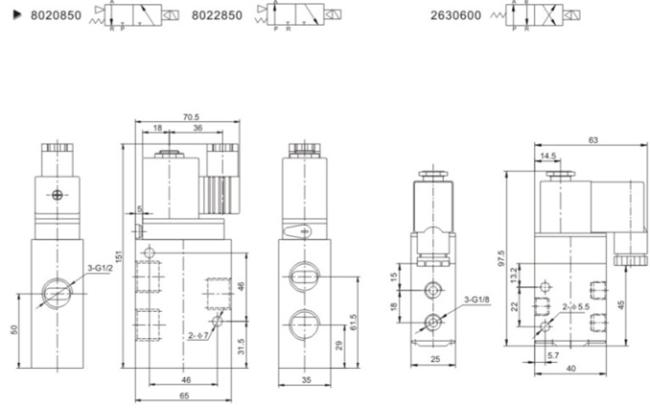

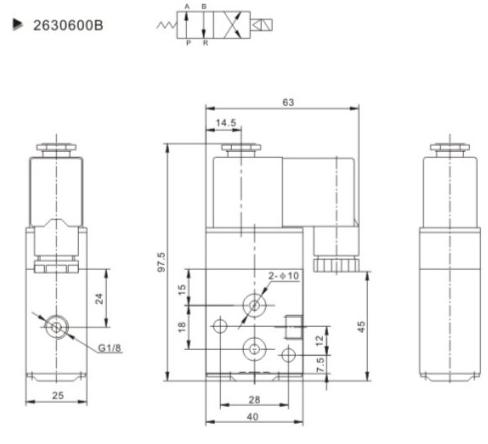

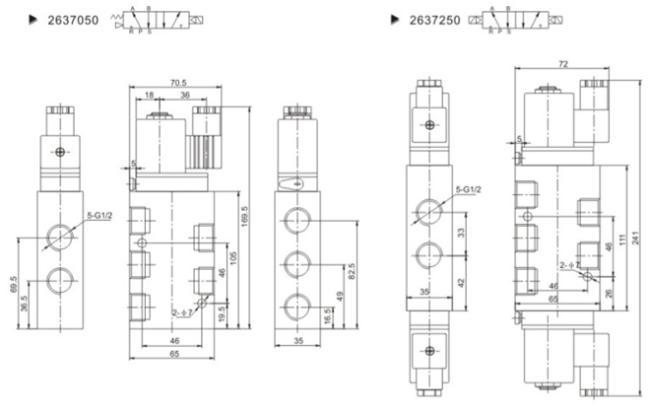

SPECIFICATION |
||||||||||
|
Model no |
8020750 |
8022750 |
8021750 |
8020850 |
8022850 |
2630600 |
2636000 |
2636200 |
2637050 |
2637250 |
|
Working Medium |
Compressed 40 Micron Filtered Air |
|||||||||
|
Position And Way Numbers |
Two Position Three Way |
Two Postion Four Way |
Two Position Five Way |
|||||||
|
Effective Sectional Area |
10mm²(CV=0.56) |
40mm²(CV=2.23) |
4mm²(CV=0.23) |
10mm²(CV=0.56) |
40mm²(CV=2.23) |
|||||
|
Port Size |
G1/4" |
G1/2" |
G1/8" |
G1/4" |
G1/2" |
|||||
|
Motion Pattern |
Inner Pilot Operated |
|||||||||
|
Working Pressure |
0.15~1.0MPa |
|||||||||
|
Max.Pressure Resistance |
1.2MPa |
|||||||||
|
Operating Temperature |
5~50℃ |
|||||||||
|
Voltage Tolerance |
±10% |
|||||||||
|
Insulation& Protection Class |
F Class IP65 |
|||||||||
