Stainless Steel Single Acting Micro Pen Pneumatic Air Cylinder Bore Size 4mm
Stainless Steel Single Acting Micro Pen Pneumatic Air Cylinder Bore Size 4mm
SMC type stainless steel micro pen pneumatic air cylinder single acting Bore size 4mm e.g. CJ1B4-15-PU
Quick Detail:
*SMC interchange stainless steel micro pen shape pneumatic air cyinder
*With bore size dia.4mm,micro shape,high sensitivity in motion
* Single action,spring return
* Stainless steel barrel for anti-corresion and sanitary application
* Piston rod #45(ASTM-1045) steel chrome-plated
* Stainless steel piston rod is available
* With self-lubricating bearing,lubrication free
* Adapted PU or soft Nylon tube directly,convenient and fast connecting.
* Bore size 4mm
* Cylinder kits and accessories available

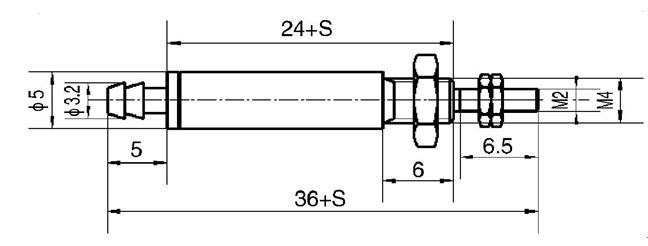

Specifications:
ORDERING CODE | ||||
CJ1 | B | 6 | 15 | PU |
CJ1:Standard single action micro cylinder | B: Basic type | Bore size | Stroke | PU: TUBE4X2.5 |
4:4mm | 5mm | |||
10mm | PA:NYLON 4X2.5 | |||
15mm | ||||
20mm | ||||
SPECIFICATION | |
Bore size(mm) | 4 |
working Medium | Filtered compressed air |
Motion Pattern | Single acting |
Pressure Endurance | 1.05MPa |
Operating pressure range | 0.3MPa~0.7MPa |
Ambient Temperature | -10~70ºC |
Buffer cushioning | NONE |
Operating Speed | 50~500mm/s |
Lubrication | Not required |
