1.0mpa Air Source Treatment Unit Pneumatic Booster Regulator Valve Air Tank Accessories
Price:
Negotiable
MOQ:
2PCS
Delivery Time:
Within 20 days after receiving payment or deposit
Brand:
FLUIDAC or OEM
Product Description
Pneumatic Booster Regulator Valve Air Tank Accessories Air Pressure Regulator VBA Combination
Features:
- Increase factory air pressure by up to 4 times
- Air-only operation requires no power supply or wiring needed
- Low heat generation and easy installation

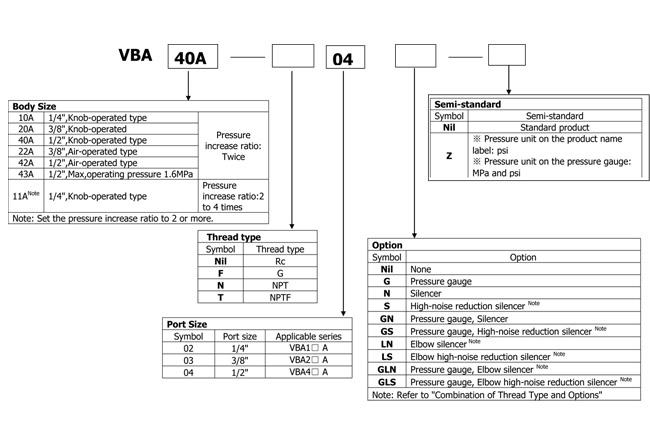

How to order:
Specifications:
| Standard Specification | |||||||
| Model | VBA10A-02 | VBA20A-03 | VBA40A-04 | VBA22A-03 | VBA42A-04 | VBA43A-04 | VBA11A-02 |
| Fluid | Compressed Air | ||||||
| Pressure increase ratio | Twice | 2 to 4 times | |||||
| Pressure adjustment mechanism | Knob-operated with refief mechanism | Air-operated | Knob-operated with relief mechanism | ||||
| Max.flow rate(L/min(ANR)) | 230 | 1000 | 1900 | 1000 | 1900 | 1600 | 70 |
| Set pressure range(Mpa) | 0.2 to 2.0 | 0.2 to 1.0 | 0.2 to 1.0 | 0.2 to 1.6 | 0.4 to 2.0 | ||
| Supply pressure range(Mpa) | 0.1 to 1.0 | ||||||
| Proof pressure (Mpa) | 3 | 1.5 | 2.4 | 3 | |||
| Port size(Rc)(IN/OUT/EXH:3 location) | 1/4" | 3/8" | 1/2" | 3/8" | 1/2" | 1/4" | |
| Pressure gauge port size(Rc)(IN/OUT:2 locations) | 1/8" | ||||||
| Tank connection port(with plug) | 1/4" | 3/8" | 1/2" | 3/8" | 1/2" | 1/4" | |
| Ambient and fluid temperature(℃) | 2 to 50 ( not freezing) | ||||||
| Installation | Horizontal | ||||||
| Lubrication | Grease( Non-lube) | ||||||
| Weight(kg) | 0.84 | 3.9 | 8.6 | 3.9 | 8.6 | 8.6 | 0.89 |
