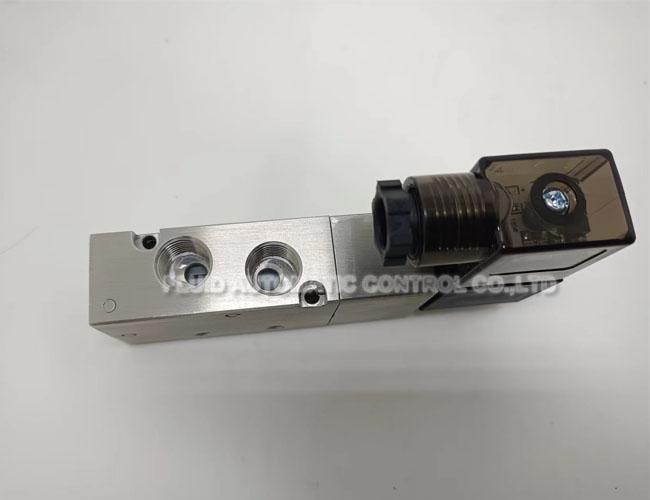

2 Positon 5 Way Pilot Operated Solenoid Valve 4V210-08 Stainless Steel For Pneumatic Directional Control
Stainless Steel 4V210-08 Pilot Operated Solenoid Valve For Pneumatic System Directional Control
Airtac Type 22mm single acting solenoid valve 1/8"~1/2",stainless steel body material 2 Position 5 Way Pneumatic Control and Solenoid Operated Directional Control Valve,pilot Operated
Quick Detail:
* Airtac Type Solenoid valve 4V Series
* Stainless steel Body width 22mm
* Pilot Operated,Inner Pilot type
* Life cycle>1000,0000 Cycles
* Anti-corrossion, wear-resisting, high temperature resistant.
* Metal Manual Override ensure stability when power failure or necessary functional motion
* High quality pilot armature ensure rapid and sensitive feedback when connect eletricity
* Low consumption,long service life
Applications:
4V solenoid valve used as directional control component to change the direction of working medium to drive a executor component normally a cylinder to realize a cycle motion
Specifications:
| Valve Body Material | Stainless Steel 304 | |||||||||||||
| Valve Pilot Material | Stainless steel 304 | |||||||||||||
| Valve Spool Material | PTFE(Excellent in anti-corrosion,Wear-resistance) | |||||||||||||
| Space Sleeve Material | POM | |||||||||||||
| Working Medium | Compressed Air | |||||||||||||
| Working Pressure | 0.15~0.8MPa | |||||||||||||
| Temperature Ambient | -20~70℃ | |||||||||||||
| Working Pattern | Pilot actuated with Space sleeve Structure Spool | |||||||||||||
| Air Ports | In/Out G1/4" , Exhausting:G1/8" | |||||||||||||
| Service Life Cycles | >1000,0000 Cycles | |||||||||||||
| Weight | 450g | |||||||||||||
How to order:
| 4V | 2 | 10 | 08 | DC24V | SUS | |||||||||
| 4V Series 5/2 Solenid Valve | Body Size Wideth 22MM | Single Coil (Single Acting) | Air Inlet/Outlet Port G1/4" | Coil Voltage: DC24V,AC110V,AC220V,AC24V | Stainless Steel 304 Material | |||||||||
Dimensions:
