Hydraulic Thin Type Pneumatic Air Cylinder LA Side Mounting Bore Size 63mm 140kg / Cm2
Price:
Negotiable
MOQ:
5PCS
Delivery Time:
Within 20 days after receiving payment or deposit
Brand:
FLUIDAC or OEM
Product Description
Hydraulic Thin-Type Cylinder LA Side Mounting RTB-LA 32*20 N
Hydraulic Thin-Type Cylinder LA Side Mounting, Bore Size Φ32~Φ63mm, Pmax 140kg/ cm2 e.g.RTB-LA 32*20 N
Details:

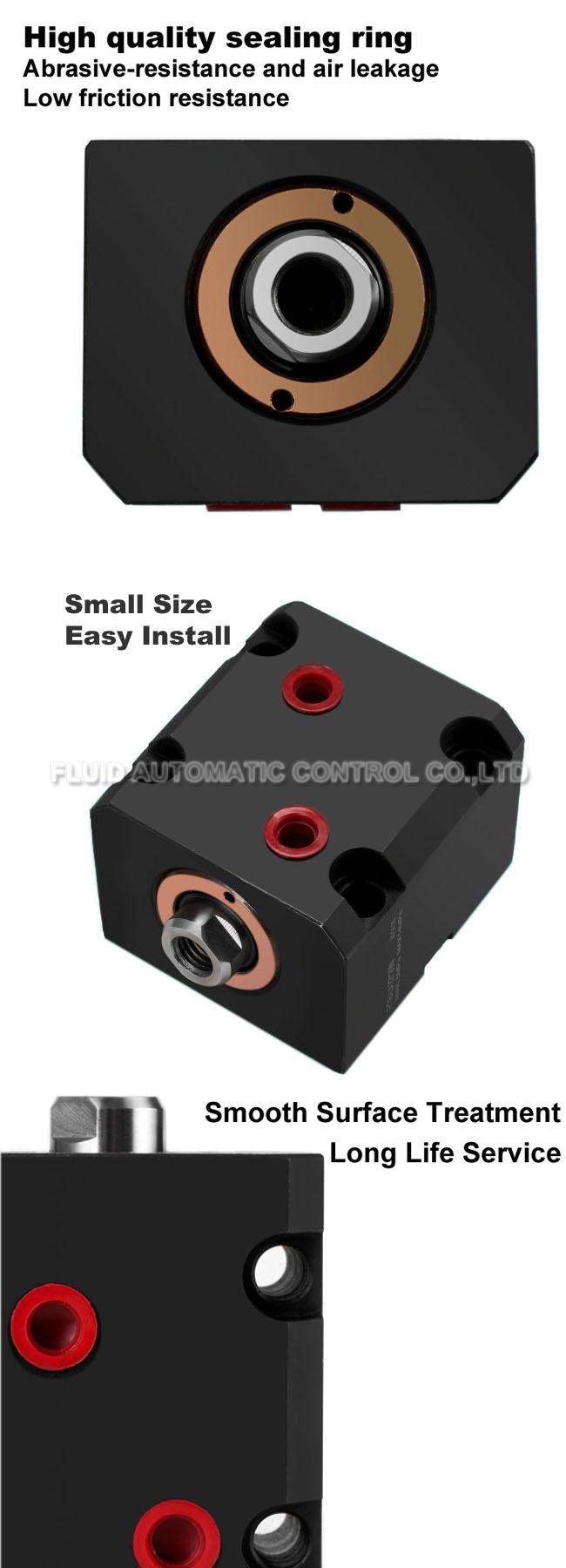

- Made of carbon steel,Smoothness and long service
- Lightweight design,convenient installation,low cost
- Standard type, provide multiple modes of using
- High quality sealing ring,abrasive resistance and air leakage
- Low friction resistance
How to order:
| RTB | LA | 32 | × | 20 | N |
| RTB Series | Mounting Type: LA: Single end rod type LW: Double end rod type |
Bore Size: φ32,φ40,φ50,φ63 |
Standard Stroke: 10,20,30,40,50 |
Rod End Type: N:Female thread N W: Male thread W |
|
Specification:
| Mounting type | LA Single end rod | |||
| LW Double end rod | ||||
| Range of pressure(Mpa/cm2 ) | 0.5~14MPa/cm2 | |||
| The range of speed | 8~100mm/sec | |||
| The range of temperature | -10~+60℃ | |||
| Working medium | Filtered oil | |||
| Acting type | Double acting | |||
| Material | Carbon steel | |||

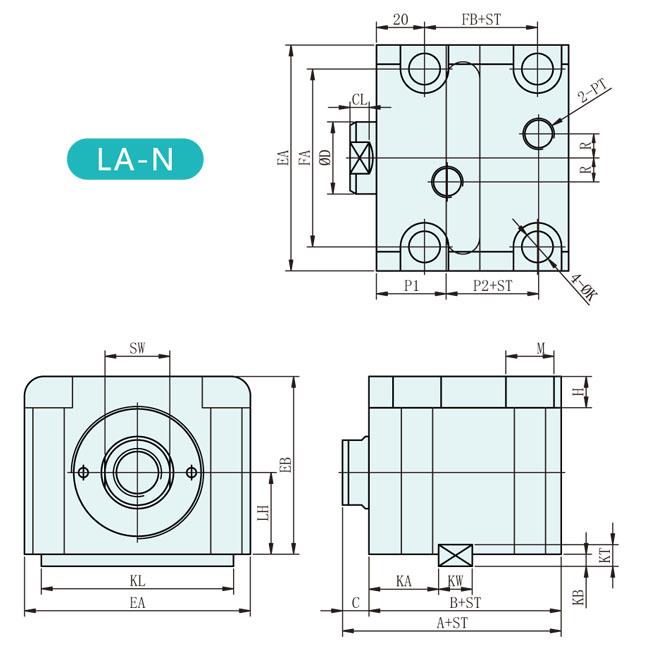

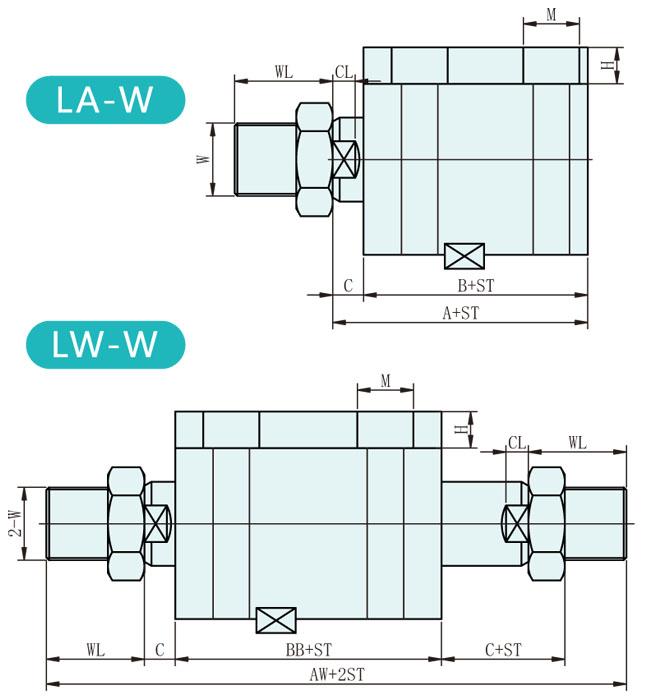

Dimensions:
| Bore Size | PT | KW | KT | KL | KA | KB | ||
| φ32 | 1/4 | 12 | 8 | 63 | 28 | 4.5 | ||
| φ40 | 1/4 | 12 | 8 | 70 | 28 | 4.5 | ||
| φ50 | 1/4 | 14 | 9 | 80 | 29 | 5 | ||
| φ63 | 3/8 | 16 | 10 | 100 | 31 | 5.5 | ||
| Bore Size | A | AL | AN | AW | B | C | CL | D | SW |
| φ32 | 64 | 89 | 89 | 139 | 54 | 10 | 7 | 20 | 17 |
| φ40 | 65 | 95 | 90 | 150 | 55 | 10 | 7 | 25 | 22 |
| φ50 | 71 | 106 | 97 | 167 | 60 | 11 | 8 | 30 | 27 |
| φ63 | 80 | 120 | 108 | 188 | 67 | 13 | 10 | 35 | 32 |
| Bore Size | EA | EB | LH | FA | FB | FF | H | K | M |
| φ32 | 70 | 56 | 25 | 56 | 24 | 32 | 9 | 9 | 14 |
| φ40 | 80 | 64 | 29 | 62 | 23 | 32 | 11 | 11 | 18 |
| φ50 | 94 | 74 | 34 | 74 | 27 | 35 | 13 | 13 | 20 |
| φ63 | 114 | 89 | 42 | 90 | 32 | 42 | 15 | 15 | 22 |
| Bore Size | N | W | WL | P1 | P2 | P3 | R | ||
| φ32 | M12*1.75*15D | M16*1.5 | 25 | 28 | 14 | 13 | 10 | ||
| φ40 | M16*2.0*20D | M22*1.5 | 30 | 28 | 15 | 14 | 10 | ||
| φ50 | M20*2.5*25D | M26*1.5 | 35 | 29.5 | 18 | 16 | 10 | ||
| φ63 | M27*3.0*35D | M30*1.5 | 40 | 31 | 20 | 20 | 10 | ||
