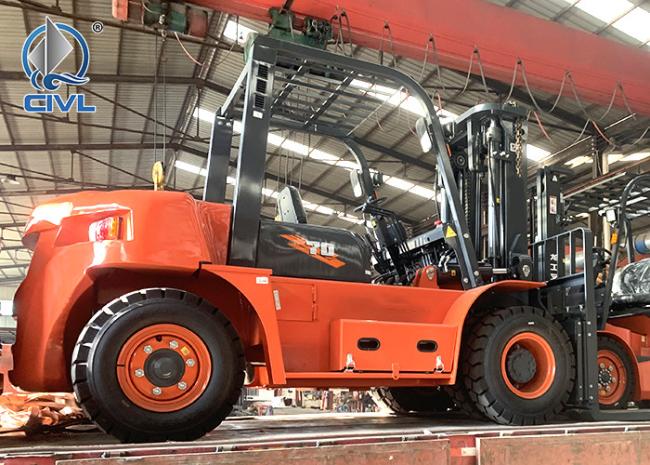

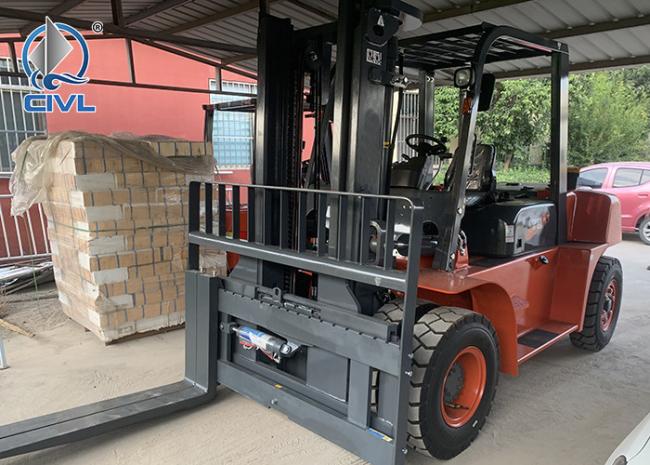

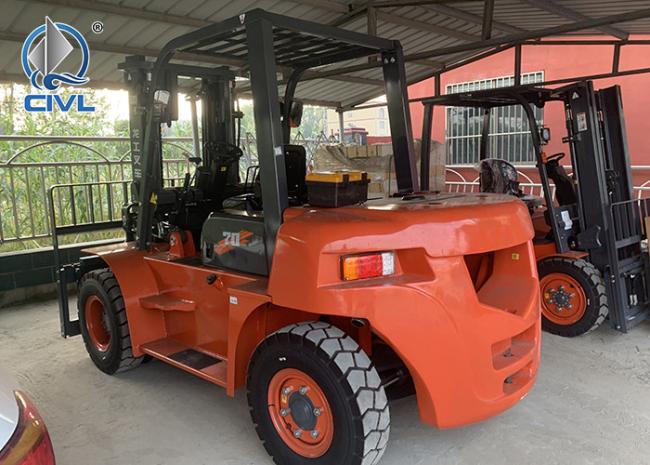

7 Tons Diesel Forklift 195KW Engine Counterbalanced Lift Trucks Internal Combustion Type Lifting And Handling
7 Tons Diesel Forklift 195KW Engine Counterbalanced Lift Trucks Internal Combustion Type Lifting And Handling
Description:
1. Using ergonomics and CAE technology, the operation space is enlarged, the driver is more comfortable,
and the operation efficiency and safety are effectively improved
2. Using high-pressure common rail engine (standard), Bosch high-pressure multiple injection technology,
the power performance is significantly improved, and the smoke emission is lower
3. The progressive pointer meter has a water temperature meter, an oil gauge, a chronograph and other alarm indicators,
which are straightforward and clear, so that the working conditions are under control
4. The opening angle of the hood is increased to 80°, which is more convenient for maintenance
Specification:
| model | unit | CPCD70 | |
| Dynamic form | diesel | ||
| Rated load | kg | 7000 | |
| Load center distance | mm | 600 | |
| Maximum lift height | mm | 3000 | |
| free lift height | mm | 211 | |
| Fork size | mm | 1220×150×65 | |
| Gantry inclination | deg | front10 rear12 | |
| front overhang | mm | 600 | |
| rear overhang | mm | 720 | |
| Outline size | total length | mm | 4840 |
| Overall width | mm | 1995 | |
| The gantry can not be raised | mm | 2500 | |
| Safety rack height | mm | 2450 | |
| Shelf (fork rack) height | mm | 1440 | |
| Minimum turning radius | mm | 3370 | |
| Ra minimum right angle stacking channel width | mm | 5390 | |
| Maximum travel speed (full load / no load) | Km/h | 24/29 | |
| Maximum lifting speed (no load/full load) | mm/s | 500/530 | |
| Maximum grade (full load / no load) | % | 32/20 | |
| self-weight | kg | 9540 | |
| tire | front wheel | 8.25-15-14PR | |
| rear wheel | 8.25-15-14PR | ||
| tire | front wheel | mm | 1470 |
| rear wheel | mm | 1700 | |
| wheelbase | mm | 2300 | |
| min ground clearance | Door frame | mm | 200 |
| frame | mm | 230 | |
| fuel tank capacity | ltr | 110 | |
| Engine parameters | |||
| rated power | kW/r | 85/2200 | |
| Rated torque | N·m/r | 500/1600 | |
| Number of cylinders | 4-105x124 | ||
| Displacement | L | 4.29 | |
