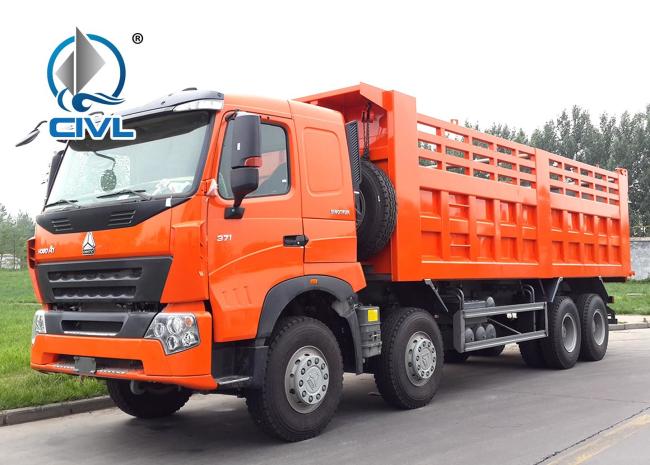

SINOTRUK Construction Project 1200R20 Radial Tire 8X4 Dumper truck for Sand
SINOTRUK Construction Transport Dumper Lorry , Drive Model 8X4
- SINOTRUCK HOWO series trucks own the elegant appearance, strong operation system and excellent safety.
- Sino Heavy Machinery Co,Ltd is the authorized company of SINOTRUK(CNHTC), and mainly deal with heavy duty trucks /all spare parts and service We supply HOWO, , KING, GOLDEN PRINCE, HOHAN series 4X2, 6X4, and 8X4 dump trucks, tractor trucks, cargo trucks, garbage trucks, oil tank trucks, water tank trucks, log trailers tractors, terminal tractors, etc. Our products arrange from 190 horse power to 410 horse power, and loading capacity cover from 5 tons to 50 tons.
Detailed Parameter of
| Cabin | HW76 cab.One berth original luxury Volvo cab with sleeper. | ||
| Vehicle Main Dimensions | L×W×H(mm) | 10745×2496×3190,3406 | |
| Wheel base(mm) | 1800+3600+1350 | ||
| Approach/Departure angle(°) | 28/17 | ||
| Weight in KGS | Tare Weight | 15120 | |
| Loading Capacity | 31000 | ||
| Front axles loading capacity | 1×8000 | ||
| Rear axles loading capacity | 2×8500 | ||
| Max.Driving Speed (km/h) | 90 | ||
| Engine | Brand | HOWO | |
| Model | WD615.69 | ||
| Horse Power(HP) | 371 HP | ||
| Emission Standard | Euro II | ||
| Axle | HC16, overall cast steel axle and Han Ruisen disconnect suspension | ||
| Gearbox | HW19710.10 block transmission | ||
| Clutch | Reinforced diaphragm clutch, diameter 430mm | ||
| Steering Gear | ZF8098, original made in German. Power steering, hydraulic steering | ||
| Fuel Tank(L) | 300 | ||
| Tire | 12.00R20 tires | ||
| Brakes |
Service brake: dual circuit compressed air brake Parking brake: compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake |
||
| Dump Body | |||
| Thickness | Side | 6mm/8mm | |
| Front | 6mm/8mm | ||
| Bottom | 8mm/10mm | ||
| Dump Body Size | L×W×H | 7800 x 2300 x 1200(1500) | |

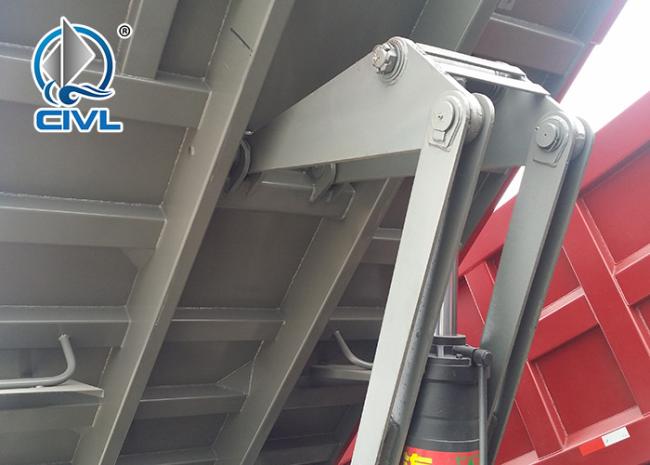

| Tipping Hydraulics | Tipping Type | Front tipping type | |
| Tipping System | Complete set of HYVA brand hydraulics system | ||
What products you are in need and to buy in this month?
Such as Dump truck, Cargo Truck, Tractor Truck,Light Truck, Wheel Loader,Truck Crane,Excavator, Rollers and etc....
Also construction materials, such as mobile house, steel structure...
Believe we will have joyful stable cooperation!
