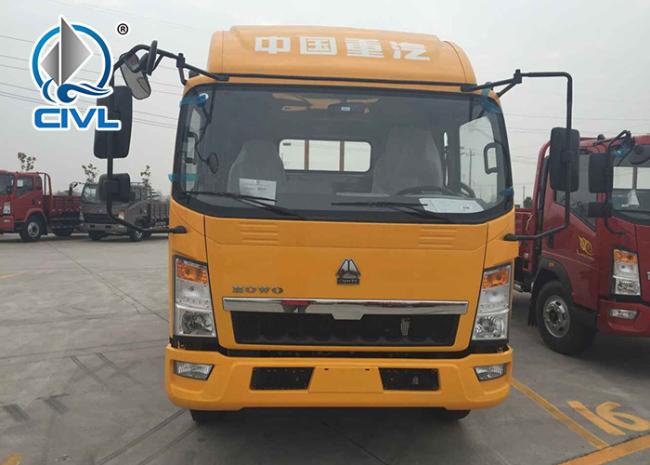

New Sinotruck 4 X 2 Light Duty Commercial Trucks Loading 8 Ton Cargo truck

SPECIFICATIONS FOR Tractor Truck

Sinotruck Howo cargo truck

Vehicle Specifications

DESCRIPTION

Model:

ZZ1047D3414C145

Type of vehicle

Cargo truck

Engine Power, HP

110 HP

Traction

4x2

Curb weight

4500KG

Loading capacity

5000KG

LHD or RHD

RHD(Right hand driver)

Vehicle Equipment

Engine

Model

CY4102-CE4C(Turbo inter cooling, water cooling, cimmun rail , Euro IV stanard )

Power Kw. / CV:

91kw

Cylinder Capacity cc / Lt:

3.856L

Stroke

118mm

Bore

102mm

Torque (Nm/rpm):

345N.m at 100-1500RPM

Kind of Fuel

Diesel

Fuel consumption

<200g/KW.h

 Gear Box Systems

Gear box

WLY 6T100 (6 forward speeds, 1 reverse speed)Manual operation
Forward ratio : (6.01/3.29/1.94/1.306/1.00/0.795)
Reverse Forward:(5.455)

Axles

Front Axle Model

2(VPD 022QB)

Rear Axle

3.5

Ratio of rear axle

4.42/4.8/ Options

Loading Capacity Front Axle (Kg.)

2000KG

Loading Capacity Rear Axle (Kg.)

3500KG

Wheels & Tyres

Tyres type / Sizes

7.00R16(Steel wire ,solide and strong ) Tread width 7 inch ;  Diameter 16 inch

Chassis & Add Components

Capacity of fuel tank(l)

80L

Wheel base (mm)

3360mm

Wheel Track(mm)

Front 1605

Rear 1540

Approach/departure angle(°):

29/18

Carriage

L*W*H 4200*2050*2050
(Automatic  spread )

 Cabin

L1900

New desingng seat
Adjustable (up,down,front,back)steering wheel
Double lock safety belt
Anti-sunlight cover

Break stystem

Service brake:

 Drum break
