Benz Technique Heavy Haulage Trucks Manual Transmission 290 HP 6 x 4
Benz Technique Heavy Haulage Trucks Manual Transmission 290 HP 6 x 4
We supply different power (266-420HP) and driving mode(4x2,6x2,6x4,8x4) cargo truck with different type of carriage. For more informations, kindly contact me
Description of Brand
Howo series products are made by Sinotruck with MAN`s techinique from Germany. Both frames and axles are produced by techniques originating from Germany.
series products feature lots of heavy duty trucks, tippers, mining tippers, tractor trailers, cargo trucks, cement mixer trucks, garbage trucks, fire fight trucks, among others. With respect to various types of trucks, different powers, namely, 266, 290,336,371 as well as 420HP are readily available. We also have a wide selection of driving modes featuring 4x2, 4x4, 6x2, 6x4,8x4.
Advantaged by the high quality and competitive price , our products have been exported to more than 100 countries. Our customers ascribe their high-efficiency work to our products, which helps us earn a good reputation.
Advantage of product
1. Very stong axles and tires, it allow you to overloade
2. We can change the size and thiceness of cargo, totally satisfy your request and don`t waste your money
3. Cabin made with BENZ technique, very good horizon
4. Reinforce frame of truck, assure the good traveling condtion on rough road
Specifications
| Model | ZZ1257N46MD1 |
| weight in kg | Curb weight :11050kg |
| Full rated:25000kg | |
| Dimension | Overall L*W*H 10130*2496*3150(3405) |
| Wheel base:1800+4200/1800+4800/1800+5600 | |
| Minimum ground clearance:260mm | |
| Performance | Max.speed:110km/h |
| Economic speed:60-85km/h | |
| Max.gradeability:30% | |
| Minimum turing circle:14m | |
| Engine | Model:MC05.14-40/MC05.16-40 |
| Output: 340HP | |
| Max torque:1600Nm/1000-1400RPM 1800Nm/1000-100RPM |
|
| Transmission: | HW19710L |
| Clutch | 395mm |
| Rear axle model | 1118 |
| Rear axle ratio | 5.833 |
| Fuel capacity | 200L |
| Overhang(Front sping/Rear spring) | 10/12;10/-;9/12;9/-;4/-;4/5;4/12 |
| Tyres | 12.00R20;295/80R22.5;315/80R22.5 |
| Frame section(mm) | 300*80*8 |
| Driving mode | 6x4 |

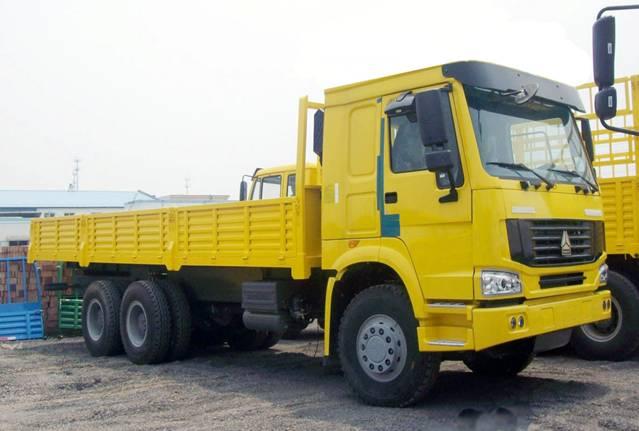

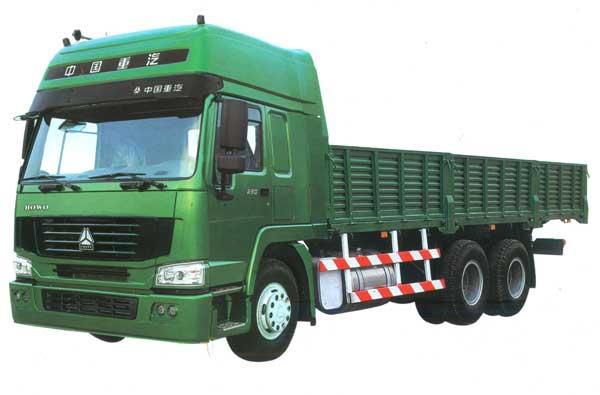

Photos
