7.65 Ton- 67.5T Operating Weight Shantui Brand Bulldozer With All Kind of Blade, Winches, Ripper
50 Ton Operating Weight LED Screen Earthwork International Bulldozer With Two Movable Arm
Advantages
● The turbo charged engine features strong power, high efficiency and energy saving capabilities, and has a large torque reserve coefficient;
● The extended track ensures low ground pressure, high reliability and strong traction;
● The planetary power shift transmission features a compact structure, smooth gear shifting, high efficiency and a long service life;
● Forward and reverse motion, gear shifting and steering are all controlled by a single PPC lever;
● Integrated dashboard design makes observation of machine processes more logical;
● The hexahedron cab has a beautiful appearance, wide visibility and is very comfortable;
● Equipped with a straight angle blade, which is used for excavating, transporting, and backfilling in earth moving projects on roads, farms, rivers, urban areas and power plant projects.
Specifications
| ITEM | UNIT | SD08-3 |
|---|---|---|
| L×W×H (Ripper not included) | mm | 3973×2553×2785 |
| Operating weight (Ripper not included) | t | 7.65 |
| Engine | - | Weichai WP4G90E235 |
| Rated power | kW/rpm | 63/2350 |
| Gradeability | ° | 30 |
| Blade type | - | Straight tilt blade |
| Blade width | mm | 2553×890 |
| Dozing capacity | m3 | 2.02 |
| Ma× drop below ground of blade | mm | 383 |
| Lift height of blade | mm | 850 |
| Ripper type | - | - |
| Ripping depth of ripper | mm | - |
| Lifting height of ripper | mm | - |
| Number of carriers (each side) | - | 1 |
| Number of track rollers (each side) | - | 6 |
| Number of track shoes (each side) | - | 41 |
| Width of track shoe | mm | 460 |
| Track gauge | mm | 1450 |
| Ground length and ground pressure | mm/MPa | 2185-0.038 |
| Pitch | mm | 154.25 |
| Forward speed | km/h | 0–2.53 |
| 0–4.55 | ||
| 0–7.57 | ||
| Reverse speed | km/h | 0–2.76 |
| 0–4.95 |

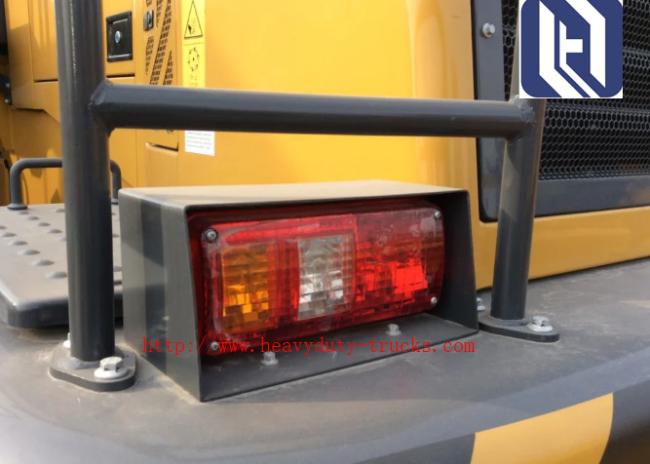

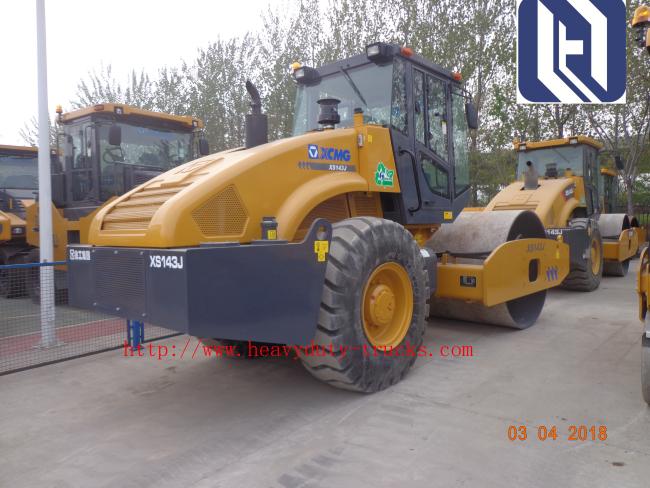

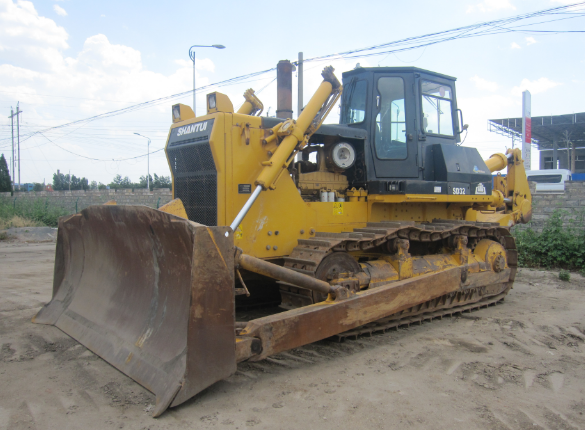

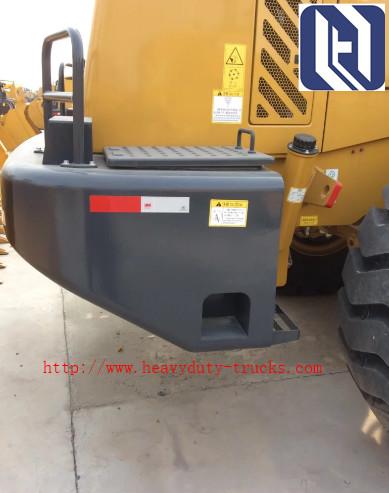

Photos
Other Construction machinery can be provide according to your request, freely contact me for the informations and quotations.
