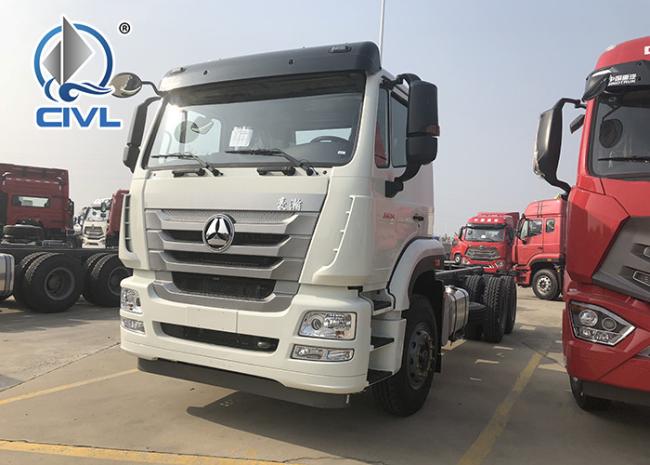

HOHAN 340HP Heavy Duty Tipper 10 Wheel 6x4 Dump Truck 20cubic meters 40 ton engineering Tipper dumper vehicle
HOHAN 340HP Heavy Duty Tipper With Fortfield carbon Steel Carriage
Specifications
|
SINOTRUK ALL NEW 20 cubic meters 40 tons HOHAN J7B 6x4 ENGINEERING Dumper Truck MINE/COAL/ ROCK transportation |
|
| Model | ZZ3257N3846 |
| Drive Type | 6×4 left/ right hand drive |
| Engine | TECHNOLOGY D10-34 ,340HP( Euro 3/4/5) |
|
6 cylinder in-line with water cooling, turbo-charging & inter-cooling,4 stroke GERMAN BOSCH common rail electronic fuel INJECTION |
|
| Displacement : 9.726L | |
| Cabin |
H16 lengthened cab(extended row of seat air-conditioner and new-style seat),from german benz technology NG85 |
| Transmission | HW15710(manual transmission 10 forwards & 2 reverses) |
| Front Axle | HF9 ( 9Ton capacity with drum brake ) |
| Driving Axle |
AC16 twin axle 16tons capacity/axle central reduction +hub reduction , welded&stampted axle housing,speed ratio 5.45 |
| Steering gear |
D39 hydraulic steering with power assistance. made in China |
| Clutch |
Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance |
| Rim/ Tire |
11.00-20 nylon tyre Optional 11.00R20,12.00R20, |
| Wheel base | 3800+1350(mm) |
| Overall dimension | 8550×2496×3450(mm) |
|
Cargo compartments dimension |
5800×2300×1500(mm) rectangle-shaped |
| The curb weight | 9570(Kg) |
| Gross weight | 25000 kg |
| Max. speed | 75km/h |
Other Construction machinery can be provide according to your request, freely contact me for the informations and quotations.
