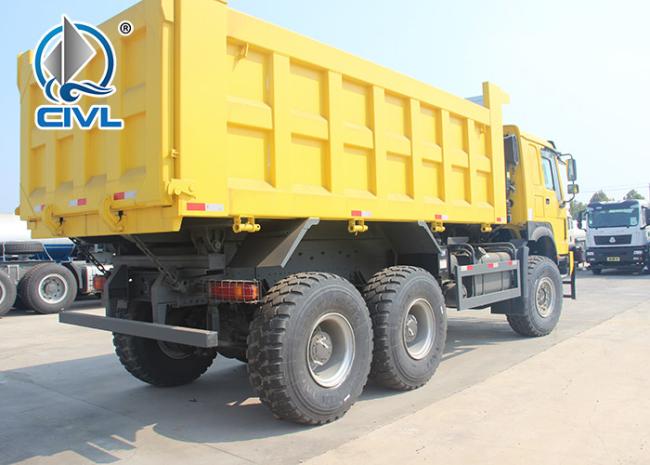

Sinotruck Styre light truck 6x6 275hp 45tons 25cbm truck dump SINOTRUK HOWO 6 x 6 All-Wheel Drive
South America Heavy Duty Dump Truck , SINOTRUK HOWO 6 x 6 All-Wheel Drive
A dump truck is a vehicle that unloads goods by itself through hydraulic or mechanical lifting.Also known as dump truck.It is composed of automobile chassis, hydraulic lifting mechanism, cargo compartment and force taking device.
The cars of dump trucks are divided into two kinds: backward tilting and side tilting. The movement of piston rod is controlled by the control system. Backward tilting is more common.
Specifications
| Model | ZZ3257N3647E1 | Driving form | 6x4 |
| Wheel base | 3625+1350mm | Engine | D10.38-50 |
| Gear box | HW19712 | Rear axle ratio | 5.45 |
| Length | 8145mm | Width | 2496mm |
| Height | 3450mm | Tread |
Front: 2022mm Rear:1830mm |
| Vehicle weight | 12.12t | Load capacity | 12.74t |
| Total weight | 25t | Tonnage level | heavy truck |
| Approach angle | 14° | Departure angle | 26° |
| Place of origin | Jinan | Market segment |
Urban constrution Mining engineering |
| Engine | |||
| Model | D10.38-50 | Brand | Sinotruck |
| Numebr of cylinders | 6 | Fuel | Diesel |
| Displacement | 9.726L | Emission standard | Euro 5 |
| Horsepower | 380hp | Max output power | 276kw |
| Torque | 1560Nm | Revolving speed | 1200-1500mm |
| Rated speed | 2000rpm | Engine type |
In-line, water-cooled, four cylinder |
| Container | |||
| Length | 5400mm | Width | 2350mm |
| Height | 1500mm | ||
| Gearbox | |||
| Model | HW19712 | Brand | Sinotruck |
| Forward gears | 12 | Reverse gears | 2 |
| Underpan | |||
| Front axle load | HF9/7000kg | Rear axle load | AC16/18000kg |
| Suspension type | Plate spring | Ratio | 5.45 |
Other Truck can be provide according to your request, freely contact me for the informations and quotations.
Packaging & Delivery
| Packaging Details: | Nude packing;Ro-on/Ro-off shipment |
| Delivery Detail: | 30 days after receiving 30% depoist by T/T |
|
The main products we deal with now are SINOTRUK HOWO, XCMG, SHANTUI, ZOOMLION and SANY. 1.dump trucks; cargo trucks Machine series: 1.Wheel loader,Backhoe loder, brick making machine 2.Roller, 3.Motor Grader, 4.Bulldozer, 5.Excavator, 6.Crane(truck crane,crawler crane,truck mounted crane,self erecting crane), 7,forklift and 45t contain reach stacker 8,paver and so on |
