Operating Weight 17000KG Shandtui Bulldozer With Straight Tilt / Angle Blade Cummins 165HP Engine
Price:
NEgotiable
MOQ:
1
Delivery Time:
Within 35 days
Brand:
Shantui
Product Description
Operating Weight 17000KG Bulldozer With Straight Tilt /Angle Blade Cummins 165HP Engine
Feature
The SD16 is equipped with a hydraulic drive system with hydraulic control technology and has an advanced structure, providing reliable performance and convenient and flexible operation, making the SD16 an ideal construction machine.
Specifications
| ITEM | UNIT | SD16 |
|---|---|---|
| L×W×H (Ripper not included) | mm | 5140×3388×3032 |
| Operating weight (Ripper not included) | t | 17 |
| Engine | - | Shangchai SC11CB184G2B1/ Weichai WD10G178E25 |
| Rated power | kW/rpm | 135/1850 110/1850 |
| Gradeability | ° | 30 |
| Blade type | - | Straight tilt blade U blade Angle blade |
| Blade width | mm | Straight tilt blade 3388×1149 U blade 3556×1120 Angle blade 3970×1040 |
| Dozing capacity | m3 | Straight tilt blade 4.5 U blade 5 Angle blade 4.3 |
| Ma× drop below ground of blade | mm | 540 |
| Lift height of blade | mm | 1095 |
| Ripper type | - | Three-shank ripper |
| Ripping depth of ripper | mm | 572 |
| Lifting height of ripper | mm | 592 |
| Number of carriers (each side) | - | 2 |
| Number of track rollers (each side) | - | 6 |
| Number of track shoes (each side) | - | 37 |
| Width of track shoe | mm | 510 |
| Track gauge | mm | 1880 |
| Ground length and ground pressure | mm/MPa | 2430-0.067 |
| Pitch | mm | 203.2 |
| Forward speed | km/h | 0–3.29 |
| 0–5.82 | ||
| 0–9.63 | ||
| Reverse speed | km/h | 0–4.28 |
| 0–7.59 | ||
| 0–12.53 | ||
| Net Engine Output at Rated RPM | - | 148HP(110.5KW) |

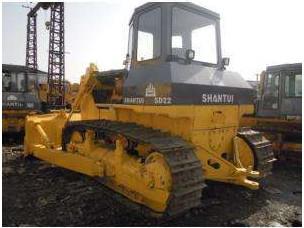

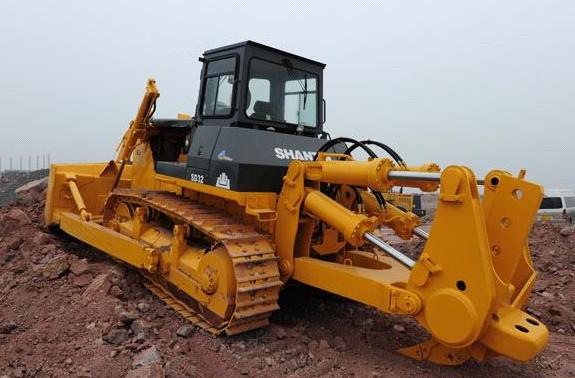

Photos
Other Construction machinery can be provide according to your request, freely contact me for the informations and quotations.
