371HP EuroII Emission 12 Tyres 8 x 4 Heavy Duty Trucks Loading 60000KG
Price:
Negotiable
MOQ:
1
Delivery Time:
Within 35 days
Brand:
CIVL
Product Description

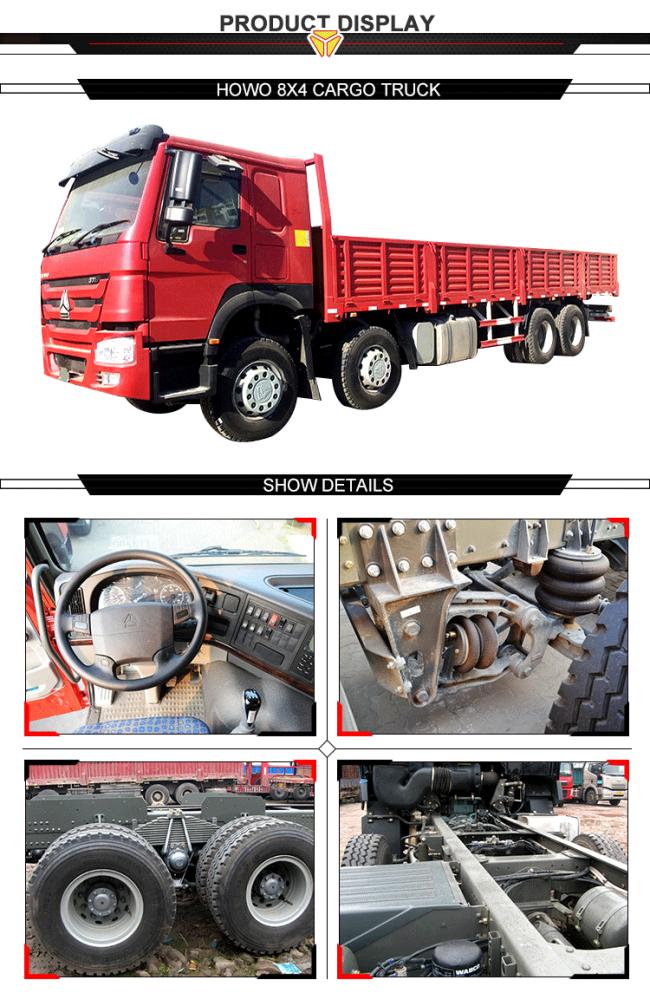

371HP EuroII Emission 12 Tyres 8 x 4 Heavy Duty Trucks Loading 60000KG
Advantage
The Model is highly adaptable and can be configured up to 70000KG. to meet the demands of virtually any heavy duty application in rougth road. Combining durability and power with options to match the needs of both the job and driver, the trucks is an exceptional performer and ideal for transport corns, flour, or other goods .wrecker and municipal utility applications.
SINOTRUCK is unlike any truck on the market. It puts the driver's needs first with upgraded features designed to provide greater visibility and comfort for increased productivity. When you call for a truck to help tackle the demands of your day-to-day, Sinotruck answers.
The model is powered by our WD Series engines to keep you moving. And with upgrades like added storage, superior visibility and enhanced technology, every route is quicker, safer and easier. When you do the hard work, you need the truck that’s ready for any challenge.
Specifications
| Chassis Model | ZZ1317N3867A,ZZ1317N4667A,ZZ1317V3867A,ZZ1317V4667A |
| Driving Type | 8×4 |
| Cabin | HW76—HOWO Extended cabin. Basic configuration is with single sleeper; new type seat; adjustable steering wheel from up and down, front and rear ; new type integral warm air heater with European style; the German VDO instrument which synchronized with the world high level heavy duty truck; road vehicles is with four point floating suspension (front spiral spring, rear air spring) with shock absorbers, off road vehicles is with four point floating spring suspension + shock absorbers, each type of cabin is with transverse stabilizing device, double lock safety belt; external sunshade; fourth generation air conditioning, air conditioning control board is liquid crystal display with LED lighting; with cruise; with sound warning system for abnormal generator voltage (to prevent damage of electronic devices); electric windows. HW70--HOWO standard cabin. Basic configuration is without sleeper. HW79--HOWO high roof cabin. Basic configuration is with double sleeper. and others is similar to the HW76. |
| Engine | Make: SINOTRUK Diesel 4-stroke direct injection diesel engine Engine model: WD615.47, 371 HP;D12.420-20,420HP;WD615.69.336HP; Emission :Euro 2 6-cylinder in-line with water cooling, turbo-charging and intercooling Displacement: 9.726 L |
| Transmission | HW19710, 10F & 2R |
| Steering | ZF power steering, modol ZF8118, hydraulic steering with power assitance |
| Front Axle | HF9, 1x7000 KGS Steering with doubleT-cross section beam |
| Rear Axle | HC16, 2x16000 KGS Pressed axle housing, central single reduction with hub reduction,with differential locks between wheels and axles. Ratio:4.42 |
| Propeller Shaft | Double universal joint propeller shaft with gear-shaped coupling flange |
| Chassis | Frame: Uprofile parallel ladder frame with section of 300x80x8mm,reinforced subframe all cold riveted cross members Front suspension:10 semi elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer Rear suspension:12 leaf semi elliptic springs, bogie spring and stabilizer |
| Brake | Service brake: dual circuit compressed air brake Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels Auxiliary brake: engine exhaust brake |
| Electrics | Operating voltage: 24 V, negative grounded Starter: 24 V, 5.4 Kw Alternator: 3-phase, 28 V, 1500 W Batteries: 2 x 12 V, 165 Ah Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light |
| Tyres | 12.00R20(11), one spare tyre |
| Fuel Tank | 400L |
| Cargo Body | Length:7.1M,7.65M,9.5M;Width:2.3M;Height:0.6-1.5M |
| Overall Dimension | 11600*2550*3400 mm |
