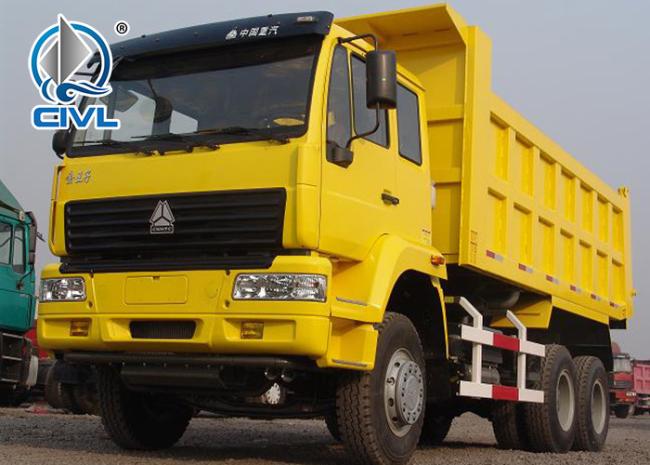

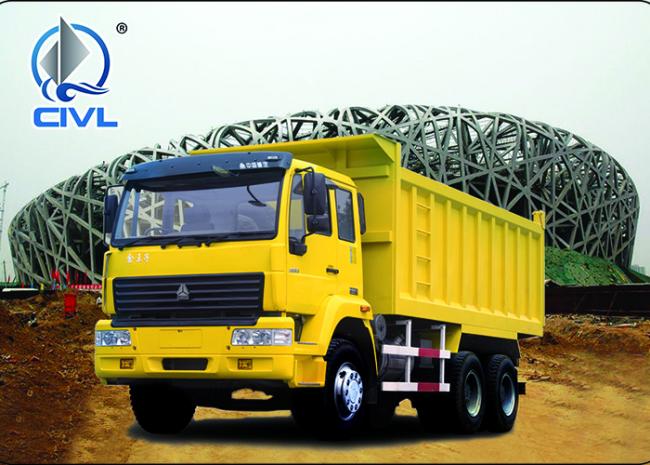

Dumper Sinotruck Howo SWZ 6 X 4 Heavy Dump Truck 12.00R20 Radial Tire Co - Driver 50km/H Yellow
Description:
1.SINOTRUCK SWZ series trucks own the elegant appearance, strong operation system and excellent
safety.
2.Sino Heavy Machinery Co,Ltd is the authorized company of SINOTRUK(CNHTC), and mainly deal with
heavy duty trucks /all spare parts and service We supply HOWO, , KING, GOLDEN PRINCE
HOHAN series 4X2, 6X4, and 8X4 dump trucks, tractor trucks, cargo trucks, garbage trucks, oil tank trucks
water tank trucks, log trailers tractors, terminal tractors, etc. Our products arrange from 190 horse power
Application:
It is suitable for in harsh environments, unloading and transport ore and others.
|
Item |
SINOTRUK SWZ 6X4 DUMP TRUCK |
|
Truck model |
ZZ3317N3867B |
|
Max driving speed: |
50km/h
|
|
Engine model |
290/336/371HP, EURO II |
|
Carriage internal size: |
5100/5200/5400/5600/6000/6200/6500/6800*2300*800/1000/1200/ 1450/1500mm;volume:10-24m3 Thickness: bottom 8/10/12mm, sides: 4/6/8/10mm
|
|
Front Axles |
HF12, 12000KG |
|
Rear Axles |
HC16,2*16000kg |
|
Steering |
ZF8098, GERMANY |
|
Tires |
12.00R20 Radial tire,11 pcs Option: nylon tire |
|
Air conditioner |
With safety belts for driver and co-driver |
|
Transmission |
HW15710/ HW19710, 10F&2R |
|
Export Markets |
South America, Southeast Asia, Africa, Mid East, Eastern Asia |
|
Loading Capacity |
20-38 ton |
|
Driver's Cab |
No sleeper/one sleeper/ two sleepers, VOLVO TECHNOLOGY |
|
Hydraulic Lift of Carriage |
T model (ventral lift)/ front lift |
Other products:
Truck series:
1. Dump trucks; cargo trucks (1-120ton)
2. Tractor trucks; (1-120 tons)
3.Tanker trucks,( 54873020, 54798871, 54798867, 54633157, 54622108, 54621778, 54621524, water tanker and oil tanker)
4. Mixer trucks and concrete pump truck
5. Mine dump trucks( 30 tons off-road mine tipper, 50tons/70tons mine dump truck, 6x6 articualted dump trucks)
6. Off-road drive trucks( 4x4. 6x6 and 8x8 Trucks)
7. Garbage trucks( garbage compactor truck, suction trucks)
8. Truck mounted cranes(normal road truck crane, truck mounted crane)
9. Special trucks( wrecker trucks, military trucks...)
10.Semi trailers( container semi-trailer, low-bed semi-trailer, tanker trailer, dumper trailer...)
11.Truck spare parts
