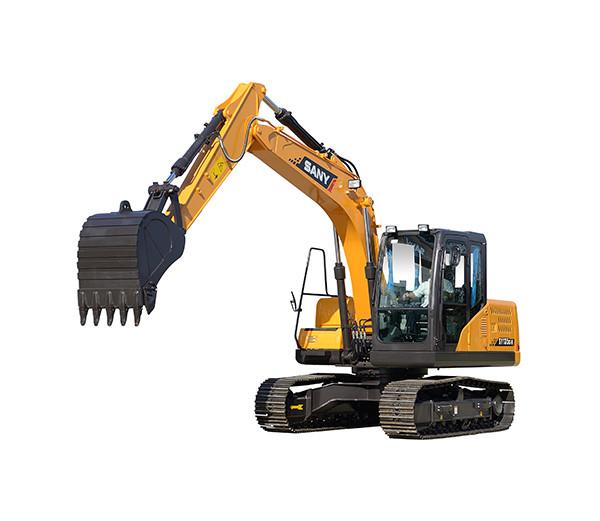

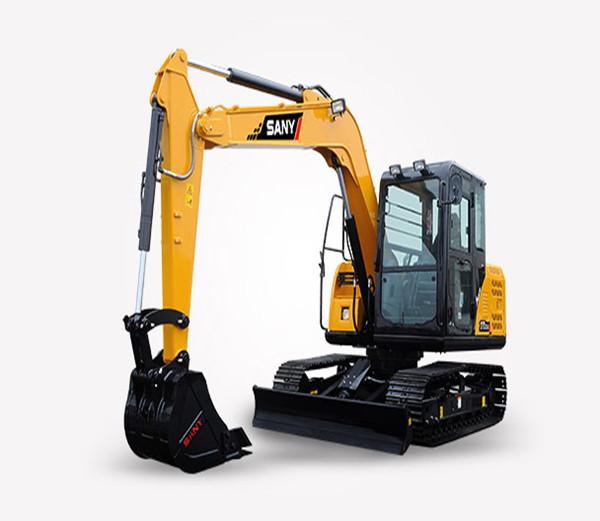

Forest Farm Indoors Hydraulic Crawler Excavator 191/1800N*M/Rpm
Price:
Negotiable
MOQ:
1
Delivery Time:
Within 35 days
Brand:
CIVL
Product Description
Advanced engine and hydraulic system
Super powerful engine combines with the new electrical positive flow hydro-system makes the excavator worked with high-efficiency and well adapted to different operating conditions.
Durable and reliable
With reinforced working device and high-strength swing plant, construction components' life span are improved 30%.
High Efficiency
Accurate and adjustable flow control makes the excavator worked faster and more efficiently.
Transport length6120mm
Transport width2220mm
Transport height2720mm
Upper body width2040mm
Std. track shoe width450mm
Track gauge1750mm
Min. ground clearance380mm
Tail swing radius1800mm
Roller gauge2195mm
Track length2820mm
Track height680mm
Operator eye level2295mm
Cab top length1515mm
Tail length1040mm
Counterweight ground cleararice790mm
Length (without working device)3095mm
Ground length (transportation)3735mm
Counterweight clearance1715mm
Blade height405mm
Max. digging height7060mm
Max. dumping height5155mm
Max. digging depth4020mm
Max. vertical digging depth3290mm
Max. digging reach6240mm
Min. swing radius1720mm
Boom height at min.swing radius5550mm
Max. ground clearance of Bulldozer blade350mm
Max. sinking depth of bulldozer blade360mm
Engine model4JG1-NABGB-04-C2
Engine rated power40.9/2,100kW/rpm
Engine max.torque191/1800N*m/rpm
Engine displacement3.059L
Engine start motor24/3.2V/kw
Engine generator30V/A
Boom cylinders bore X stroke110×885mm
Arm cylinders bore X stroke90×900mm
Bucket cylinders bore X stroke80×730mm
Bulldozer blade cylinders bore X stroke130×145mm
Overall weight7280kg
Bucket capacity0.28m3
Bucket digging force56kN
Arm digging force38kN
Tractive force58kN
Travel speed (high/low)4.4/2.4km/h
Swing speed11.5rpm
Gradeability70%/35°
Ground pressure33kPa
Fuel tank capacity150L
Hyd tank capacity120L
Engine oil capacity9.6L
Engine coolant capacity6.5L
Final drive capacity2×1.2L
Track shoes(per side)39
Carrier roller(per side)1
Lower roller(per side)5
Boom length3.72m
Arm length1.62m
Bucket capacity (optional)0.16/0.38m3
