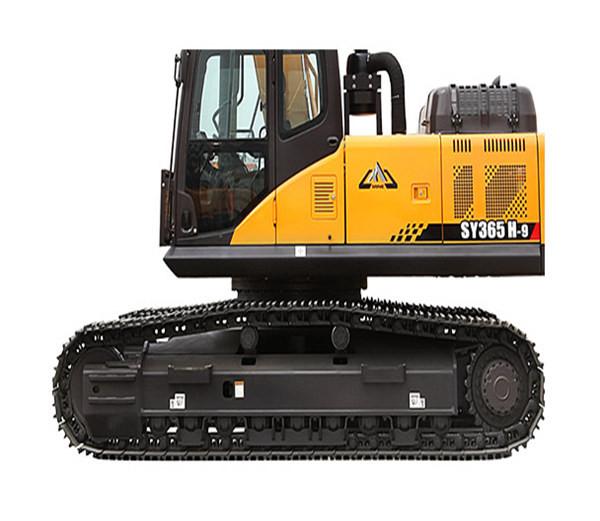

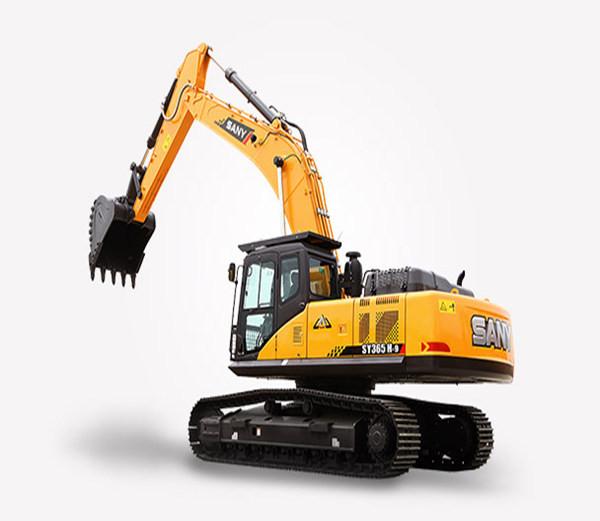

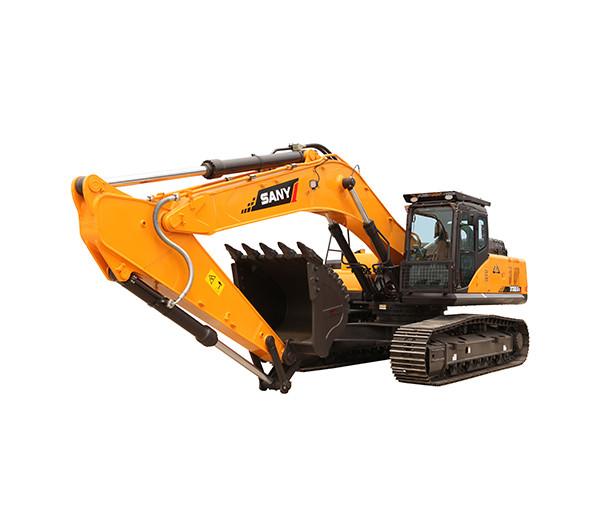

EURO 5 Hydraulic Crawler Excavator,1.6（rock bucket）m3,Engine AA-6HK1XQP-01 190.5/2000kW/rpm 872.8/1700N*m/rpm
Price:
Negotiable
MOQ:
1
Delivery Time:
Within 35 days
Brand:
CIVL
Product Description
Transport length11350mm
Transport width3190mm
Transport height3545mm
Upper body width3150mm
Height (cab height)3320mm
Std. track shoe width600mm
Track gauge2590mm
Min. ground clearance550mm
Tail swing radius3380mm
Roller gauge4140mm
Track length5065mm
Track height1080mm
Operator eye level2765mm
Cab top length1950mm
Tail length3300mm
Counterweight ground clearance1250mm
Length (without working device)5885mm
Ground length (transportation)6540mm
Engine hood length2660mm
Counterweight clearance2280mm
Max. digging height9890mm
Max. dumping height6920mm
Max. digging depth7050mm
Max. vertical digging depth5180mm
Max. digging rreach10780mm
Min. swing radius4495mm
Boom height at min.swing radius8600mm
Engine modelAA-6HK1XQP-01
Engine rated power190.5/2000kW/rpm
Engine max. torque872.8/1700N*m/rpm
Engine displacement7.79L
Engine start motor24/5.0V/kw
Engine generator24/50V/A
Boom cylinders bore X stroke140×1480mm
Arm cylinders bore X stroke170×1725mm
Bucket cylinders bore X stroke150×1285mm
Overall weight35000kg

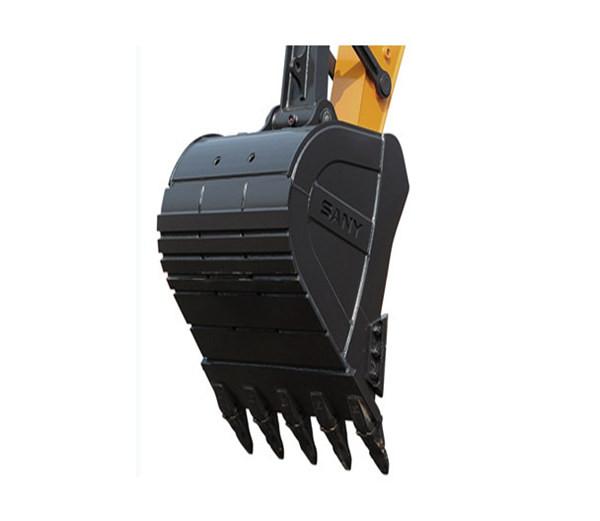

Bucket capacity1.6(rock bucket)m3
Bucket digging force235kN
Arm digging force180kN
Tractive force320kN
Travel speed (high/low)5.5/3.5km/h
Swing speed9.5rpm
Gradeability70%/35°
Ground pressure63kPa
Fuel tank capacity620L
Hyd tank capacity380L
Engine oil capacity36L
Engine coolant capacity20L
Final drive capacity2×8.5L
Swing drive capacity10.5L
Track shoes(per side)49
Carrier roller(per side)2
Lower roller(per side)9
Boom length6.5m
Arm length2.9m
Counterweight6800kg
Track shoe width (optional)800/700mm
Bucket capacity (optional)1.5/1.8m3
