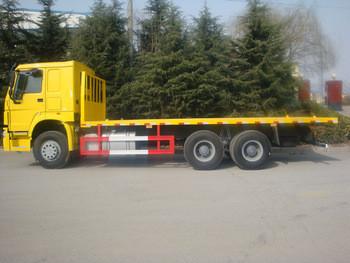

Tipper SHMC3253 Flat International Dump Truck Wheelbase ( mm) 3400+1350
The flat dump truck 's characteristic as below
The method of self-discharging for the cargo box is rear dumping.The material of the side and rear lower protection device is Q235A.Connection: side protection for the bolt connection, the rear of the protection for the welding.The section size of the rear lower protection device is (w * h): 100mm * 50mm, the height of the ground is: 550mm. new type cab mask is optional along with chassis .The product should be installed travel recorder.
| Vehicle Name | Flat dump | ||
| Vehicle type | Tipper | ||
| Vehicle model | SHMC3253 | ||
| Type of fuel | Diesel | Box(L/W/H) | 5200×2400× |
| Overall dimensions(L/W/H) | 7360×2490×3420 | Payload capacity(kg) | 3 |
| Total weight(Kg) | 25000 | Permitted capacity(kg) | 12670 |
| Curb weight(kg) | 12200 | Front passenger(Person) | 2 |
| Approach/departure angle | 20.5/27 | Front/rear Overhang | 1320/1290 |
| Wheelbase(mm) | 3400+1350 | Axle load | 7000/18000 |
| Axel nos | 3 | Max.drive speed(km/h) | 75 |
| Tyre nos | 10 | Spring nos | 10/12,10/- |
| Steering model | Steering wheel | Tire typ | 11.00-20 18PR,11.00R20 18PR,12.00-20 18PR,12.00R20 16PR |
| Front wheel track | 20,471,995 | Rear wheel track | 1820/1820,1850/1850 |
| Chassis standard | GB17691-2005EUROⅢ,GB3847-2005 | ||
| Identification code | LZZAELMC××××××××× LZZAELNC××××××××× | ||
