Axle load 6500/7000/17500 Heavy Duty Dump Truck Max . drive speed (km/h) 75
The dump truck 's main characteristic as below

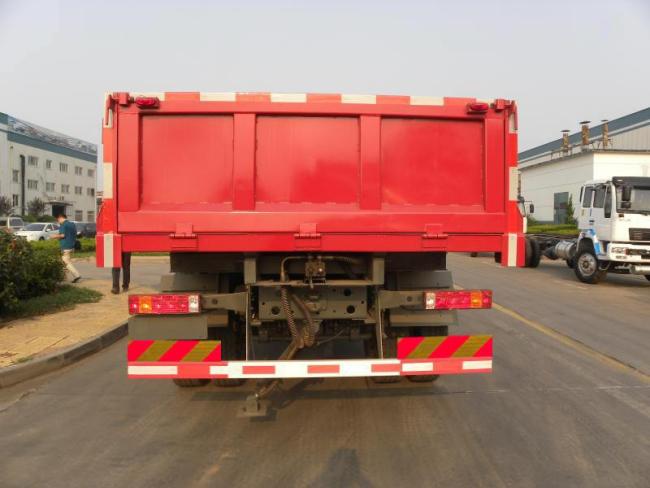

The method of self-discharging for the cargo box is rear dumping.The material of the side and rear lower protection device is Q235A.Connection: side protection for the bolt connection, the rear of the protection for the welding.The section size of the rear lower protection device is (w * h): 100mm * 50mm, the height of the ground is: 550mm. new type cab mask is optional along with chassis .The product should be installed travel recorder.
| Vehicle Name | Dump Truck | ||
| Vehicle type | Tipper | ||
| Vehicle model | SHMS3310C | ||
| Overall dimensions(L/W/H): | 11105*2490*3450 | Type of fuel | Diesel |
| Total weight(Kg) | 31000 | Box(L/W/H) | 8400*2300*950 |
| Front passenger(Person) | 2 | Payload capacity(kg) | 3 |
| Curb weight(kg) | 15410 | Permitted capacity(kg) | 15460 |
| Approach/departure angle | 20.5/23 | Front/rear Overhang | 1320/2035 |
| Wheelbase(mm) | 1800+4600+1350 | Axle load | 6500/7000/17500 |
| Axle nos | 4 | Max.drive speed(km/h) | 75 |
| Steering model | Steering wheel | Spring nos | 14/13,/14/13/12,11/11/12,4/4/-,11/11/- |
| Tire nos | 12 | Tyre type | 11.00-20 18PR,11.00R20 18PR,12.00-20 18PR,12.00R20 18PR |
| Front wheel track | 2047/2047,1995/1995 | Rear wheel track | 1820/1820,1850/1850 |
| Chassis standard | GB17691-2005EUROⅢ,GB3847-2005 | ||
| Identification code | LZZAEXMF****** LZZAEXNF****** | ||
Tipper truck, tipper, dumper, dumper truck, side tipper truck, side dump truck, front lift tipper truck, side lift dumper,6 tires tipper, 10 tires tipper, 10T tipper truck, 25 T dump tru
ck,heavy dump truck
