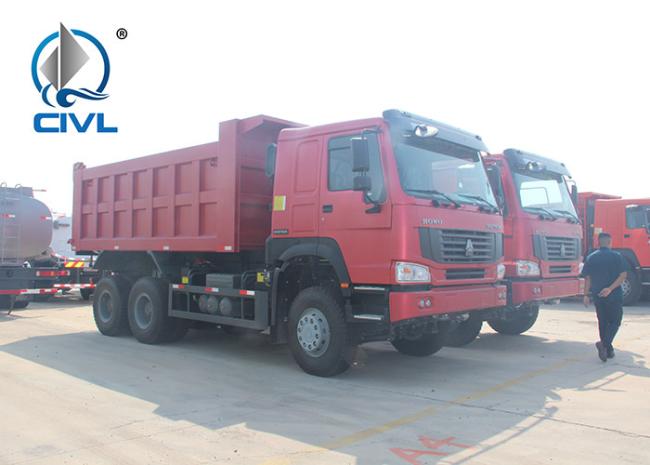

Diesel Euro II Engine Heavy Duty Dump Truck 6X4 Tipper Truck Sand Transport Vehicle Wheelbase (Mm)3825+1350 Good Price
The Sand transport vehiclemain's parameters as below

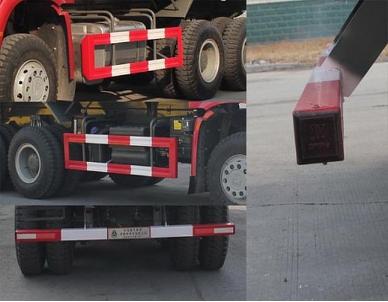

For rear dump dump. The protective material is Q235, and the side protection connection mode is bolt connection, and the rear protection bolt is connected with the rear end of the vehicle frame. The rear section size is 100mm * 100mm, and the height of the ground is 550mm. With the optional chassis cab. The tail of a sand outlet is optional. ABS system model is 4460046300
Specification:
| Vehicle name | Sand transport vehicle | ||
| Vehicle type | Special vehicle | ||
| Vehicle model | SHMC5257TYAD | ||
| Engine displacement | D10.28-40 | Engine power | 206 |
| D10.31-40 | 228 | ||
| Engine displacement | 9726 | Engine manufacturers | SINOTRUCK |
| 9726 | |||
| Overall dimensions(L/W/H) | 8415*2500*3235 | Type of fuel | Diesel |
| Total weight(Kg) | 25000 | Payload capacity(kg) | 3 |
| Curb weight(kg) | 13800 | Permitted capacity(kg) | 11070 |
| Spring nos | 10/-,10/12 | Front passenger(person) | 2 |
| Approach/Departure angle | 19/27 | Front/Rear overhang | 1500/1740 |
| Wheelbase(mm) | 3825+1350 | Axle load | 7000/18000 |
| Axle nos | 3 | Max. drive speed (km/h) | 80 |
| Tyre nos | 10 | Tyre specification | 11.00-20,11.00R20,12.00-20 18PR,12.00R20 16PR |
| Front wheel track | 20,222,041 | Rear wheel track | 1830/1830 |
| Steering model | Steering wheel | ||
| Chassis standard | GB17691-2005EURO IV,GB3847-2005 | ||
| Identification code | LZZ1ELMD****** LZZ1ELND****** | ||
CIVL GROUP is committed to international trade and cooperation.
We hope to enable customers around the world to create more value and wealth
through our quality products and professional solutions.
We value the friendship and partnership!
Other products:
Truck series:
1. Dump trucks; cargo trucks (1-120ton)
2. Tractor trucks; (1-120 tons)
3.Tanker trucks,( 54873020, 54798871, 54798867, 54633157, 54622108, 54621778, 54621524, water tanker and oil tanker)
4. Mixer trucks and concrete pump truck
5. Mine dump trucks( 30 tons off-road mine tipper, 50tons/70tons mine dump truck, 6x6 articualted dump trucks)
6. Off-road drive trucks( 4x4. 6x6 and 8x8 Trucks)
7. Garbage trucks( garbage compactor truck, suction trucks)
8. Truck mounted cranes(normal road truck crane, truck mounted crane)
9. Special trucks( wrecker trucks, military trucks...)
10.Semi trailers( container semi-trailer, low-bed semi-trailer, tanker trailer, dumper trailer...)
11.Truck spare parts
Machine series:
1.Wheel loader,Backhoe loader
2.Roller
3.Motor Grader
4.Bulldozer
5.Excavator
6.Crane(truck crane,crawler crane,truck mounted crane,self erecting crane)
7.Forklift and 45t contain reach stacker
8.Paver and so on
9. Spare parts
Dump: Tipper truck, tipper, dumper, dumper truck, side tipper truck, side dump truck, front lift tipper truck, side lift dumper,6 tires tipper, 10 tires tipper, 10T tipper truck, 25 T dump tru
ck,heavy dump truck,
