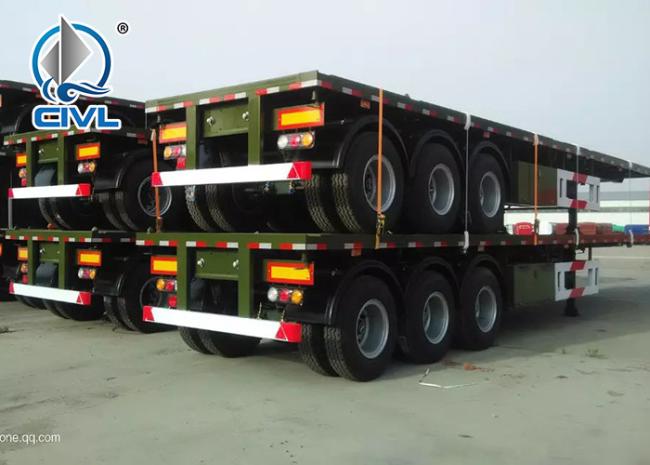

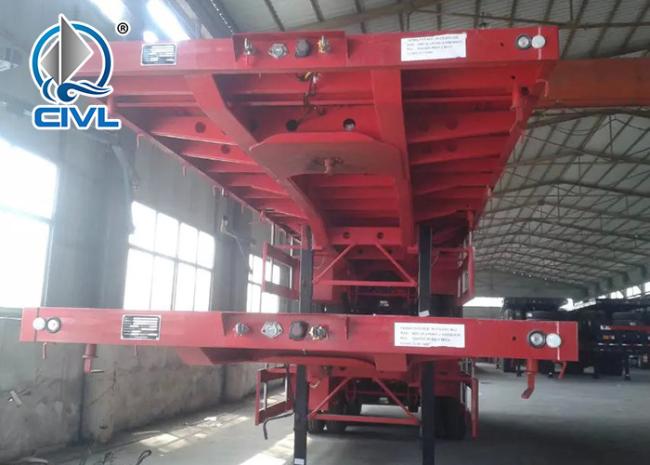

3 Axle Flatbed Semi Trailer With 28T Single Speed Leg And Guangdong Fuwa Brand Axles Demission Is 12400X2450X1280mm
Description:
As a mature and famed manufacturer of semi-trailer in China. We are specialized in
this field for many years.
The flatbed trailer is mostly used for the transportation of sea container, as well as other loads such as woods, commodity, vehicles, wagons, etc. We can supply supply both 20 feet and 40 feet container flatbed semi-trailers. The trailer could be flatbed and skeletal, 2 axle and 3 axle according to different demands. The high quality material also perfects the function of products and the stability, safety and large capacity during transportation.
Specification
| Specification | |
| Name | 3 AXLE CONTAINER TRAILER |
| Overall dimension | 12400X2450X1280mm |
| Total weight (kg) | 39900 |
| Tare weight (kg) | 6300 |
| Rate loading weight (kg) | 33600 |
| Wheelbase (mm): | 6960+1310+1310 |
| King pin | 90# / 3.5 inch |
| The upper wing plate | 14mm |
| Web | 8mm |
| The lower wing plate | 16mm |
| Support leg | 28T Single speed |
| Tire | 9.00-22.5*12pcs |
| Axle | Fuwa brand 13T *3pcs |
| Tool box | one piece |
| Spare tire | one piece |
| Air chamber | Four double and two single |
| No ABS | |
Tag: container semi-trailer, flat container semi-trailer, flat bed trailer, flat bed semi trailer, platform semi trailer, tractor trailer, flat semi trailer
