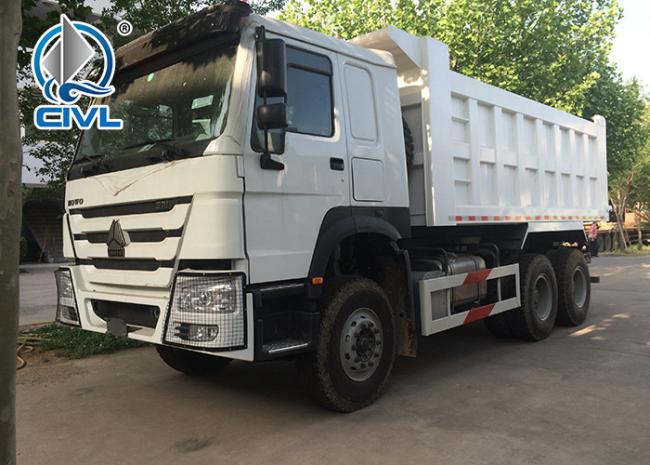

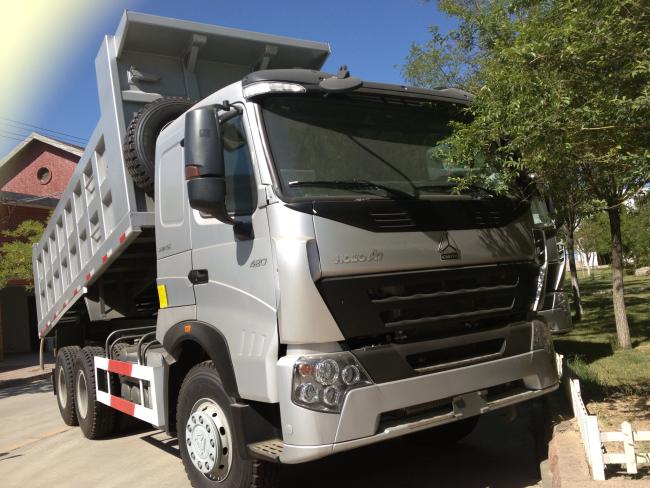

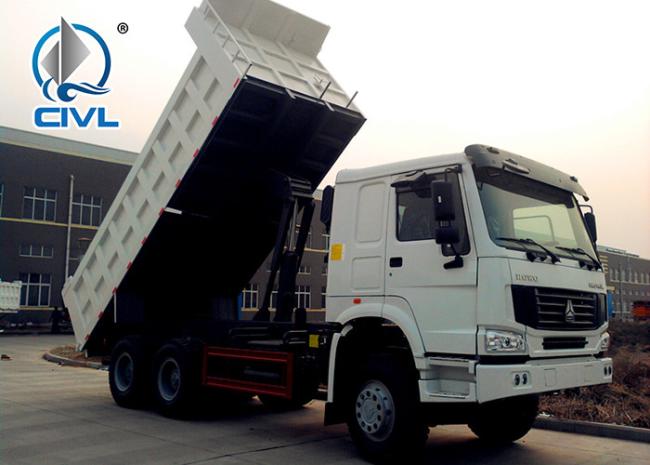

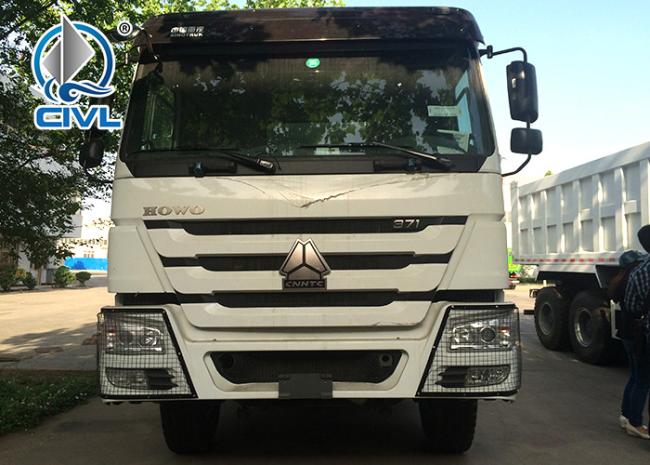

2021 New Sinotruk HowoA7 Dump Tipper Truck High Fuel Efficiency 21-30 Tons 6x4 10 tires with 1 spare
| Product Name: | Tipper Dump Truck | Model: | ZZ3257N3847N1 |
|---|---|---|---|
| Drive Type: | LHD 6X4 | Emission Standard: | Euro 2 |
| Engine: | WD615.69, 336HP | Cargo Body: | 5800*2300*1500mm |
| Loading Capacity: | 30-40tons | Cabin: | A7-W |
| Thickness Of Cargo Body: | Bottom: 16mm Side:12mm | Hydraulic System: | China Brand |
Specifications:
| SINOTRUK HOWO A7 Dump Truck LHD 6x4 White color 30 - 40tons for Mining business | ||||
| Model | ZZ3257N3847N1 | |||
| Drive Type | 8×4 | |||
| Engine |
|
|||
| Cabin | A7-W lengthened cab(with one sleeper, air-conditioner and new-style seat) | |||
| Transmission | HW19710(10 forwards & 2 reverses) | |||
| Front Axle | 1×HF9 ( 9 Tons) | |||
| Driving Axle | HC16, 16Tons | |||
| Steering | ZF8118 hydraulic steering with power assistance. | |||
| Clutch |
Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance |
|||
| Rim/ Tire | 11.00R20,12.00R20,12.00R24 Radial tire | |||
| Wheel base | 3800+1350(mm) | |||
| Overall dimension | 8575×2496×3450(mm) | |||
| Cargo body | 5800×2300×1500(mm),Bottom:8mm, Side:6mm | |||
| The curb weight | 12300(Kg) | |||
| Gross weight | 25000 kg | |||
| Max. speed | 75km/h | |||
| Color | White, red, green, golden and so on. | |||
Applications:
working for Mining industry, Construction business, docks, to transport soil, sand, stones and so on.
Competitive Advantage:
1)fast delivery time, we can arange production according to your needs exactly and
quickly
2) professional import and export dealing precedure, make customs clearance more high efficiency
3)competive price, cost-effective
4)quick and efficient spare parts supply bring you more convenient
5)low fuel consumption
6) strong enough engine
7)Optimized cargo body structure,light weight,high rigidity,large loading capacity
8)Using the high strength steel,it has long service life
9)Optimized the sealing structure has the better sealing effect.
10)The intelligent hydraulic control system helps to avoid error operation, it has higher safety and
running efficiency.
11)Multiple box structures and device selections
12)with all kinds of truck model, which can fulfil your requirement
13)the key parts adopt the world's top technology products
14)based on strong technical support and top level technology make the trucks with high
quality and more reliable
Package&Shipping:
Service:
Pre-service:
- Inquiry and Consulting support.
- Sample testing support.
- View our factory.
- Design various solutions as buyer's requirement.
After-sale service:
- Training how to use and maintain the truck.
- Our engineers supply the support of technology.
- 12 months warranty for 3 key spare parts(Engine,Transmission,Axle)
- Parts supply on time.
- 24 hours service and technology support.
