Red Color LHD 6X4 Tipper Dump Truck Euro 2 336HP Engine HYVA Front Lifting
SINOTRUK HOWO Dump Truck Euro2 336HP LHD 10-25 CBM 30-40tons HYVA Front lifting
Description:
SINOTRUK HOWO Dump truck have the most production quantity, and also is the most famouse brand to abroad market.
HOWO-7 is SINOTRUK Group after two years of research and development, a new generation of heavy truck series using the 130 items of the latest patented technology, represents the highest level of domestic heavy duty truck markets.
As the positioning in the high-end heavy truck, safety performance can not be ignored. HOWO with ABS "front disc and drum" configuration, the vehicle stability to achieve the standard USB brake is one of the world's most high-end heavy truck, compared with drum brake which has a high speed, heavy load and high temperature characteristics when the braking efficiency is good. When the vehicle speed. To 80km/h, in the end I got test track unhurried on the brake pedal, the body is not under the strong inertial force obviously did not have a front brake head and braking deviation phenomenon, but in a slow, gentle attitude slow forward.
Specification:
| SINOTRUK HOWO Dump Truck Euro2 336HP LHD 10-25 CBM 30-40tons HYVA Front lifting | ||||
| Model | ZZ3257N3647A | |||
| Drive Type | 6×4 | |||
| Engine |
|
|||
| Cabin | HW76 lengthened cab(with one sleeper, air-conditioner and new-style seat) | |||
| Transmission | HW19710(10 forwards & 2 reverses) | |||
| Front Axle | 1×HF9 ( 9 Tons) | |||
| Driving Axle | HC16, 16Tons | |||
| Steering | ZF8118 hydraulic steering with power assistance. | |||
| Clutch |
Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance |
|||
| Rim/ Tire | 11.00R20,12.00R20,12.00R24 Radial tire | |||
| Wheel base | 3800+1350(mm) | |||
| Overall dimension | 8375×2496×3450(mm) | |||
| Cargo body | 5600×2300×1500(mm),Bottom:10mm, Side:8mm | |||
| The curb weight | 12200(Kg) | |||
| Gross weight | 25000 kg | |||
| Max. speed | 75km/h | |||
| Color | White, red, green, golden and so on. | |||

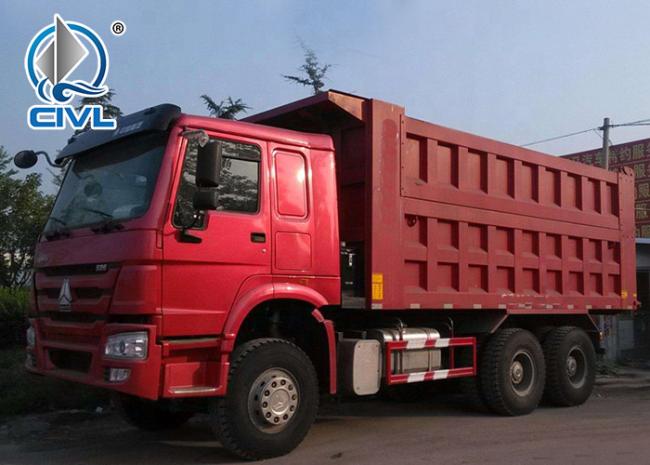

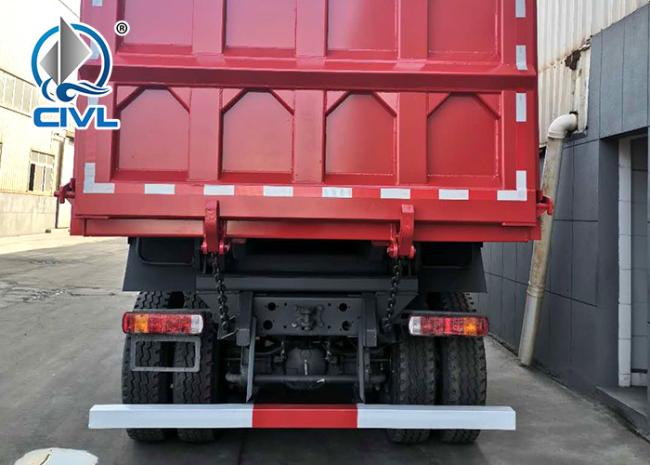

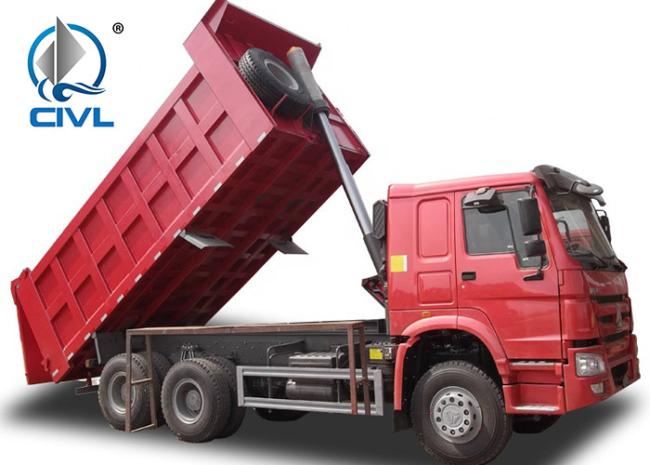

Photos:
Applications:
It used for Mining industry, Construction business, docks and so on.
Competitive Advantage:
1) all kinds of cargo body structure can be designed and produced according to your request,
make it have light curb weight , high rigidity , high loading capacity
2) The optimized hydraulic control system helps to avoid wrong operation, it has higher
safety and running efficiency.
3) reliable quality
4) good after slaes service, which can send engineers for traning and maintainance
5) low fuel consumption
6) strong enough engine
Service:
Pre-service:
- Inquiry and Consulting support.
- Sample testing support.
- View our factory.
- Design various solutions as buyer's requirement.
After-sale service:
- Training how to use and maintain the truck.
- Our engineers supply the support of technology.
- 12 months warranty for 3 key spare parts(Engine,Transmission,Axle)
- Parts supply on time.
- 24 hours service and technology support.
