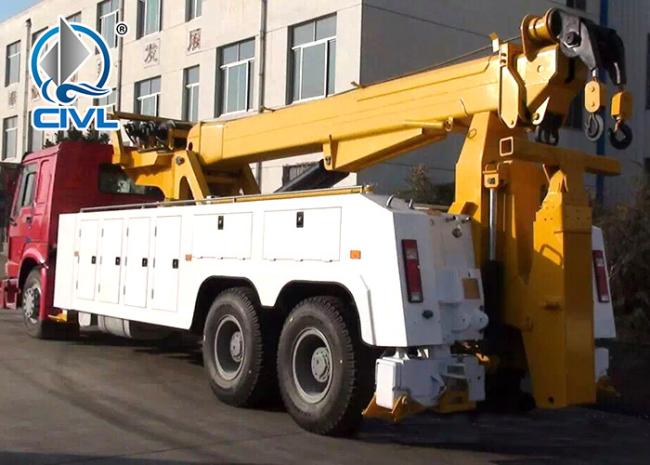

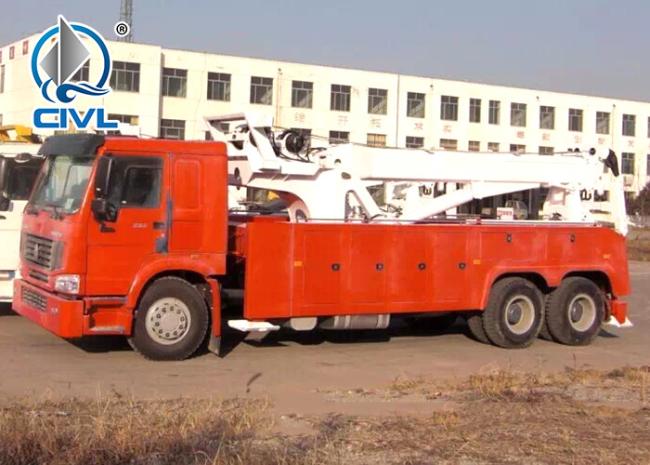

EuroII HW76 Cabin 6x4 10 Wheels 20 Ton Heavy Wrecker Tow Truck SINOTRUK HOWO ZZ1317N4667C
| Drive Way: | 6x4 | Load Capacity: | 20ton |
|---|---|---|---|
| Fuel: | Diesel | Gear Box: | HW13710 |
| Chassis Model: | CVZZ1317N4667C | Axle Base: | 1800+4600+1350mm |
6x4 10 wheels 20 ton heavy wrecker trucks SINOTRUK HOWO CVZZ1317N4667C
Features:
Comfort: Howo brand cab, the design is more fashion and beautiful, make the driver more comfortable when driving.
Security: Imbedding in one time makes the main beam stronger. High strength makes it more safe and reliable.
Effective: Save more oil, attendance is high. And the mixing volume of tank is huge, with the huge horse power engine, can be adapted into all kinds of construction field.
Wrecker truck's arm, boom all use high-strength steel, through the bending shape. Carbon dioxide automatic protection welding, only allow two welds, weld less deformation small, high precision, high strength, and after ultrasonic testing. Wrecker welding all use carbon dioxide welding and argon arc welding, the weld length is greater than 300mm, the use of automatic sewing, but also the weld surface is smooth and beautiful.
Specifications:
| Boom | Max. lifting mass Kg | 30000 |
| Extension Stroke mm | 66000 | |
| Max. Lifting Height mm | 11500 | |
| Max. Inclination Angle | 50 | |
| Rotating Angle | 360 | |
| Number of Stages | 3 Stages | |
| Under lift | Original Lifting Mass Kg | 20000 |
| Rating Lifting Mass Kg | 12000 | |
| Rating Lifting Mass Fully Extended Kg | 7200 | |
| Max. Effective Length mm | 3778 | |
| Extension Stroke mm | 2090 | |
| Range of Inclination Angle | 1093 | |
| Outriggers | Longitudinal Span between Front Outrigger and Rear Outrigger (mm) | 7350 |
| Transverse Span of Front Outriggers (mm) | 6500 | |
| Transverse Span of Rear Outriggers | 4224 | |
| Rating Towing Mass Kg | 38000 | |
| Rating Pulling Power of Winch KN | 150*2or(100*2) | |
| Length of Cable Wire m | 40 | |
| Model: | ZZ1317N4667C |
| Number of Tire: | 12 |
| Engine Model: | WD615.93E |
| Engine Power; | 336HP;255KW |
| Transmission Model | HW13710 |
| Tire model | 12.00 |
| Wheel base | 1800+4600+1350 |
Trucks/ Heavy Trucks/Heavy Duty Truck/Special Vehicles/Tipper/Dumper/Dump Truck/Dump Tipper/Tipper Truck, Special Dump Truck/Tractor Truck/Trailer/Prime Mover/Semi Trailer/Special Trucks/Lorry/Cargo Truck/Van/Goods Vehicles/Lorry Truck/Concrete Mixer/Cement Mixer/Mixer Truck/Truck Mixer/Concrete Pumper/ Concrete Mixer Truck/Mini Truck/P/Transporter/Water Tank/Tank Truck/Oil Tank/Powder Tank /HOWO Refuelling Truck/Water Tank Truck/Sprinkler/Road Sprinkler/Road Sweeper/Terminal Truck/Terminal Tractor/Garbage Compactor/Garbage Truck/Refuse Compactor/Bulldozer/Wheel Loader/Grader/Excavator/ Crane/Truck/Truck Crane/Refrigerated Truck/Nsulated Truck/Box Truck/Mobile Telecommunication Truck/Special Automobiles/ Low Bed Trailer with Two Axles/40‘ Contrainer Trailer/
Workover Rig Chassis For Oil Field/ Powder Material Transportation Truck, Wood Transportation Truck, Vehicle Crane,
