6x4 SINOTRUK Heavy Duty Dump Truck HOWO DUMP TRUCK 20T EURO II/III
6x4 SINOTRUK Heavy Duty Dump Truck HOWO DUMP TRUCK Euro 2 20T EURO II
Hw76 cabin, single sleeper, all-steel forward control, 70° hydraulically tillable to the front, 2-arm windshield wiper system with three speeds,laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, exterior sun visor, adjustable roof flap, stereo ratio/cassette recorder, safety belts, adjustable steering wheel, air horn, airconditioner, with 4-point support fully floating suspension and shock absorbers.
Specification:
| Item | SINOTRUK HOWO DUMP TRUCK 6x4 |
| Truck model | CVZZ3257M3247W/ZZ3257N3647A |
| Max driving speed: |
50km/h
|
| Engine model | 290/336HP, EURO II |
| Carriage internal size: |
4100/4200/4800/5100/5200*2300*800*1200/1350/mm;volume:13-15m3 Thickness: bottom 8/10/12mm, sides: 4/6/8/10mm |
| Front Axles | HF12, 12000KG |
| Rear Axles | HC16, 16000kg |
| Steering | ZF8098, GERMANY |
| Tires | 12.00R20 Radial tire Option: nylon tire |
| Air conditioner | With safety belts for driver and co-driver |
| Transmission | HW15710/ HW19710, 10F&2R |
| Export Markets |
South America, Southeast Asia, Africa, Mid East, Eastern Asia |
|
Loading Capacity |
8-20t
|
| Driver's Cab | No sleeper/one sleeper/ two sleepers, VOLVO TECHNOLOGY |
| Hydraulic Lift of Carriage | T model (ventral lift)/ front lift |

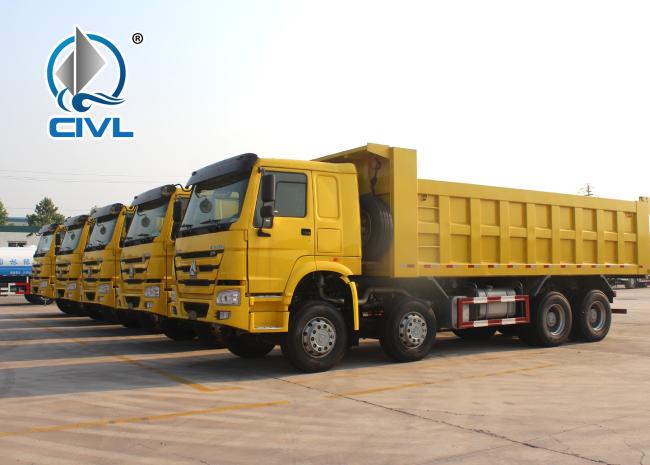

Details photo:
Other Truck and trailer can be provide according to your request, freely contact me for the informations and quotations.
Pre-service:
- Inquiry and Consulting support.
- Sample testing support.
- View our factory.
- Design various solutions as buyer's requirement.
After-sale service:
- Training how to use and maintain the truck.
- Our engineers supply the support of technology.
- 12 months warranty for 3 key spare parts(Engine,Transmission,Axle)
- Parts supply on time.
- 24 hours service and technology support.
FAQ:
Q: I want to transport the truck by container, is it ok?
A: Yes, it is ok .But we need take apart the truck.You should reinstall in your country.
Q:How about your product quality?
A: All our spare parts are from the original manufacturers, the quality is 100% guaranteed.
