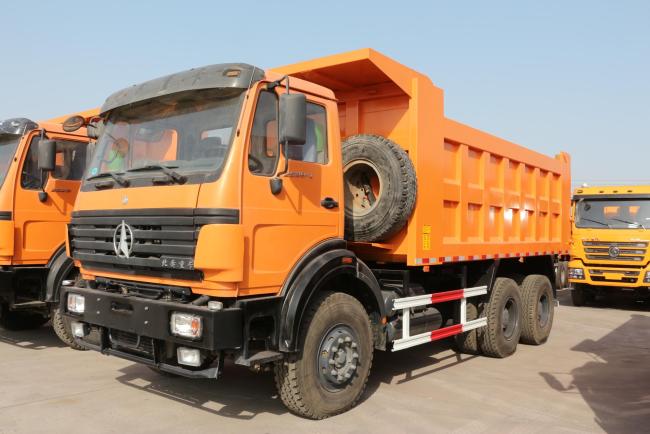

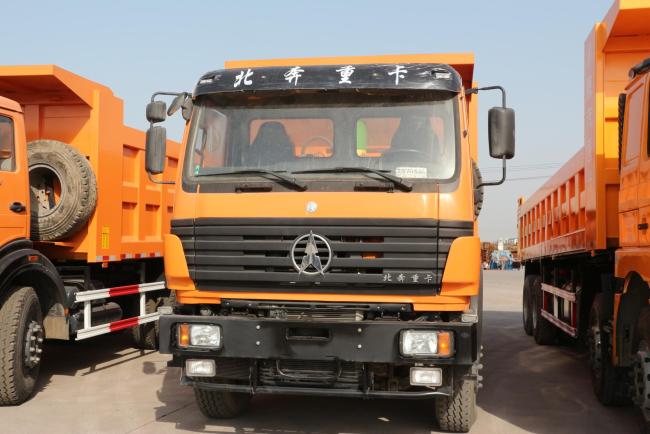

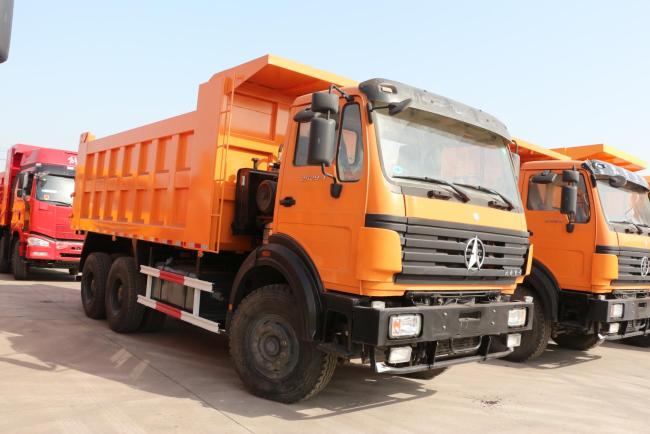

Beiben famous brand 6x4 style 20T Heavy Duty Dump Truck 10 Forwards 2 Reverse
Beiben famous brand 6x4 style 20T dump truck new condition
| GVW25000kg Driving Type 6x4 | ||
| Model | CLW5250ZLJN | |
| Cab | NG80 single row, allowable 2 passengers, air conditioner | |
| Engine(Hp) | 290 | |
| Power(Kw) | 213 | |
| Wheelbase | 3800+1350 | |
| Front/Rear Suspension | 1410/1750 | |
| Steering | Power steering | |
| Approach/departure angle | 17/16 | |

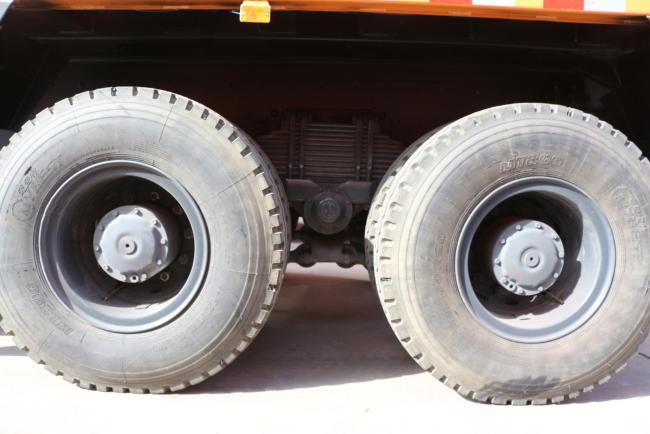

| Wheels & tire | 12.00R20 | |
| Tire number | 10+1 | |
| Tank Dimensions(mm) | 5400,5600×2300×1500 | |
| Cubage (m3) | 18/20 | |
| Steel thickness | Side 6 ,Bottom 8 | |
| RHD or LHD | optional | |
| Overall Dimensions(mm) | 8400,8600×2500×3450 | |
| Curb weight (Kg) | 12300 | |
| Engine | Model | WP10.290 |
| Horsepower | 290 | |
| Maximum output Kw | 213 | |
| Maximum torque N.m | 1250 | |
| Type | 6cylinders, in-line,4-stroke,direcly injection, turbo inter-cooling, diesel engine | |
| Displacement | 9.726L | |
| Weichai brand, Euro 3 | ||
| Driving passenger | 2,3 | |
| Transmission | 10 forwards,2 reverse | |
| Front Axle | 7.5T | |
| Rear Axle | 13T | |
| Brake System |
air brake exhaust brake |
|
| Color and LOGO | customized | |
| Electric system | 24V | |

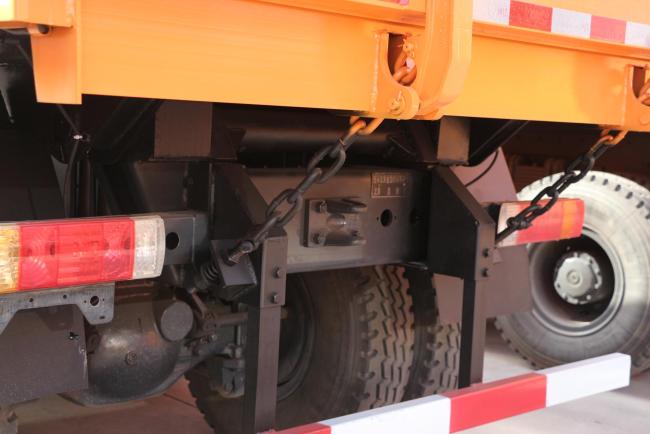

| Standard configuration | The dump is unloaded from behind, hydraulic cover is optional. The side protection using cold-formed steel /Q235-A, bolt connection. The back protection using cold-formed steel /Q235-A, welding connection. Side 6mm, bottom 8mm. | |
| Delivery date | Within 20 days after receipt advance | |
| Packing | Nude Pack .The packing of the commodity shall be in accordance with the export standard packing of the manufacturer, be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture, shocks and rust according to the special needs of the commodity. | |
1.The main machine nude, attached parts and tools put into standard export box
2.Within 20 days deliver the goods to main Port

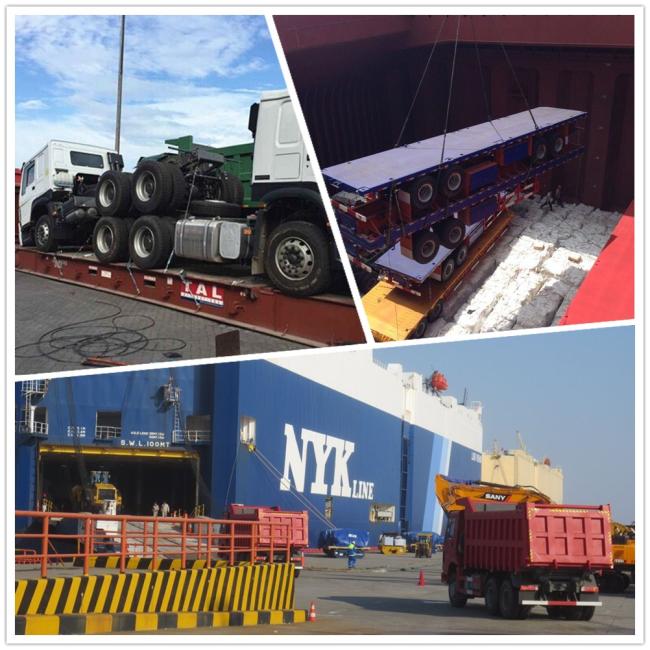

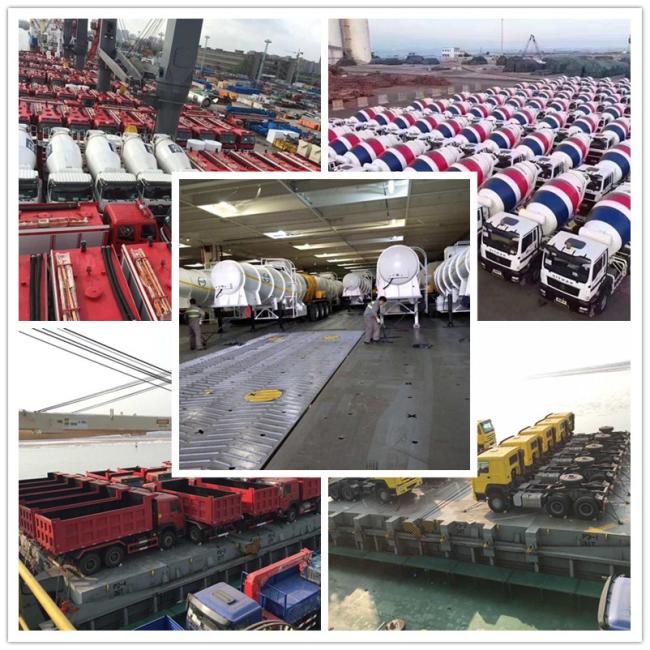

3. Ro-Ro ship or bulk ship or according to customer requiring
4.We have professional forwarding partners
