New Heavy Duty Dump Truck 6x4 371hp 30 Ton Tipper Truck Wheel Base 3825 + 1350mm HOWO dump truck with good price
SINOTRUK 6x4 371hp 20 Ton Tipper Truck Sale Howo Dump Truck competitive Price high-performance
Quality is our culture and with best price,with us , your business is safe, your money is safe, this is Alina, hoping we can be good friends.
According to clients' requirements, we can customize different loading capacity and volume.
The popular dump truck models include: sinotruck HOWO 371hp 6X4 10 wheel 16 cubic meters dump truck, sino truck 371hp 10 wheeler 40 tons 20 cubic meters dump truck, SINOTRUK howo 8X4 12 wheeler 40tons end dump truck and so
.is located in Jinan city, Shandong Province, P. R. China. It is the cradle and leading production base of the heavy-duty truck industry in China. It is famous for developing and manufacturing SINOTRUK HOWO tractor trucks, dump trucks, fuel tanker trucks, cargo trucks and concrete mixer truck, water spraying trucks etc
Specification:
| Model | 6x4 dump truck Based on technology | ||
| Cabin | Four point s suspension Cabin with spring and air shock absorber, Adjustable steering, Sun cover, Safety belt, short cabin without sleeper | ||
| Engine | Type: Diesel 4-stoke Direct injection,6-cylinder in line, Turbo-charging, Inner cooling. | ||
| Model: | WD615.47 | technology(CNHTC) | |
| Engine power | 371HP/273kW | ||
| Displacement(L): | 9.726liter (Euro 2 standard) | ||
| Max torque: | 1450NM@1100-1600rpm | ||
| Bore/stoke: | 126mm/130mm | ||
| Fuel consumption | 198g/kW.h | ||
| Gear box | CNHTC | Max torque:1900NM | |
| Model: | HW19710 | ||
| Speed: | 10speed, 2reverse | ||
| Axle(front/rear) | |||
| Front axle | HF9 technology front steering axle | ||
| Tandem | HC16 technology double reduction hub reductor driving axle | ||
| Clutch | D430 diaphragm type clutch | ||
| Brake | Service brake: Dual lines air brake | ||
| Parking brake: Spring-Power drum brake | |||
| Engine brake: Engine exhaust brake(EVB) | |||
| Steering | Power steering, driver sit at the Left hand side (LHD) | ||
| Electric Equipment | |||
| Operating voltage: | 24Vnegative grounded | ||
| Starter: | 24V,5.4KW | ||
| Alternator | 28V,758W | ||
| Battery voltage | 12V/135Ah | ||
| Frame | Strengthen steel frame, designed according to tough road condition. | ||
| Tyre | 10+1 spare tyre with rim | ||
| 12.00R20 radial tyre | |||
| Suspension system: Strengthen heavy duty Leaf spring type | |||
| Front/Rear | 10/12 | ||
| Dump body: type of body : | |||
| Inside size of Body(mm): 5200x2300x1500, 8mm (floor)x6mm (side), made of high intensity steel | |||
| Lifting type: Middle lifter T type hydraulic system | |||
| Overall dimension(mm): 7934x2496x3450(Length x width x height) | |||
| Wheelbase | 3825+1350mm | ||
| Track: | |||
| Front/Rear | 2022/1830/130 | ||
| Approach/Departure angle | 19/23 | ||
| Front /Rear overhang | 1500/1870 | ||
| Max speed | 75km/h | ||
| Kerb weight: | 12450kg | ||

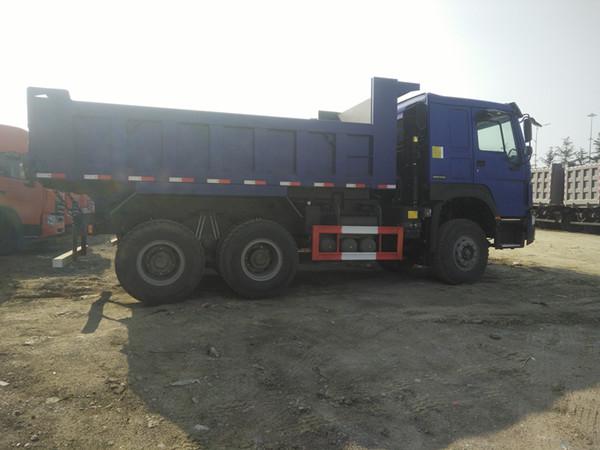

Detailed Pictures for SINOTRUK 6x4 371hp 20 Ton Tipper Truck Sale Howo Dump Truck competitive Price high-performance
Cabin Details for Sinotruck 40 tons Dumper Truck 6x4 336 371 420 HP 10 Wheel Tipper red
color good quality
Packing &Delivery
Shipment of Our 336 371 HP 6x4 Dump Truck
1. Flatrack container
2. By bulk ship
3. By RO-Ro ship : Pirce is high but protect the trailer very well
Other products:
Truck series:
1. Dump trucks; cargo trucks (1-120ton)
2. Tractor trucks; (1-120 tons)
3.Tanker trucks,( 54873020, 54798871, 54798867, 54633157, 54622108, 54621778, 54621524, water tanker and oil tanker)
4. Mixer trucks and concrete pump truck
5. Mine dump trucks( 30 tons off-road mine tipper, 50tons/70tons mine dump truck, 6x6 articualted dump trucks)
6. Off-road drive trucks( 4x4. 6x6 and 8x8 Trucks)
7. Garbage trucks( garbage compactor truck, suction trucks)
8. Truck mounted cranes(normal road truck crane, truck mounted crane)
9. Special trucks( wrecker trucks, military trucks...)
10.Semi trailers( container semi-trailer, low-bed semi-trailer, tanker trailer, dumper trailer...)
11.Truck spare parts
Machine series:
1.Wheel loader,Backhoe loader
2.Roller
3.Motor Grader
4.Bulldozer
5.Excavator
6.Crane(truck crane,crawler crane,truck mounted crane,self erecting crane)
7.Forklift and 45t contain reach stacker
8.Paver and so on
9. Spare parts
