Manual Transmission Heavy Duty Dump Truck Sinotruck howo 6x4 10 Wheeler 336hp Loading 30t
Drive Wheel:6x4
Capacity (Load):21 - 30t
Horsepower:251 - 350hp
Condition:New
Transmission Type:Manual
Fuel Type:Diesel
Engine Capacity:> 8L
Gross Vehicle Weight:25000
Place of Origin:Hubei, China (Mainland)
Brand Name:HINO
Model Number:YC3310FY2
Dimensions (L x W x H) (mm):7850*2495*3270
color:red
Port
SHANGHAI
Lead Time :7-15DAYS
1. Technical parameters of tipper truck.

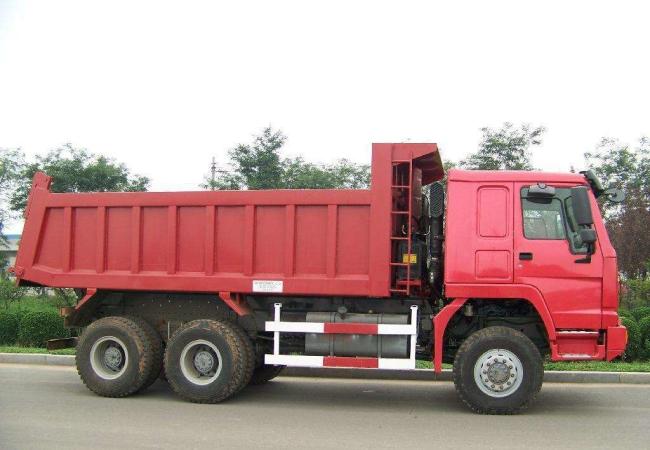

Sinotruck howo 6x4 10 wheeler trucks tipper truck 336hpk
| ITEM | UNIT | PARAMETER | ||
| Overall dimensions | mm | 8320×2490×3250 | ||
| GVW | kg | Appro×33920 | ||
| Curb weight | Appro×11920 | |||
| loading weight | Approx22000 | |||
| Wheel base | mm | 3800+1350 | ||
| F/R track base | 2022/1830/1830 | |||
| F/R suspension | 1320/1730 | |||
| Approach/departure angle | ° | 21/25 | ||
| Max speed | km/h | 90 | ||
| Tire specification | 12.00R20 / 11 Units | Number of axles | 3 | |
| Front Axle | HF7 | Rear Axle | HC16 | |
| Engine | Manufacturer | China National Heavy Duty Truck Group Co ., Ltd | ||
| Model | WD615.69 | |||
| Emission/kw | 9726ml/247Kw, 336hp | |||
| Emisssion standard | Eu 2 | |||
| Steering | Power, ZF8118 | Cab passenger | 3 | |
| Fuel tank | 400L | Fuel tank material | aluminium alloy | |
| Transmission | HW19710, 10F&2R | Electric System | 24v | |
| Air Condition | yes | CD, Radio, MP3 | ||
| Box dimensions | mm | 5800x2300x1500 (plate side 6, bottom 8) | ||
| Standard configuration |
1, Front and rear axles enhanced leaf spring (10/12) 2, Direct type and power PTO 3, Double frame 4, High bumper (metal) |
|||
|
The main products we deal with now are SINOTRUK HOWO, XCMG, SHANTUI, ZOOMLION and SANY. 1.dump trucks; cargo trucks Machine series: 1.Wheel loader,Backhoe loder, brick making machine 2.Roller, 3.Motor Grader, 4.Bulldozer, 5.Excavator, 6.Crane(truck crane,crawler crane,truck mounted crane,self erecting crane), 7,forklift and 45t contain reach stacker 8,paver and so on |
