CVZL50GN 5 Ton Articulated Wheel Loader With High Torque And High Efficiency Drive Chain
XCMG Official Manufacturer CVZL50GN 5ton articulated wheel loader
Description:
1,High torque and high efficiency drive chain features reasonable matching.
2,The 160kN traction force and ≥3.5m high dumping capacity handle the severe conditions with ease.
3,This engine meets the instant overload demand during operations and sufficiently provides the power required for heavy-load operations.
4,The air-assisted hydraulic four-wheel caliper brakes feature stable braking and high safety and reliability.
5,The easy and convenient daily maintenance ensure that the machine is under the best ready status at all times.
Specification:
|
ltem
|
Parameters
|
Unit
|
|
|
Rated load
|
5000
|
kg
|
|
|
Rated bucket capacity
|
3
|
m³
|
|
|
Total weight
|
17500
|
kg
|
|
|
Dumping height(from ground to main blade plste)
|
3090
|
㎜
|
|
|
Dumping distance(from the front wheel to main blade plate)
|
1130
|
㎜
|
|
|
Maximum breakout force
|
170
|
KN
|
|
|
Max.tractive force
|
165
|
KN
|
|
|
Lifting time of swing arm
|
≤6.5
|
s
|
|
|
Total cycling time
|
≤11
|
s
|
|
|
Minimum turning radius(outer edge of bucket)
|
7300
|
㎜
|
|
|
Minimum turning radius(tire center)
|
6400
|
㎜
|
|
|
Articulated angle
|
35
|
°
|
|
|
Gradeability
|
30
|
°
|
|
|
tire size
|
23.5-25
|
|
|
|
Overall demension of machine(L×W×H)
|
8165×3016×3485
|
㎜
|
|
|
Engine model
|
WD10G220E23
|
|
|
|
Rated power/rotate speed
|
162/2000
|
kW/r/min
|
|
|
Travel speed
|
Gear I(F/R)
|
0~11.5/0~16.5
|
km/h
|
|
|
Gear II(F)
|
0~38
|
km/h
|

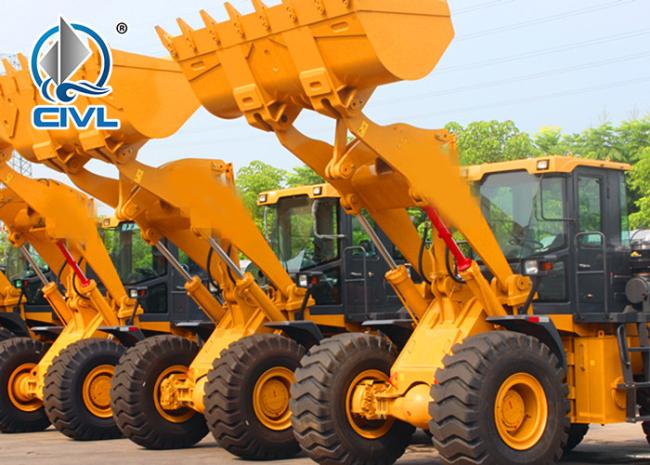

Detailed photo:
