Red 336hp 371hp 6x4 Tipping Dumper For Transport , 10 Wheeler Tipper Dump Truck
336hp 371hp 6x4 Tipping Dumper Sinotruk Howo 10 Wheeler Tipper Dump Truck
Description:
Production Name: Heavy Duty Dump Truck
HOWO-7 is SINOTRUK Group after two years of research and development, a new generation of heavy truck series using the 130 items of the latest patented technology, represents the highest level of domestic heavy duty truck markets.
From design concept to configuration, from the atmosphere to beautiful and practical and reliable, from the economy to the safety, comfortable, convenient, China's newly launched HOWO-7 heavy truck reflects the product development strategy China's one step ahead. As the crystal China heavy truck "technology leading strategy", HOWO-7 has not only become the pinnacle of domestic heavy truck also, will lead the China heavy truck industry to quickly advanced level in the world
Be comprehensive with Euro2 and Euro3 engine equipped.
Driving type: 4×2, 4×4 6×2, 6×6 ,6×4, 8×4 and so on. Power range: 266HP - 420HP.
High Level Comfortable:Cabin 4 point full -floating air suspension ,adjustable steering wheel with various heightsand angles.air suspension seat, Cruise Constant Speed System,MINI Player .electrical control glass and mirror,ATM Gearbox bunk with AC.
Specifications:
| Truck Model | ZZ3257N3647A (LHD) | ||||
| Truck Brand | SINOTRUK –HOWO | ||||
| Dimension(Lx W xH)(unloaded) | 8145x2496x3170 | ||||
| Cargo body size (L*W*H, mm) | 5400x2300x1200 | ||||
| Cargo body thickness(mm) | bottom:8mm, side:6mm, | ||||
| Lift type of Carriage | Ventral lifting | ||||
| Approaching angle/Departure angle(°) | 19/26 | ||||
| Overhang(front/rear) (mm) | 1500/1793 | ||||
| Wheel base (mm) | 3625+1350 | ||||
| Max speed(km/h) | 75 | ||||
| Curb weight(kg) | 12010 | ||||
| Loading Weight(kg) | 25000 | ||||
| Fuel tanker capacity | 300L with locking fuel cap | ||||
| Fuel consumption(L/100km) | 32 | ||||
| Clutch | Single-plate dry clutch Φ420mm | ||||
|
Engine Model ( technology, made in China) |
Model | WD615.69,4- stroke direct injection diesel engine, 6 cylinders in line with water cooling , turbo-charging and intercooling | |||
| Horse Power, max(kw/rpm) | 336HP,247/2200 | ||||
| Emission Standard | EURO II | ||||
| Transmission | Model | HW 15710,10 forwards and 2 reverse | |||
|
Brake system
|
Service brake | Dual circuit compressed air brake | |||
| Parking brake |
spring energy, compressed air operating on rear wheels
|
||||
| Auxiliary brake |
Engine exhaust brake
|
||||
|
Steering system
|
Model | ZF8118 hydraulic steering with power assistance | |||
| Front axle |
HF9 , Steering with double T-cross section beam Loading capacity:9000KG |
||||
| Rear axle | HC16, Casting axle housing, central double reduction with differential locks between axles and wheels | ||||
| Color | Optional | ||||
| Tire | 12.00R20 radial tyre | ||||
|
Electrical system
|
Operating voltage | 24V,negative grounded | |||
| Starter | 24V,7.35KW | ||||
| Alternator | 28V,1500W | ||||
| Batteries | 2*12V.165Ah | ||||
| Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light. | |||||

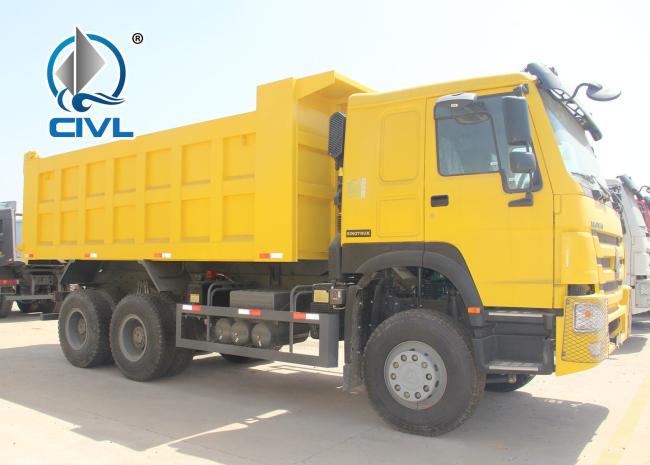

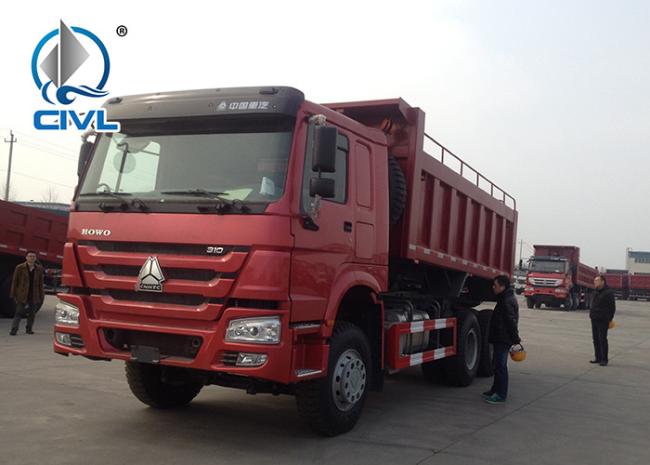

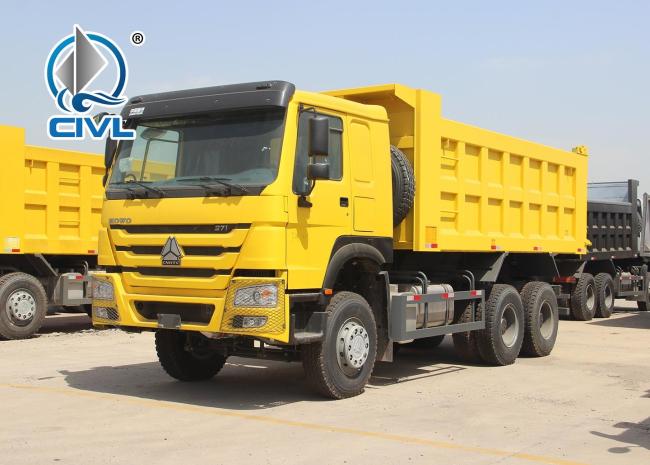

Detailed photo:
Other products:
Truck series:
1. Dump trucks; cargo trucks (1-120ton)
2. Tractor trucks; (1-120 tons)
3.Tanker trucks,( 54872076, 54841217, 54620638, 54605472, 54605299, 54605163, water tanker and oil tanker)
4. Mixer trucks and concrete pump truck
5. Mine dump trucks( 30 tons off-road mine tipper, 50tons/70tons mine dump truck, 6x6 articualted dump trucks)
6. Off-road drive trucks( 4x4. 6x6 and 8x8 Trucks)
7. Garbage trucks( garbage compactor truck, suction trucks)
8. Truck mounted cranes(normal road truck crane, truck mounted crane)
9. Special trucks( wrecker trucks, military trucks...)
10.Semi trailers( container semi-trailer, low-bed semi-trailer, tanker trailer, dumper trailer...)
11.Truck spare parts
Machine series:
1.Wheel loader,Backhoe loader
2.Roller
3.Motor Grader
4.Bulldozer
5.Excavator
6.Crane(truck crane,crawler crane,truck mounted crane,self erecting crane)
7.Forklift and 45t contain reach stacker
