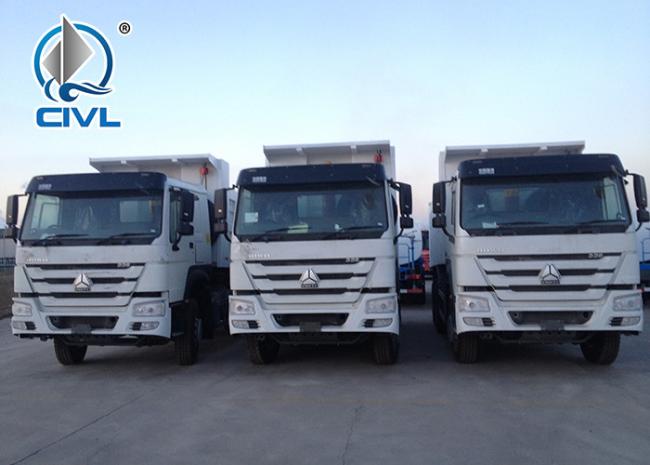

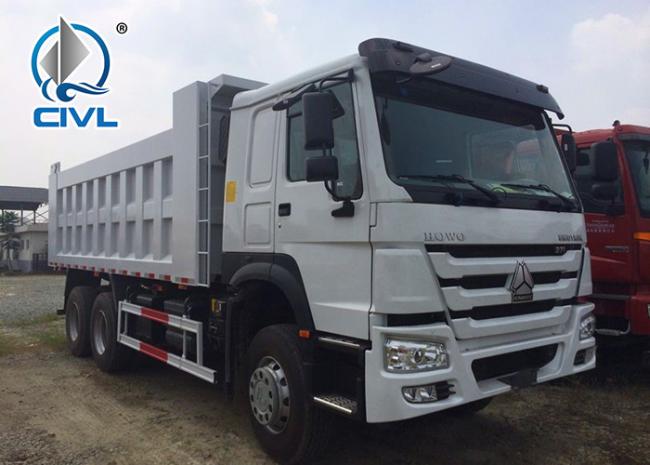

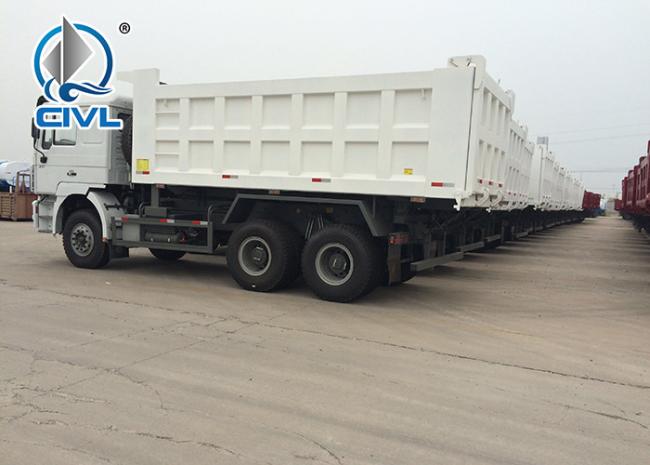

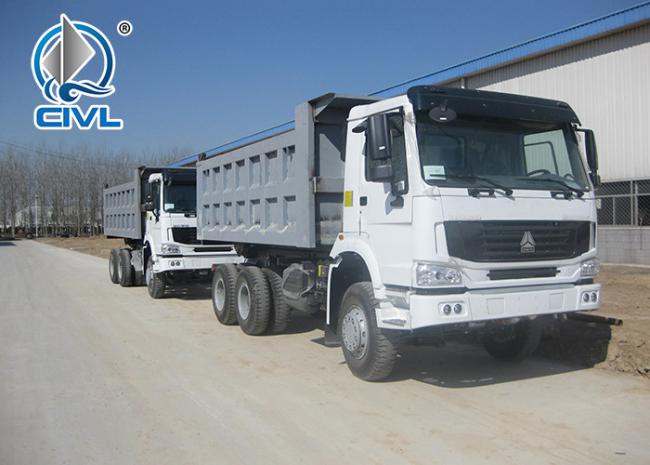

CIVL Sinotruk Howo 6x4 Dump Truck Multi Color Construction Dump Truck
CIVL Sinotruk Howo 6x4 Dump Truck / Multi Color Construction Dump Truck
COMPANY SERVICE
We, specialize in international supplements for 16 years.
Value your project! Beautify your city!
Highlight your country! Qualify your achievement!
Serve no limitation!
We, value the friendship and partnership!
SPECIFICATION:
| Dimension(L×W ×H)(unloaded)mm) | 7835×2496×3300 | |
| Cargo body size (L×W×H)(mm) | 5200*2300*1500mm | |
| Approaching angle/Departure angle(°) | 19/30 | |
| Overhang(front/rear) (mm) | 1500/1560 | |
| Wheel base (mm) | 3425+1350 | |
| Max speed(km/h)(km/h) | 75 | |
| Curb weight(kg) | 12390(Kg) | |
| Loading Weight(kg) | 12480(Kg) | |
|
Engine ( technology, made in China) |
Model | WD615.69 |
| Fuel type | Diesel | |
|
Displacement (ml) Power(kw) |
9726 247 |
|
| Emission | EURO 2 | |
| Fuel tanker capacityL) | 300 | |
| Transmission | Model | HW19710,10 forward&2 reverse |
| Brake system | Service brake | Dual circuit compressed air brake |
| Parking brake | spring energy, compressed air operating on rear wheels | |
| Steering system | Model | ZF |
| Front axle | Steering with double T-cross section beam | |
| Rear axle | Pressed axle housing, central double reduction with differential locks between axles and wheels | |
| Tyre | 12.00R20 | |
| Electrical system | Battery | 2X12V/165Ah |
| Alternator | 28V-1500kw | |
| Starter | 7.5Kw/24V | |
1. What’s your MOQ?
One unit
2. What’s your delivery time?
Within 35 days according to our production arrangements.
3. Where is your loading port?
Tianjin, Shanghai, or Qingdao Port.
4. Which kind of import documents can you supply to us for our import?
Commercial invoice, packing list, contract, B/L. and According to the buyer nation, and also some specific documents for your import, such as:
*CIQ certificate
*CNCA certificate
*GCC certificate
*SGS certificate
*Commercial Invoice Certificate, etc.
1. Dump trucks; cargo trucks (1-120ton)
2. Tractor trucks; (1-120 tons)
3.Tanker trucks,( water tanker and oil tanker)
4. Mixer trucks and concrete pump truck
5. Mine dump trucks( 30 tons off-road mine tipper, 50tons/70tons mine dump truck, 6x6 articualted dump trucks)
6. Off-road drive trucks( 4x4. 6x6 and 8x8 Trucks)
7. Garbage trucks( garbage compactor truck, suction trucks)
8. Truck mounted cranes(normal road truck crane, truck mounted crane)
9. Special trucks( wrecker trucks, military trucks...)
10.Semi trailers( container semi-trailer, low-bed semi-trailer, tanker trailer, dumper trailer...)
11.Truck spare parts
Machine series:
1.Wheel loader,Backhoe loader
2.Roller
3.Motor Grader
4.Bulldozer
5.Excavator
6.Crane(truck crane,crawler crane,truck mounted crane,self erecting crane)
7.Forklift and 45t contain reach stacker
8.Paver and so on
9. Spare parts
