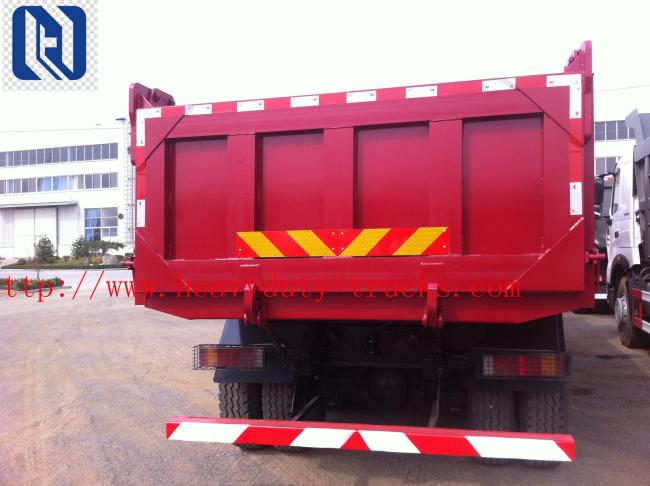

High Speed 30 Ton Dump Truck / HOWO Automatic Dump Truck 290HP/280kw
High Speed 30 Ton Dump Truck / HOWO Automatic Dump Truck 290HP/280kw
High strength/ high rigidity/ long life block: vermicular cast iron body, similar strength cast steel, similar heat dissipation potential gray iron, strong anti-thermal deformation, high cost, can be adopted in few high end engines in the world due to its core technology.
1). Good economy: high-explosive pressure and optimized injection and combustion system, ensuring its low specific oil consumption at a wide range of sppds, Minimum specific oil consumption is 186/kwh.
2). Low nose: noise reaches the international level.
3). High-integration: volume of spare parts reduced 25% compared with the similar products in the world, highly reducing the failure points.
30 Ton Dump Truck Transmission
HW series heavy yupe transmission is a new generation well-crafted product developed by SINOTRUK specially for the heavy duty truck, SINOTRUK own the independent intellectual property rights for it, with its unique structure home and aboard, its primary transmission adopts twin cuntershaft structure and auxiliary transmission adopts planetary deceleration structure, which make its bearing capacity stronger and its structure more reliable. The integrated small housing design allows legible gear and flexible gear shift.
Presently, this type of transmission is applied to be engine for the heavy duty truck which power range is 336--420 ps, it is the first choice for the domestic heavy duty truck.
30 Ton Dump Truck Drive Axle
The driving axle adveloped by SINOTRUK consist of single stage reduction axle and double stage reduction axle, which loading capacity include 5, 9, 11, 13, 16, 26 tons, matching SINOTRUK various series vehicles.
30 Ton Dump Truck Cab
1). All the bodies adopt integral steel-framed structure, hard and firm, allowing high collision resistance and external force resistance.
2). Cab manufactured by the welding line composed by international advanced robots, safety and reliable top-level quality in China.
30 Ton Dump Truck Specifications:
|
Model |
6x6 dump truck Based on using STR technology |
|
|
Cabin |
Air suspension short flat cab, Hydraulic shock absorb adjustable seat, Safety belt, Adjustable steering, Sunroof, sun cap, single bunk |
|
|
Gear box |
American technology |
Max torque:1600NM |
|
|
Model: |
HW15710C |
|
|
Speed: |
15speed, 2reverse |
|
Axle(front/rear) |
||
|
Front axle |
9T STR technology non-driving steering axle |
|
|
Tandem |
16T STR technology double reduction, hub redactor driving axle |
|
|
Clutch |
D430 diaphragm type, single dry frictional disc, hydraulic boosting |
|
|
Brake |
Service brake: Double circuit pneumatic brake |
|
|
|
Parking brake: Spring-Power drum brake |
|
|
|
Engine brake: Engine exhaust brake (EVB) |
|
|
Steering |
ZF8118, driver sit at the Left hand side, RHD is optional |
|
|
Electric Equipment |
||
|
|
Operating voltage: |
24Vnegative grounded |
|
|
Starter: |
24V,5.4KW |
|
|
Alternator |
28V,758W |
|
|
Battery voltage |
12V/135Ah, cigar lighter |
|
Frame |
Strengthen steel frame, designed according to tough road condition. |
|
|
Tyre |
10+1 spare tyre with rim |
|
|
|
12.00-20 bias tyre |
|
|
Suspension system: Strengthen heavy duty Leaf spring type |
||
|
|
Front/Rear |
10/12 |
|
Dump body: type of body : |
||
|
Inside size of Body(mm): 5170x2300x1500, 8x6mm (thickness of floor and rail of the dump body) |
||
|
Lifting type: HYVA front lifter type hydraulic system |
||
|
Overall dimension(mm): 11868x2496x3250 (Length x width x height) |
||
|
Wheelbase |
3800+1400mm |
|
|
Track: |
|
|
|
|
Front/Rear |
2036/1850 |
|
|
Approach/Departure angle |
28/30 |
|
|
Front /Rear overhang |
1525/1654 |
|
|
Max speed |
90km/h |
|
Curb weight: |
12190kg |
|
