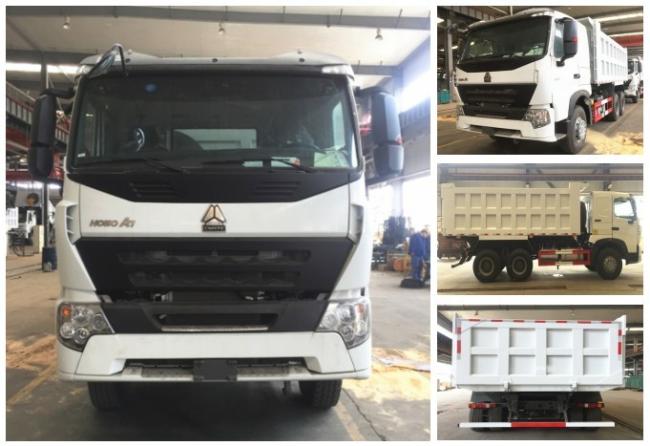

SINOTRUCK HOWO A7 6X4 Heavy Duty Dump Truck Euro 2 Emission Engine

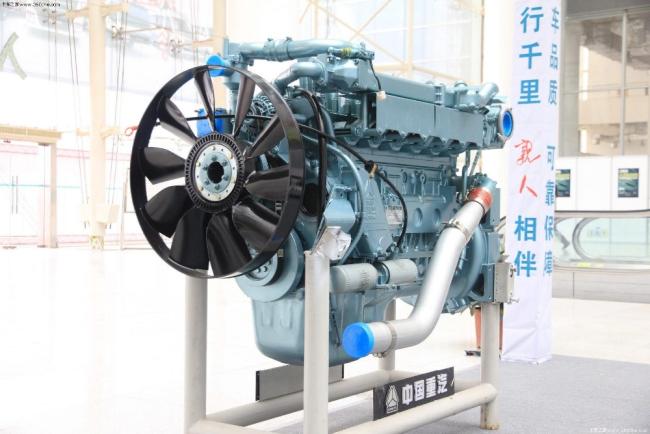

Engine Detail

Diesel: 4-stroke direct injection diesel engine;
Engine model: WD615.47, Euro II emission standard; 6-cylinder in-line with water cooling, turbo-charging and intercooling, 4 strokes;
Maximum output: 371hp (273Kw) at 2200rpm;
Maximum torque: 1470Nm at 1300-1600rpm;
Number of cylinder: 6;
Displacement: 9.726L;
Bore/Stroke: 126/130mm;

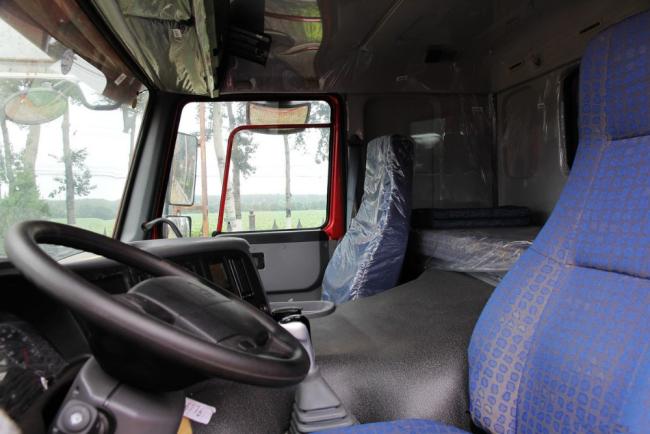

Cabin Detail

German VDO electrical control system;
HW76 model cab, with one sleeper, A/C;
Up and down, left and right sides Adjustable steering wheel;
European new type heater as a whole;
Four full floating suspension + suspension device;
Double locking structure belts;
MP3 radio

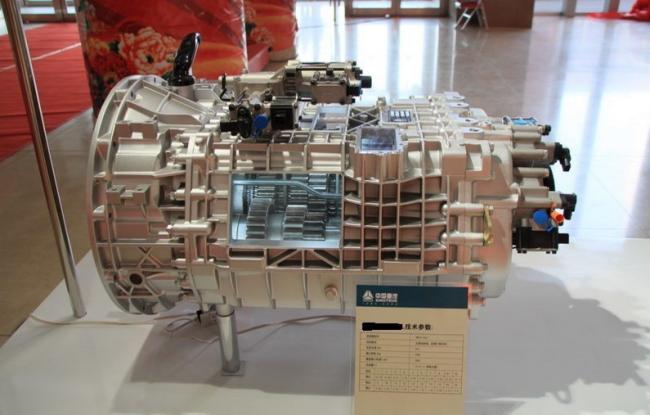

Gearbox Detail

Model: HW19710 10F/2R Manual Gearbox

Max.Input Torque: 1900NM
Optional: HW19710T/ HW19710CL ect

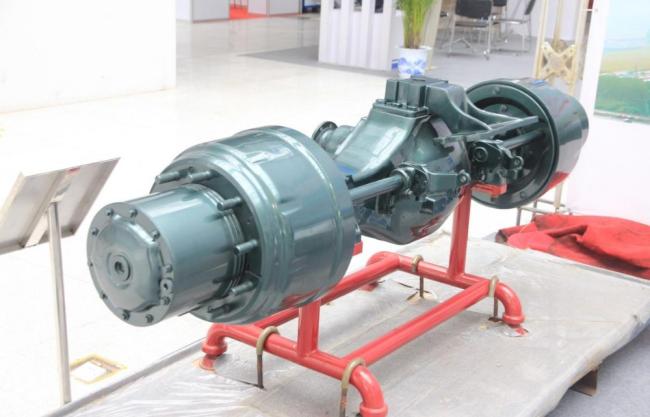

Drive Axle

Brake: Drum Ф420×185
Central single reduction + hub reduction & casting axle housing
Differential device: Inter-wheel and inter-axle
Input flange: Ф180
Lubricants (L): GL5 85W-90
Min rim size (inch): 20
Model: HC16 (Tandem axle)
Rated load (kg): 2×16000

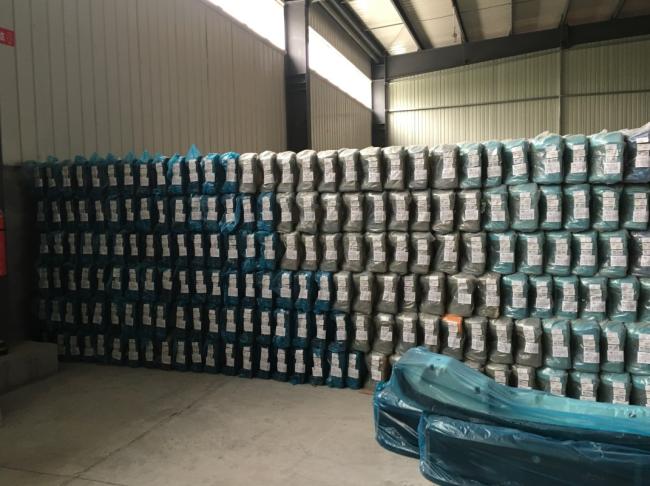

--- SERVICE SPARE PARTS.

BULK SHIP.

BULK ship date is unstable, although the price is very cheaper, but they put truck on the board, trucks will easily be eroded by the waves(unless spray wax). They need long time arrived at destination port(beside the book whole ship). This shipment term is suitable no enough budget or dont need urgently customers.

RO-RO SHIP.

RO-RO ship is very fast and safety, they usually directly go to the destination port. Usually put the truck into the cabin inside.

FRAME SHIP.

This ship is very suitable loading for 2 units tractor trucks, save much ship cost. If no ship to the destination port, the dump truck also could use this ship, low cost with fast delivery time.
