6x4 40t SINOTRUCK HOWO Dump Truck 336hp 22m3
Price:
Negotiable
MOQ:
1
Delivery Time:
Within 35 days
Brand:
CIVL
Product Description

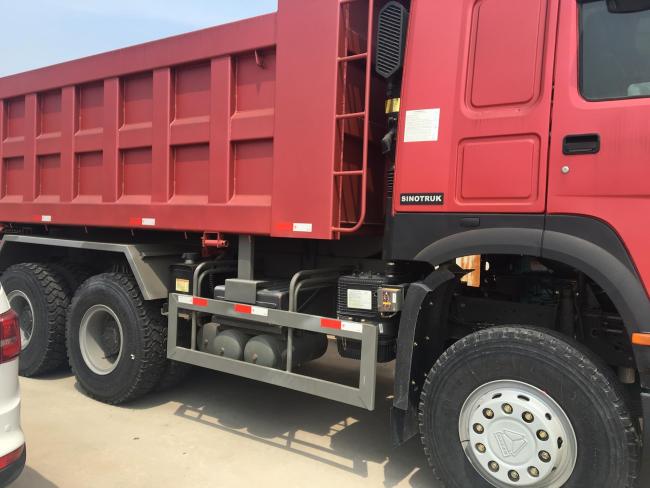

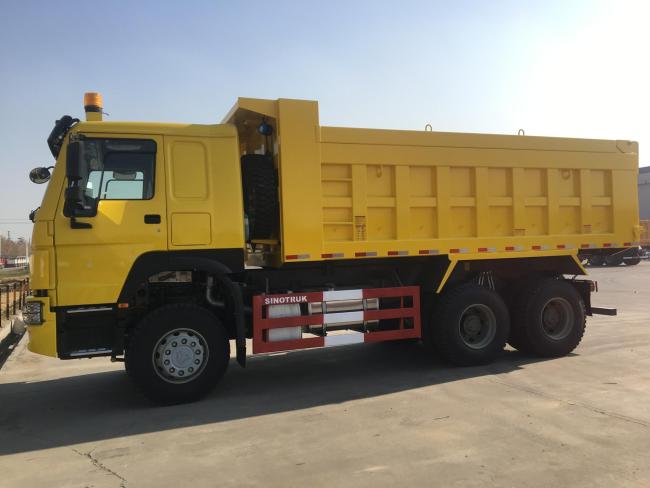

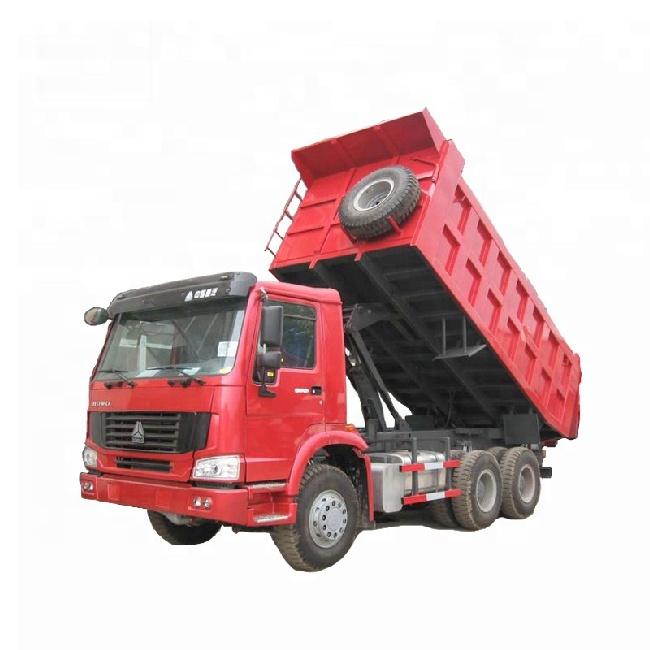

6x4 40t SINOTRUCK HOWO Dump Truck 336hp 22m3
Main Parameter
| SINOTRUK HOWO 336HP 6x4 dump truck/tipper truck | ||||
| Truck Model | ZZ3257N3447A | |||
| Cargo Body Size (LxWxH) | 5200x2300x1300 mm | |||
| Lifting Type | Ventral Lifting | |||
| Overall dimensions (LxWxH) | 7835*2496*3170 mm | |||
| Approach angle/Departure angle(°) | 19/27 | |||
| front/rear suspension (mm) | 1500/1560 | |||
| Axle base (mm) | 3425+1350 | |||
| Max speed(km/h) | 75 | |||
| Vehicle Curb weight(kg) | 12380 | |||
| Gross mass (kg) | 25000 | |||
| Engine | Model | SINOTRUK WD615.69, | ||
| 4-stroke direct injection diesel engine, | ||||
| 6-cylinder in-line with water cooling, | ||||
| turbo-charging and intercooling | ||||
| Power, max(kw/rpm) | 336 HP | |||
| Emission | Euro2 | |||
| Transmission/Gear box | Model | HW19710, 10 speeds forward ,2 reverse | ||
| Brake system | Service brake | Dual circuit compressed air brake | ||
| Parking brake | spring energy, compressed air operating on rear wheels | |||
| Auxiliary brake | Engine exhaust brake | |||
| Steering system | Model | 8118,hydraulic steering with power assistance | ||
| Front axle | HF 9,drum | |||
| Driving axle | HC16,double reduction | |||
| Tire | 12.00R20,radial tyres; optiong:12.00-20 | |||
| Clutch | φ430 diaphragm spring clutch,hydraulic control air | |||
| power assisted | ||||
| Cab | HW70, with A/C | |||
| VOLVO technology ,comfortable cab. | ||||
| 4-point support floating suspension and shock absorbers, | ||||
| up/down and front/back adjustable steering wheel, | ||||
| VDO instrument and control module,safety belt , | ||||
| air horn,outer sun visor. | ||||
| Electric system | Battery | 2x12V/165Ah | ||
| Alternator | 28V-1500 KW | |||
| Starter | 7.5 Kw/24 V | |||
| Color | red,white,yellow. Optional as per customer’s requests. | |||
