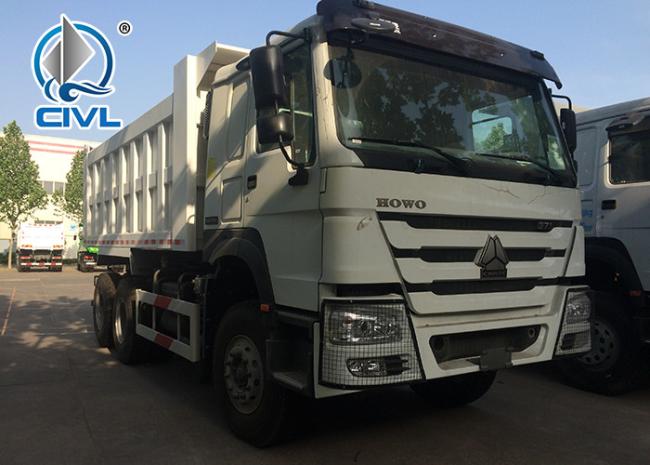

HOWO 10 Wheel 3 Axle Dump Truck , Large Capacity International Dump Truck
HOWO 10 Wheel Heavy Duty Dump Truck 6x4 ,3 Axle Dump Truck
Specifications
HOWO dump truck 6x4 - Sinotruck
HOWO TRUCK 6X4
Model: ZZ3257N3647B
| Model | ZZ3257N3647B | |
| Engine | Make:SINOTRUK | |
| Engine model: WD615.69, Euro II emission standard | ||
| 4 stroke direct injection diesel engine | ||
| 6 cylinder in-line with water cooling, turbo-charging & intercooling | ||
| Maximum output: 336hp(247Kw)at 2200 rpm according to DIN | ||
| Maximum torque: 1350Nm at 1100~1600 rpm | ||
| Bore: 126mm; Stroke: 130mm; | ||
| Displacement: 9.726L; Compression ratio:17:1 | ||
| Specific fuel consumption: 195g/kWh; Engine oil filling quantity: 23L | ||
| Cooling system filling quantity (long-term filling): 40L | ||
| Thermostat opening temperature: 80oC | ||
| Twin cylinder air compressor Rigid fan | ||
| Option: Thermostat with 71oC opening begin | ||
| Clutch | Single- plate dry diaphragm spring clutch, diameter 430(B) mm, hydraulically operating with air assistance | |
| Transmission | Transmission, model HW15710, 10 forward and 2 reverse | |
| Ratio:14.28 10.62 7.87 5.88 4.38 3.72 2.43 1.80 1.34 1.00 13.91/3.18(R) | ||
| Option: HW19710, HW19710T | ||
| Propeller Shaft | Double universal joint propeller shaft with gear-shaped coupling flange | |
| Front Axle | Steering with double T-cross section | |
| Rear Axles | Casted axle housing, central single reduction with planetary wheel reduction (hub reduction) and differential locks between wheels and axles | |
| Ratio: 5.73 Option: 4.80 5.45 4.77 6.5 | ||

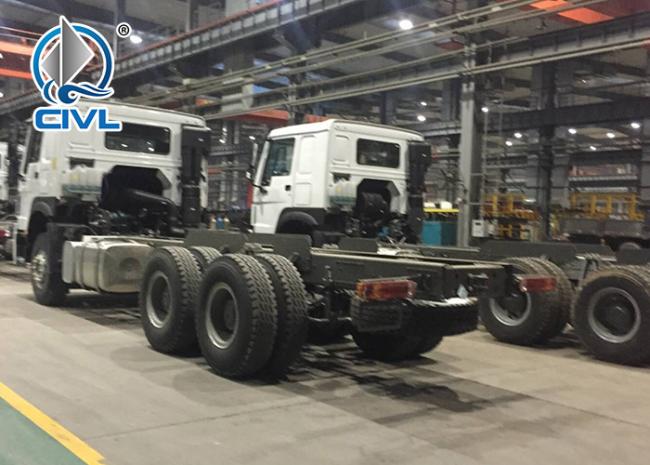

| Chassis | Frame: U-profile parallel ladder type with section of 300×80×8 mm, all cold riveted cross members and reinforced subframe | |
| Front suspension: 10 semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer | ||
| Rear suspension: 12 semi-elliptic leaf springs with bogie spring and stabilizer | ||
| With one spare wheel | ||
| Fuel tank: with 300 L fuel tank with locking fuel cap | ||
| Steering | ZF8098 , hydraulic steering with power assistance | |
| Ratio:22.2-26.2:1 | ||
| Brakes | Service brake: dual circuit compressed air brake | |
| Parking Brake(emergency brake): spring energy, compressed air operating on rear wheels | ||
| Auxiliary brake: engine exhaust brake | ||
| Option: ABS | ||
| Wheel & Types | Rims: 8.5-20, 10 hole-steel | |
| Types 12.00R20 tube | ||
| Option: 11.00-20 tube, 12.00-20 tube 315/80R22.5 | ||
| Driver’s cab | Long cab, all steel forward control, 55o hydraulically tiltable to the front,2-arm windscreen wiper system with 3 speeds, laminate windscreen, with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, heating and ventilation system, with stereo radio/cassette recorder, sun visor, and adjustable steering wheel, air horn, single berth with 4-point support fully floating suspension and shock absorber with transverse stabilizer,safety belt, air conditioner | |
| Electrics | Operating voltage:24V, negative grounded; Starter: 24V, 5.4KW | |
| Alternator: 28V, 1540W; Batteries: 2×12, 165Ah | ||
| Cigar-lighter, horn, headlamp, fog light, reverse lamp | ||
| Dimensions (mm) | Wheel base | 3625+1350 |
| Front wheel track | 2022 | |
| Rear wheel track | 1830 | |
| Front overhang | 1500 | |
| Rear overhang | 1739 | |
| Approach angle(o) | 19 | |
| Departure angle(o) | 26 | |
| Overall Dimension | 8214×2496×3386(mm) | |
| Body size | 5400×2300×1400 (mm) | |
| Weight (kg) |
Permissible loading capacity on chassis | 12650 |
| Dead weight | 12220 | |
| Gross vehicle weight | 25000 | |
| Front axle loading capacity | 7000 | |
| Rear axle loading capacity | 9000×2 | |
| Performance | Maximum driving speed(km/h) | 75 |
| Maximum gradeablility (%) | 35 | |
| Minimum ground clearance(mm) | 314 | |
| Minimum turning circle(m) | 18 | |
| Fuel consumption(L/100km) | 31 | |
