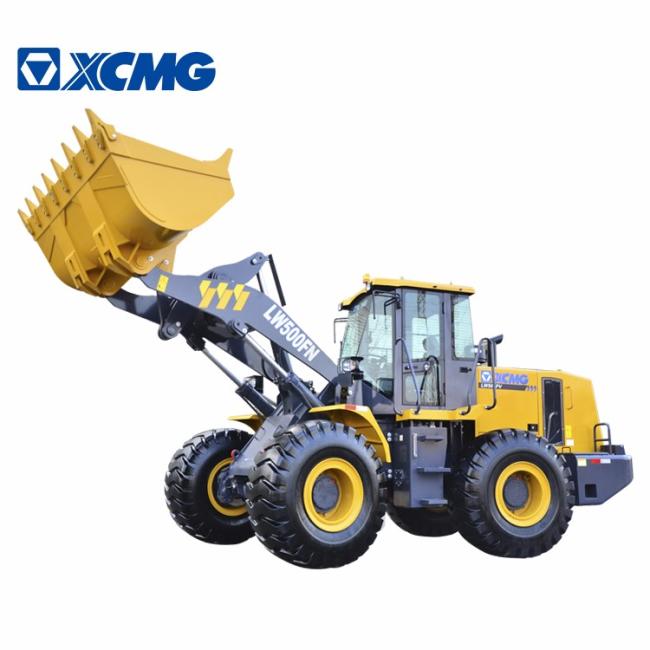

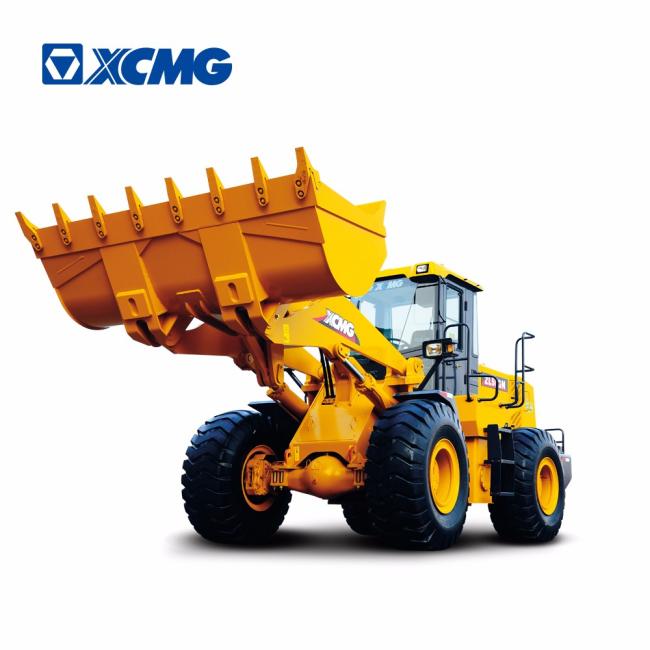

XCMG Articulated Wheel Loader / Medium Wheel Loader Color Can Optional
XCMG lw500f 5t wheel loader for sale.
Main parameters
Rated load:5 ton
Bucket capacity : 2.5-4.5 m3
Operating weight:16.9-17 ton
Main configuration
* WEICHAI WD10G220E21 engine 162kW
* Dry drive axle
* Planetary gearbox
Optional parts:
Air conditioner/ grasping grass pliers / Sliding fork / Standard bucket/ Side dumping

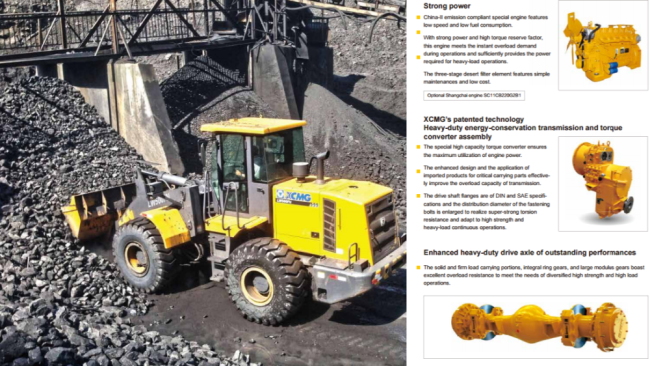

1,High torque and high efficiency drive chain features reasonable matching.
2,The 170kN traction force and ≥3.5m high dumping capacity handle the severe conditions with ease.
3,This engine meets the instant overload demand during operations and sufficiently provides the power required for heavy-load operations.
4,The air-assisted hydraulic four-wheel caliper brakes feature stable braking and high safety and reliability.
5,The easy and convenient daily maintenance ensure that the machine is under the best ready status at all times.
|
Description
|
Unit
|
Parameter value
|
|
Rated operating load
|
kg
|
5000
|
|
Bucket capacity
|
m³
|
2~4.5
|
|
Machine weight
|
kg
|
16900
|
|
Dump clearance at maximum lift
|
mm
|
3150~3560
|
|
Wheel base
|
mm
|
2960
|
|
Tread
|
mm
|
2250
|
|
Height of hinge at maximum lift height
|
mm
|
4112
|
|
Working height(fully lifted)
|
mm
|
5510
|
|
Max.breakout force
|
kN
|
170
|
|
Hydraulic cycle time-raise
|
s
|
≤6
|
|
Total hydraulic cycle time
|
s
|
≤10.5
|
|
Min. turning radius over tyres
|
mm
|
5950
|
|
Articulation angle
|
°
|
35
|
|
Gradeability
|
°
|
28
|
|
Tyre size
|
|
23.5-25-16PR
|
|
Overall machine dimension L×W×H
|
mm
|
7910×3016×3515
|
The ≥17.4t traction force and ≥20.5t breakout force, conquer all kinds of harsh working conditions. adapt to various narrow working sites.
The 160kN traction force and ≥3.5m high dumping capacity handle the severe conditions with ease.

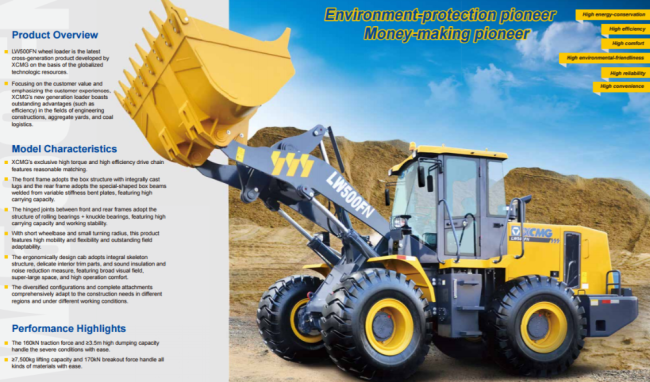

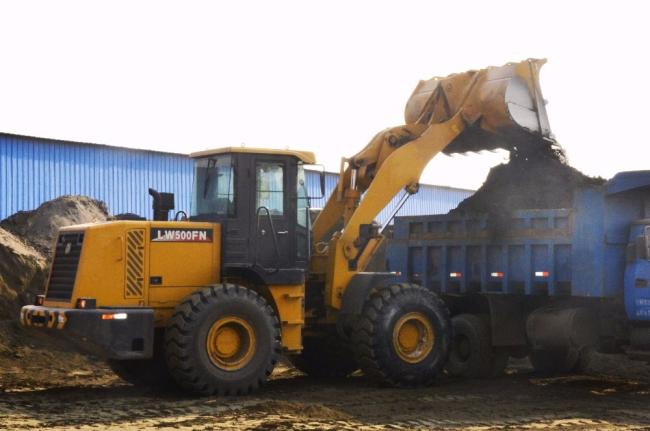

5 ton LW500FN hydraulic front end wheel loader .This engine meets the instant overload demand during operations and sufficiently provides the power required for heavy-load operations.
3 ton LW300KN hydraulic front end wheel loader.
LW300KN is the popular XCMG loader. The machine features high efficiency, strong power, long service life and comfortability, and is applicable to various conditions.

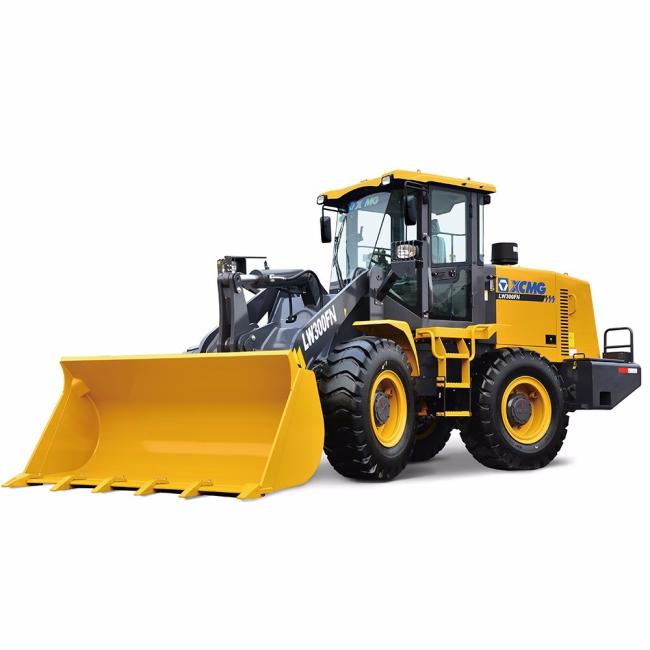

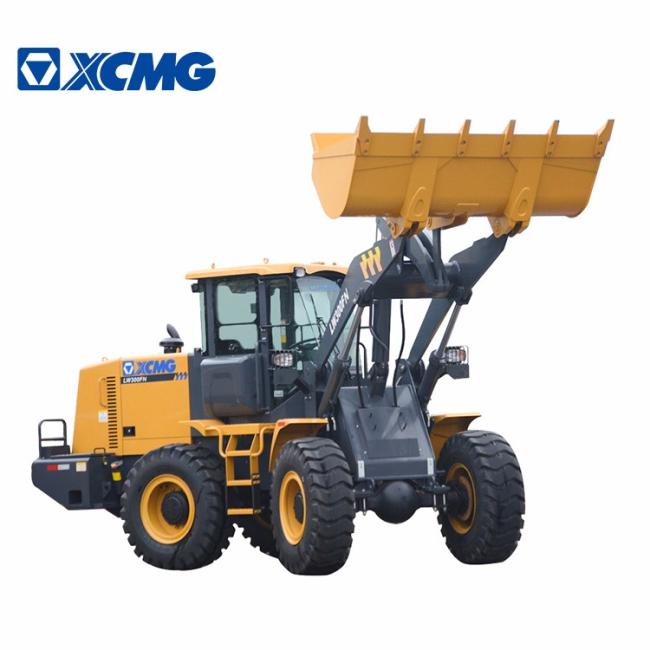

3 ton LW300FN hydraulic front end wheel loader.
The 2600mm wheelbase features high mobility and flexibility and is applicable to all kinds of working sites.China-II emission compliance, high performance, and low fuel consumption.

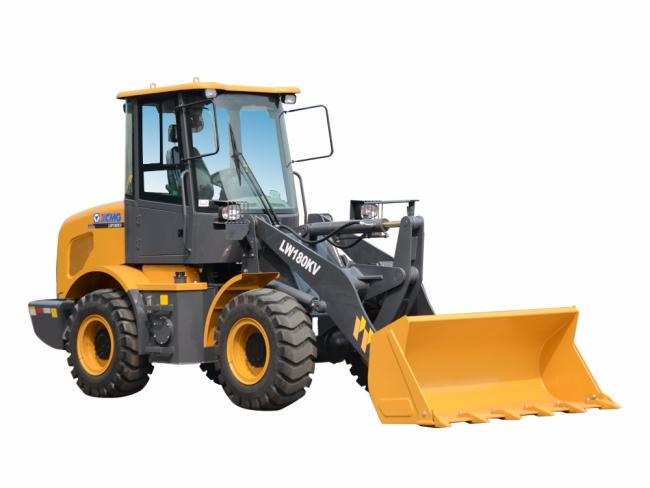

1 ton LW180K mini hydraulic front end wheel loader.
The extended wheelbase (2,300mm) design applied adapts to diversified super-heavy working conditions, with the stability leading the industry.
>>>>> More Choices

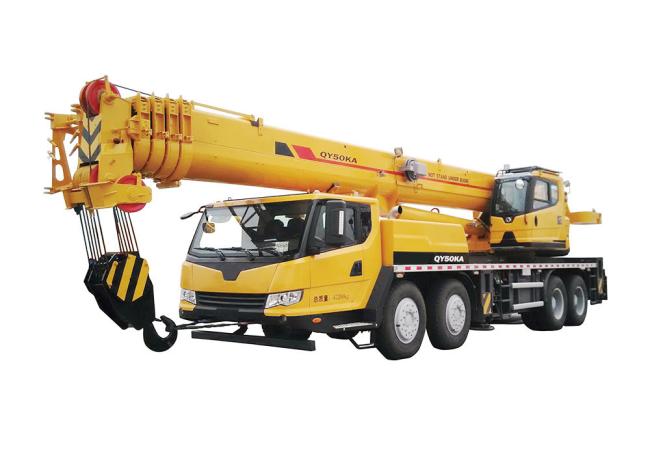

50ton qy50ka hydraulic telescopic boom truck crane.
Leading lifting performance and traveling performance.mature and reliable double pump confluence technology, highest hoisting, elevating and telescoping efficiency in the industry.

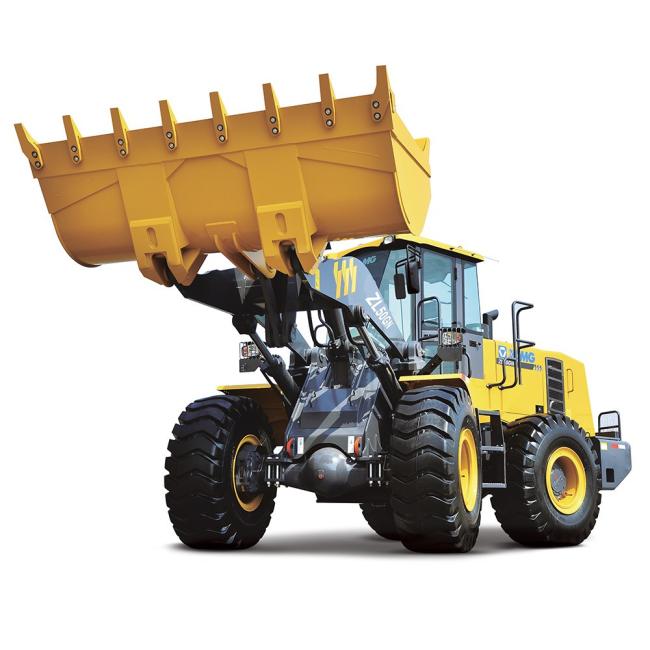

5 ton front end loader ZL50GN wheel loader.
High torque and high efficiency drive chain features reasonable matching.the 160kN traction force and ≥3.5m high dumping capacity handle the severe conditions with ease.

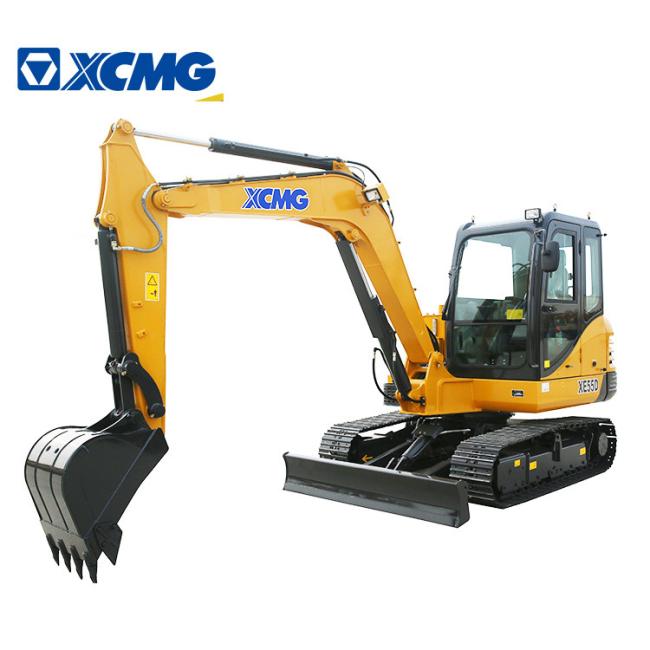

5 ton XE55D Mini hydraulic Crawler Excavator.
The domestic leading hydraulic system distribution technology features high energy-saving and efficiency.the highest breakout force on the loading end is leading the industry by 15%~20% compared with like models.

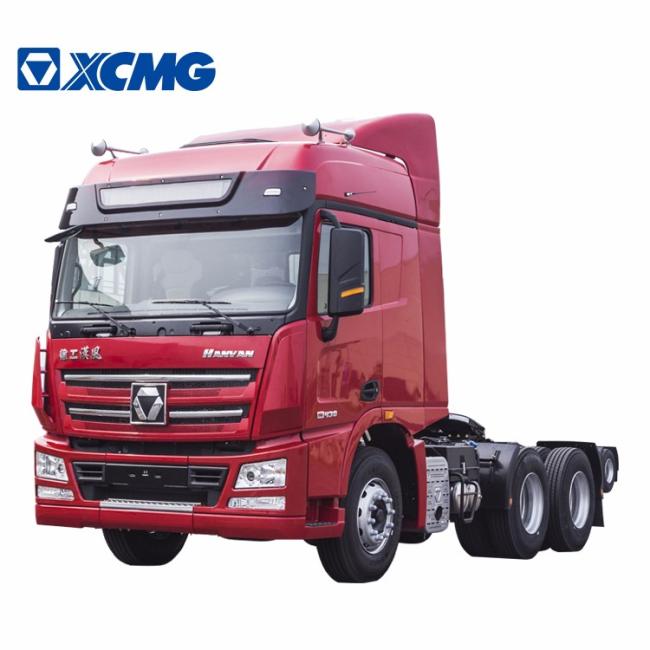

430HP 6x4 tractor truck NXG4250D3WC .
Saving oil, high efficiency (suitable for various working conditions, more efficient under super power), and environmental protection (low fuel consumption, carbon emission reduction, meeting euro V and VI emission standards.

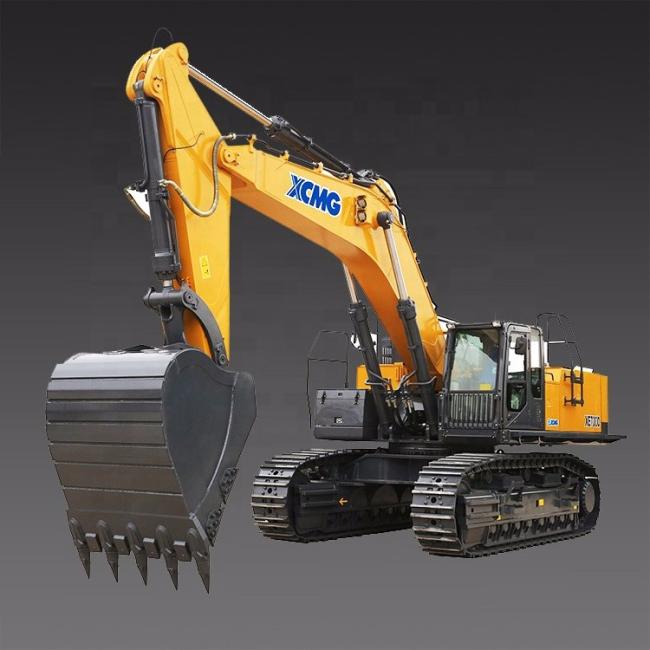

70 ton crawler mining excavator XE700C .
XE700C boasts high-end configurations, high efficiency, low fuel consumption, low noise and high reliability, able to serve mine construction as ideal operation equipment.

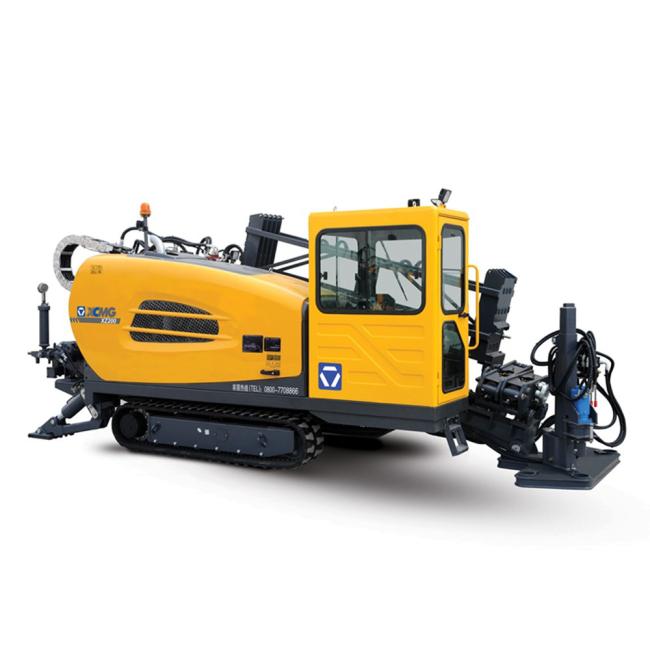

xz200 Horizontal Directional Drill (HDD).
