Excavator And Backhoe Compact Wheel Loader With Highe Breakout Force
Price:
Negotiable
MOQ:
1
Delivery Time:
Within 35 days
Brand:
XCMG
Product Description

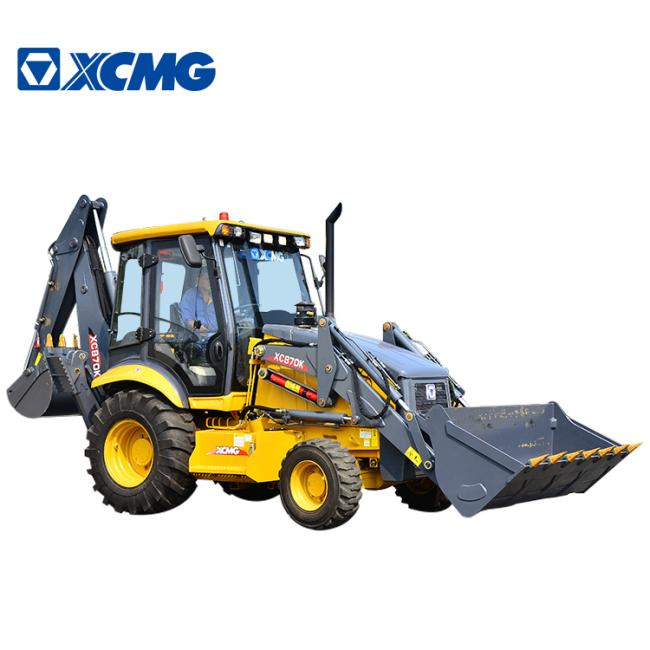

XCMG XC870K Backhoe Loader
1,The overall layout and the axle load distribution are more reasonable to achieve better traveling stability and the maximum traveling speed is up to 40km/h to realize faster site transfer speed.
2,The domestic leading hydraulic system distribution technology features high energy-saving and efficiency.
3,The highest breakout force on the loading end is leading the industry by 15%~20% compared with like models.
4,The advanced structure and hinge points on the digging end and the industry’s largest rotating angle of the bucket ensure strong soil holding capacity.
| Description | Unit | Parameter value | |
| Chassis type | integrated | ||
| Drive style | 4 drive/2 drive | ||
| Digging working device | middle | ||
| Outline dimensions(L×W×H) | mm | 7440×2350×3450 | |
| Total weight | kg | 7600 | |
| Max. travel speed | km/h | ≥40 | |
| Wheelbase | mm | 2180 | |
| Engine | Power | kW | 82(Cummins) 74(Cummins) 74.9(Deutz dalian) 70(weichai ) |
| Supplier | tier 3 tier 2 tier 3 tier 2 | ||
| Loading device | Bucket capacity | m³ | 1 |
| Rated load | kg | 2500 | |
| Max. breakout | kN | 66 | |
| Max. discharge height | mm | 2770 | |
| Max. discharge distance | mm | 755 | |
| System pressure | Mpa | 24 | |
| Digging device | Bucket capacity | m³ | 0.3 |
| Max. digging radius | mm | 5460 | |
| Max. digging depth | mm | 4425 | |
| Max. digging force | kN | 63 | |
| System pressure | Mpa | 24 | |

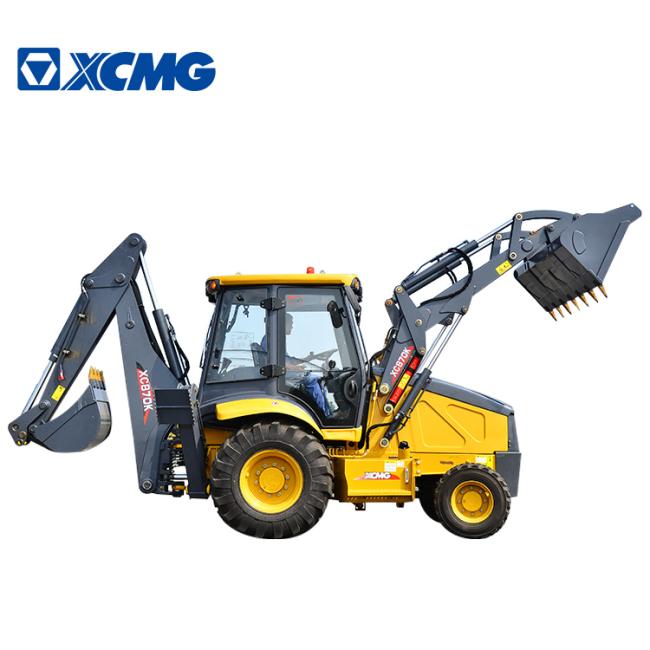

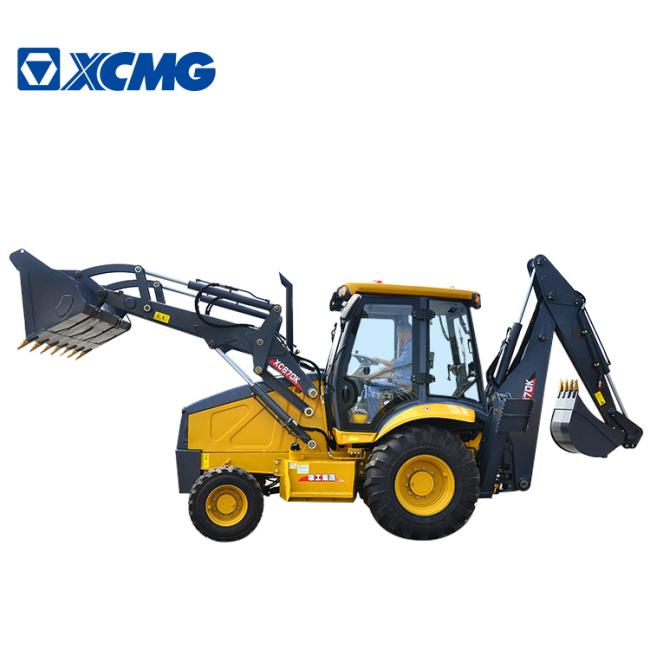

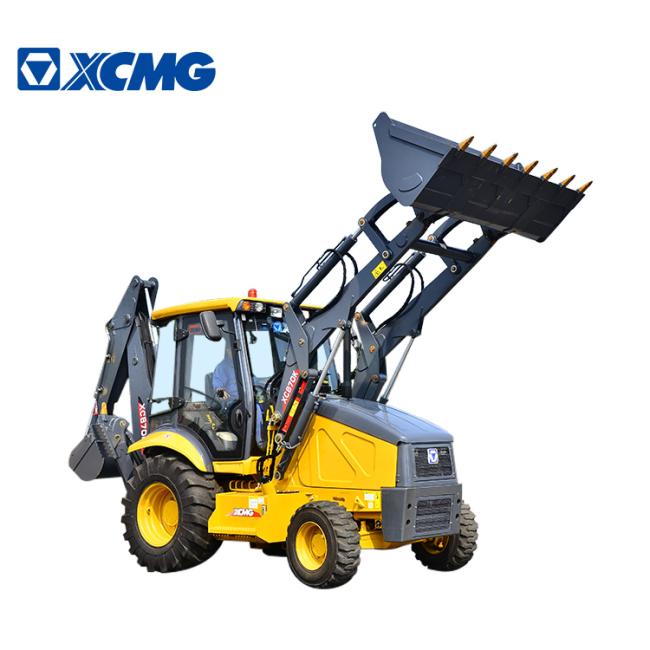

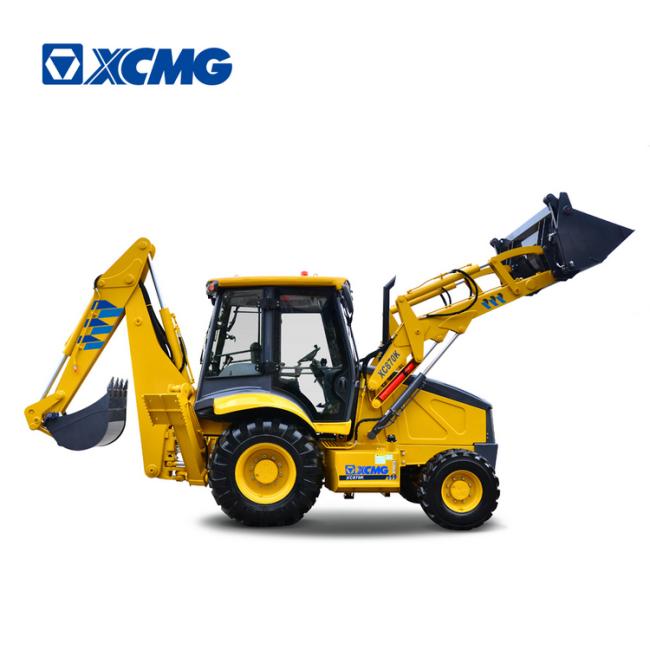

Picture for you reference
