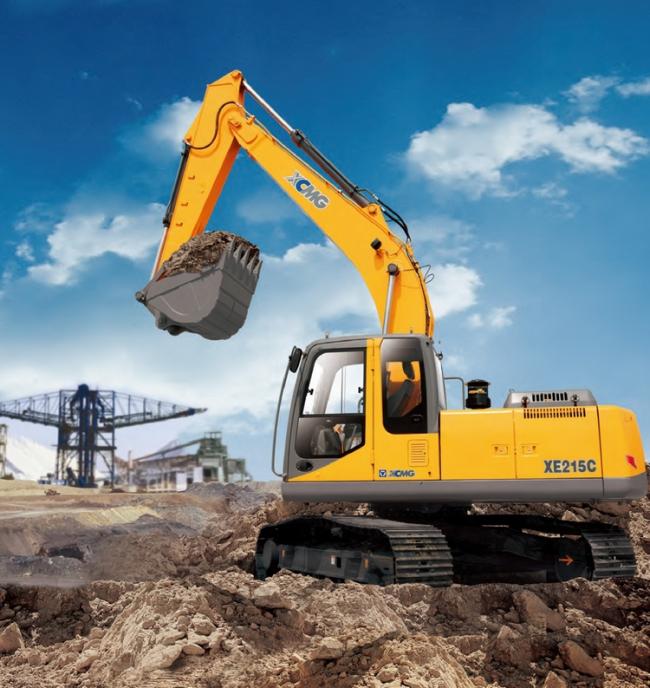

XCMG XE215C Hydraulic Crawler Excavator 21.5 Ton Electronic Fuel Injection

Price Negotiable

Price: Negotiable

MOQ: 1

Delivery Time: Within 35 days

Brand: CIVL

Product Description

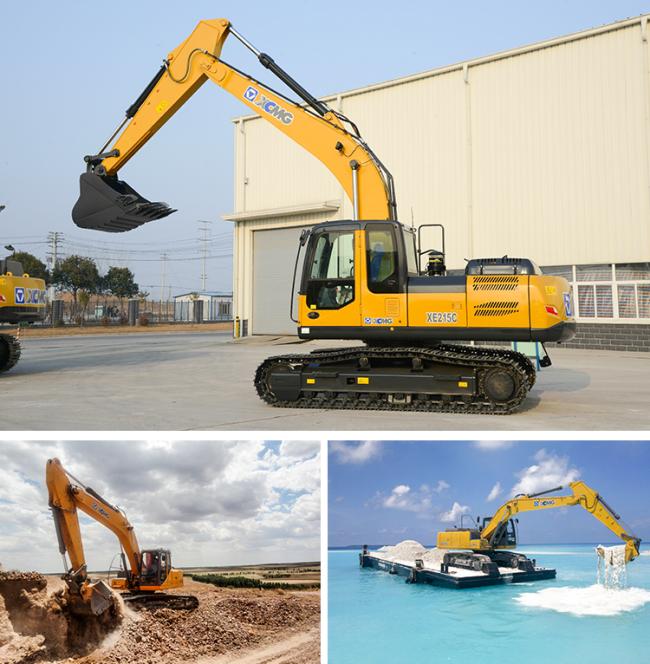

XCMG XE215C 21.5ton hydraulic Crawler Excavator hydraulic price for sale

	Model	Parameters

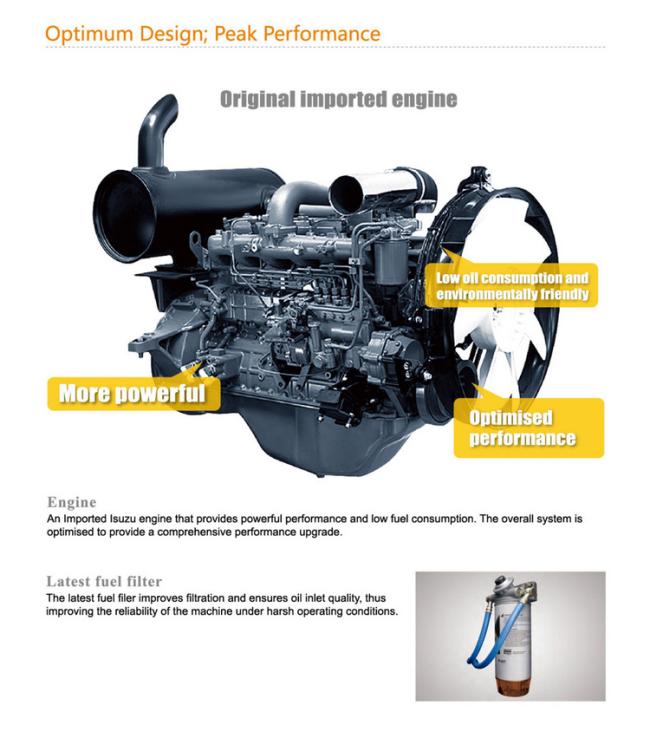

Engine	Model	ISUZU CC-6BG1TRP
	Equipped	Electronic fuel injection
		Four strokes
		Water cooling
		Turbo-charging
		Air to air intercooler
	No. of cylinders	6
	Output power	128.5/2100 kW/rpm
	Torque/speed	637/1800 N.m/rpm
	Displacement	6.494 L
Operation Weight		21900 kg
Bucket Capacity		0.9—1.0 m ³
Main performance	Travel speed(H/L)	5.5/3.3 km/h
	Rotating speed	13.3 r/min
	Gradeability	≤35°
	Ground pressure	47.2 kPa
	Bucket digging force	149 kN
	Arm digging force	111 kN
	Maximum traction	184 kN

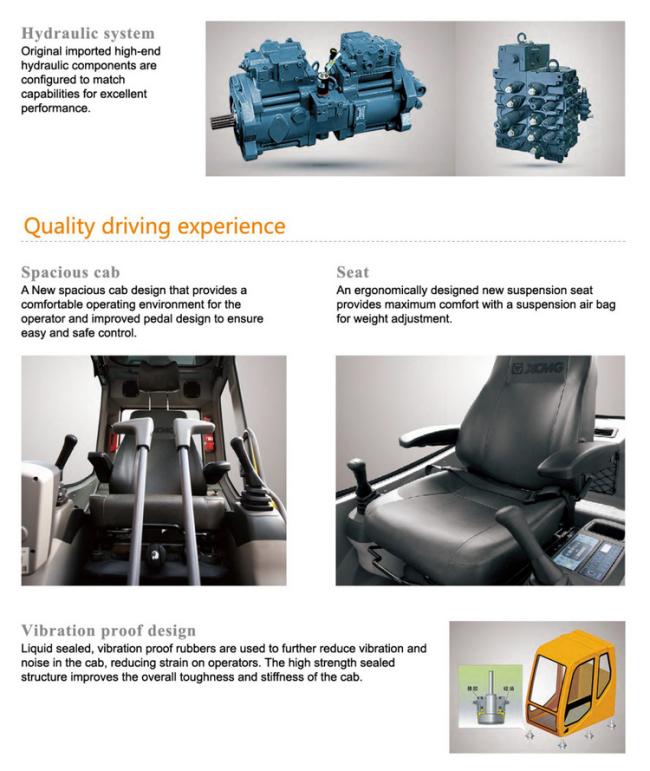

Hydraulic system	Main pump	2 plunger pumps
	Rated flow of main pump	2×209 L/min
	Pressure of prime valve	34.3/37.0 Mpa
	Pressure of travel system	34.3 Mpa
	Pressure of swing system	28 Mpa
	Pressure of pilot system	3.9 Mpa
Oil capacity	Fuel tank capacity	400 L
	Hydraulic tank capacity	220 L
	Engine oil capacity	25 L
Appearance size	Overall dimensions(LWH)	9625×2990×3100 mm
	Width of platform	2830 mm
	Length of crawler	4225 mm
	Overall width of chassis	2990 mm
	Width of chassis	600 mm
	Track length on ground	3462 mm
	Crawler gauge	2390 mm
	Clearance under counterweight	1050 mm
	Min. ground clearance	485 mm
	Min. tail swing radius	2890 mm
Working scope	Max. digging height	9620 mm
	Max. dumping height	6780 mm
	Max. digging depth	6680 mm
	Excavation depth of 8 feet level	6500 mm
	Max. vertical wall digging depth	5715 mm
	Max. digging reach	9940 mm
	Min. swing radius	3530 mm
Standard	Boom length	1680 mm
	Arm length	2910 mm
	Bucket Capacity	1.0 m ³
Optional	Arm length	5680 mm
	Bucket Capacity	1.0 Earth working bucket
	Bucket Capacity	0.9 Rock bucket
