SINOTRUK Front Lifting 50 Ton 3 Axle Semi Trailer Dump Truck
SINOTRUK Side Dump Semi Trailer Trailer With Front Lifting 50 Ton 3 Axle Semi Trailer Dump Truck
The side dump semi-trailer is suitable for the transportation of bulk goods such as coal, ore and building materials.

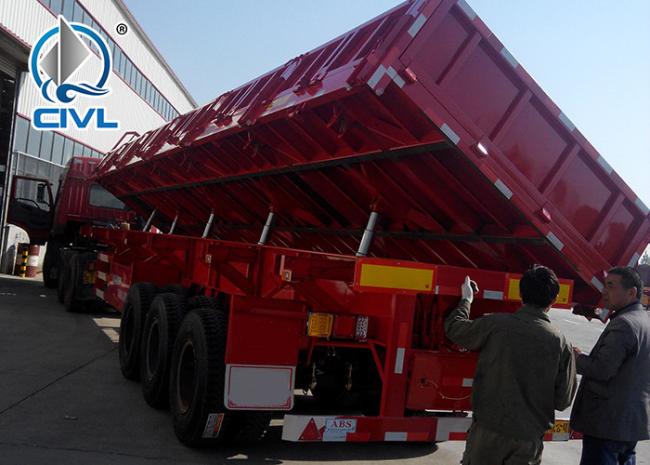

1. The carriage adopts side turning and back turning self unloading mode, which can effectively transport bulk bulk goods by the loader.
2. The frame and the longitudinal beam of the carriage are welded with high-quality manganese plates. There are dustpan and rectangle containers. It has high strength, strong lifting force, good rigidity, toughness, strong bearing capacity and no permanent deformation.
3. Excellent technology: the main parts are processed by advanced equipment, the longitudinal beam is welded by full-automatic submerged arc welding, and the assembly machine is used for precise assembly of wheel axle and steel plate spring.
Specification:
| SIDE DUMP SEMI TRAILER | |||||||||||||
| DIMENSIONS | |||||||||||||
| Tare weight | 15500kg | Payload | 40000kg | ||||||||||
| Overall length | 9968 | Overall width | 2534mm | Overall height | 3566mm | ||||||||
| SPECIFICATION | |||||||||||||
| Chassis |
Heavy duty and extra durability designed I beam;opting for high tensile steel Q345,welded by automatic submerged-Aac processes. |
||||||||||||
| Axle | Number | 3 | Brand | HJ | Capacity | 13 T | |||||||
| Suspension | Mechanical suspension | ||||||||||||
| Leaf spring | Leaf spring 12 pcs | ||||||||||||
| Floor | 8mm plate .side wall 6 mm | ||||||||||||
| Tire | 12R22.5 double star 12 pcs | ||||||||||||
| Wheel rim | 9.0 12 pcs | ||||||||||||
| Kingpin | 3.5’’ bolt-in king pin | ||||||||||||
| Landing gear | Fuwa two-speed,manual operating ,heavy duty landing gear 28 | ||||||||||||
| Cylinder | HYVA 214-7130 | ||||||||||||
| Vehicular applications | Sand and pebble and mineral transport | ||||||||||||
| Drawing | Including | ||||||||||||
| Braking system | WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks | ||||||||||||
| Paiting | Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint | ||||||||||||
| Accessories | One standard tool box | ||||||||||||

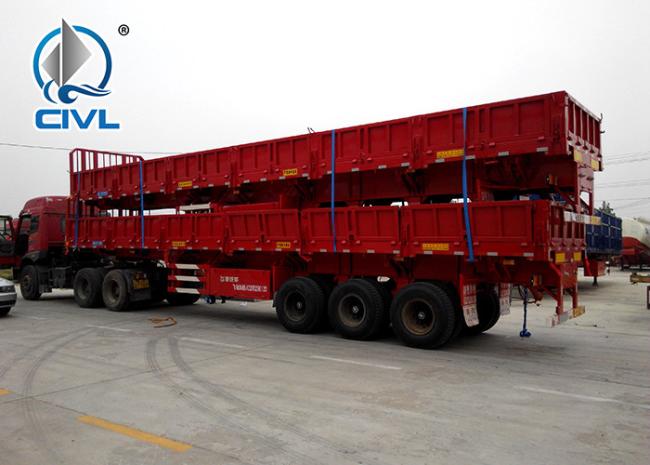

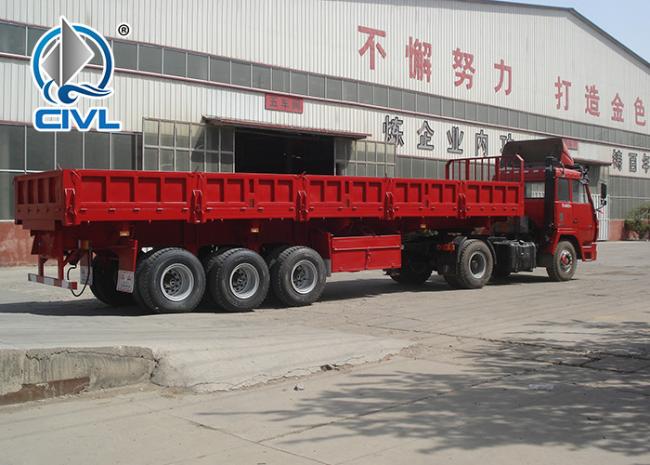

some picture for you reference
