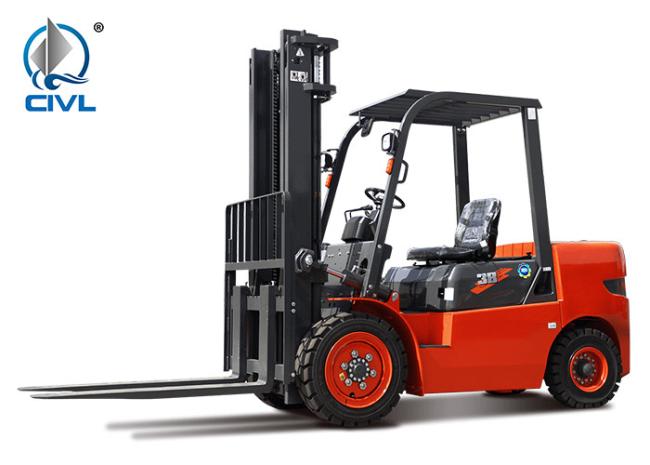

3.8Ton / 36.8kw Diesel Engine Forklift Truck 3000mm Lift Height
2 Ton Diesel Internal Combustion Forklift 36.8kw Engine New Forklift Truck 3000mm Lift Height
Description:
Forklifts are material handling machinery.
It refers to various wheeled handling vehicles for loading and unloading, stacking, short-distance transportation and heavy object handling operations for palletized goods.
Widely used in stations, ports, airports, factories, warehouses and other sectors of the national economy,
It is an efficient equipment for mechanized loading and unloading, stacking and short-distance transportation.
Features:
3.8 ton forklift
·The new dynamic counterweight design technology makes the center of gravity move back and improves safety.
· Euro III emissions.
·Low noise, energy saving, environmental protection
·The design of the joystick position makes driving more comfortable.
·Large angle steering wheel adjustment to meet different driving needs.
·Intelligent digital instruments and the latest voice prompts.
·The overall design of the frame enhances the strength of the frame and prolongs the service life of the whole machine.
Specification:
| model | Unit | CIVL380 |
| Power form | diesel | |
| Rated load | kg | 3800 |
| J Load center distance | mm | 500 |
| H1 Maximum lift height | mm | 3000 |
| H3 free lift height | mm | 130 |
| Gantry inclination | deg | Before 6 after 12 |
| Maximum travel speed (full load / no load) | Km/h | 19.5 |
| Maximum lifting speed (no load/full load) | mm/s | 410/380 |
| Maximum grade (no load/full load) | % | 20 |
| self-weight | kg | 4940 |
| model | Quanchai C03-300 | |
| rated power | kW/r | 36.8/2500 |
| Rated torque | N·m/r | 174 |
| Number of cylinders | 4 |
