6X4 Haul Semi Trailer Truck Auman Semi Tractor Towing Head 309kw 420hp Engine
Price:
Negotiable
MOQ:
2
Delivery Time:
Within 30 days
Brand:
CIVL
Product Description
Foton Tractor Truck/ 6X4 Haul Truck Semi-Trailer Truck AumanSemi-Tractor /Towing Head 309kw/420hp Engine Dolly Car
Description:
- Appearance:
the whole size 6950*2550*3840mm, curve sense ,flow line sense, LED light, warning light
- Power:
16-speed gearbox, smooth operation, maximum torque up to 2550KN, maximum speed up to 95 km/h, engine over 400 HP
- Cab:
The control seat can be adjusted to a large extent, the sound insulation effect is ideal,
and the conversation can be heard clearly in the car at high speed
- Fuel consumption:
30.63L / 100 kilometers
Specifications:
| Model | BJ4253SMFKB-1 | |||
| Drive style | 6×4 | |||
| Steering wheel position | Left hand | |||
| Vehicle design parameters | Vehicle dimension(mm) | 7000×2495×2960 | ||
| Wheelbase(mm) | 3300+1350 | |||
| Wheelbase Front / Rear (mm) | 2005/1800 | |||
| Maximum speed (km/h) | 92(4.8)/98(4.38)/76(5.73) | |||
| Maximum climbing capacity, % (full load) | 29(4.8)/26(4.38)/35(5.73) | |||
| Kerb weight (kg) | 9500 | |||
| Maximum total design mass (kg) | 25000 | |||
| Carrying number | 3 | |||
| Basic parameters | Engine | Model | WD618.42Q | |
| Fuel | Diesel | |||
| Power (kw/PS/rpm) [kw/ps(r/min)] | 309/420(2200) | |||
| Max torque (Nm/rpm) [N·m(r/min)] | 1600(1300-1600) | |||
| Displacement (ML)(L) | 11.596 | |||
| Emission | EuroⅡ | |||
| Clutch | Clutch Type | φ430 pull type | ||
| Operating style | Hydraulic gas boost | |||
| Gearbox | Model | 12JSD180TA(Iron) | ||
| Operating style | Mechanical | |||
| Front axle | Type | Drum | ||
| Rated load(T) | 6.5t /65t | |||
| Rear axle | Type | STR/ | ||
| Reduction ratio | 4.8 | |||
| Rated load(T) | 13T | |||
| Suspension | Front suspension前 | Type | Longitudinal leaf spring + cylinder shock absorber + lateral stabilizer bar | |
| leaf spring number | 9 | |||
| Rear suspension后 | Type | Longitudinal leaf spring + balance suspension | ||
| leaf spring number | 12 | |||
| Steering Gear | Steering Gear Type | AM90H-S | ||
| Brake | Service brake | Double circuit pneumatic drum | ||
| Parking brake | Energy storage spring air brake | |||
| Auxiliary brake | Engine exhaust brake | |||
| Chassis | Frame specifications | 900*780,243/286×80×(8+5) | ||
| Steering machine | AM90H-S | |||
| Fuel tank volume / material | 600L+300L aluminum alloy 600L+300L | |||
| Tires and rims | 13R22.5 18PR | |||
| Main basic configuration | Body type | Flat top | ||
| CAB mounting type | Full-floating spring | |||
| CAB lift type | Manual | |||
| Body combination (seat, door, window, rearview mirror) | Manual doors and windows + airbag seat (standard) + manual rearview mirror | |||
| Entertainment System (including radar) | MP3 + Radio + USB + No Radar | |||
| Air Conditioning | Manual air conditioner | |||
| Air Filter type | Desert | |||
| Saddle | 90# | |||
Applications:
It’s suitable for towing all kinds semi trailer which is used in Logistics business, construction site and
Mining area .

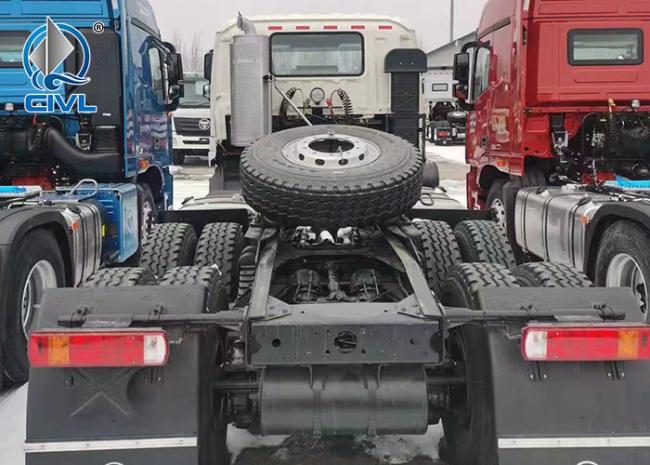

Photos:
