Beer Bottle Carbonated Drink Machine Counter Pressure Bottle Filler Plant
Product Application
carbonated drink filling machine

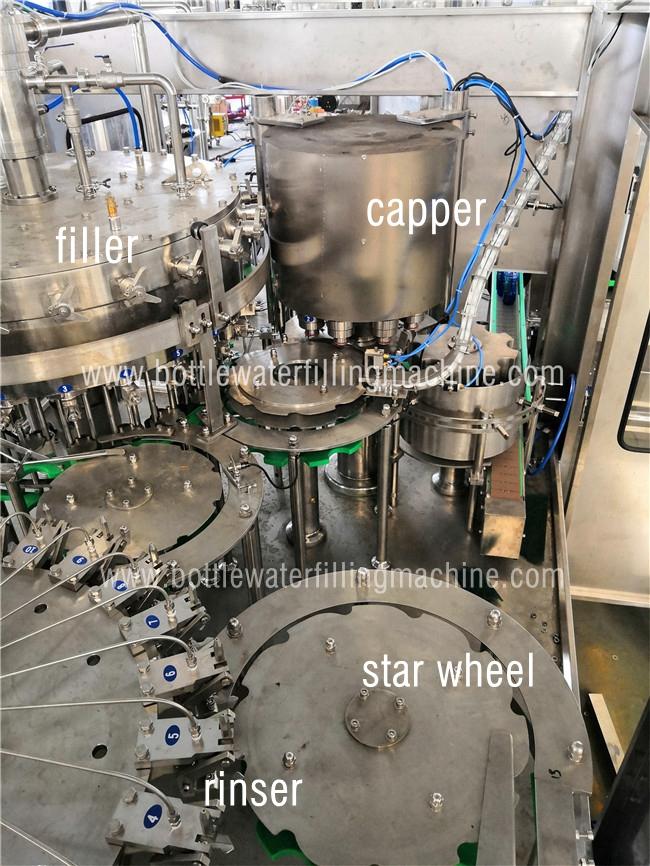

1). This equipment is automatic washing filling capping three in one machine. It is of many advantages, such as compact structure, perfect control system and easy to be operated. Advanced touch screen and PLC control system makes man-machine communication true.
2). Washing part is mainly composed of washing pump, bottle clamps, water distributor, up turn-plate, guide rail, protection cover, spraying device, defrosting tray, rinse water take and rinse water refluxing tank.
3). Filling Part is mainly composed of filling barrel, filling valves (normal temperature and normal pressure filling), filling pump, bottle hanging device / bottle pedestals, elevating device, liquid indicator, pressure gauge, vacuum pump, etc.
4). Capping part is mainly composed of capping heads, cap loader (separated), cap unscrambler, cap drop rail, pressure regular, cylinder and also we need an air compressor as the auxiliary external equipment.
5). Main electrical components are all imported from world famous brands to guarantee excellent performance of the whole machine.
Technical parameter
| Model | DGCF24-24-8 |
| Production capacity(500ml) | 6000-8000 |
| Filling material | Carbonated soft drink, soda water, energy drink, cola, sparkling water |
| Filling precision | ≤±5mm(liquid level) |
| Filling pressure(MPa) | <0.4 |
| Polyester bottle standard(mm) | Bottle neck: 50-100 bottle height:150-320 |
| Suitable cap shape | Plastic screw cap |
| Water pressure of washing bollte(MPa) | 0.18-0.25 |
| Water consumption for water bottle(kg/h) | 2500 |
| Spraying positon | 6 |
| Dripping bottle position | 3.5 |
| Gas source pressure | 0.4 |
| Gas consumption (m3/min) | 0.4 |
|
Total power (kw) |
6.57 |
| Total weight | 4000 |
|
Dimension(L*W*H) mm |
2750*2180*2200 |

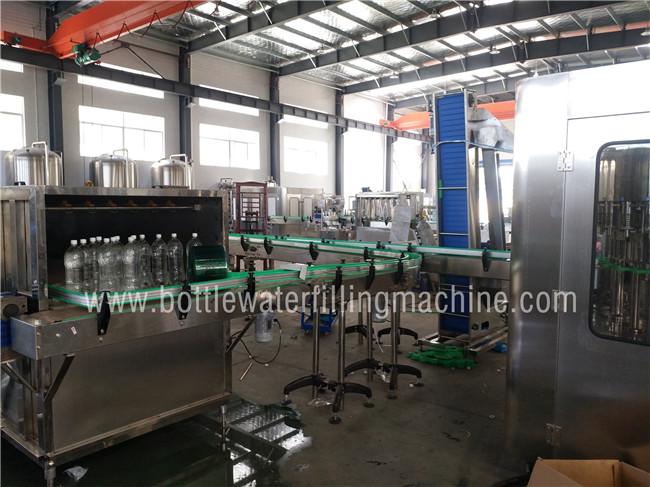

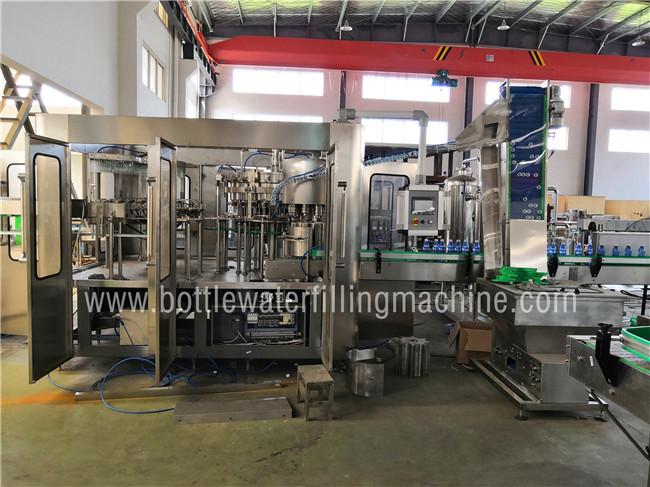

Machine picture
Pls click the picture to watch the video
Our service
The sample service
1.We can send you the video of the running machine.
2.You are welcome to come to visit our company,and see the machine running in our factory,we can pick you up from the station near our city.
3.If we get the permission of the customer who has brought the machines from us,we can tell you our customers' contact imformation,you can go to vist their factory.
Customized service
1.We can design the machines according your requirements(materil,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.
2. We can offer free technical support and consultation such as design your factory,draw the factory layout and so on.
3.We are certificated by many famous certificated authories
